Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT25-900-VMFIXED IND 25UH 7A 20 MOHM TH |
0 |
|
Таблицы данных |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 25 µH | ±15% | 7 A | - | Shielded | 20mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 1.010" (25.65mm) |
|
|
PT25R-680-VMFIXED IND 25UH 4.4A 35 MOHM TH |
0 |
|
Таблицы данных |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 25 µH | ±15% | 4.4 A | - | Unshielded | 35mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.650" L x 0.450" W (16.51mm x 11.43mm) | 0.790" (20.07mm) |
|

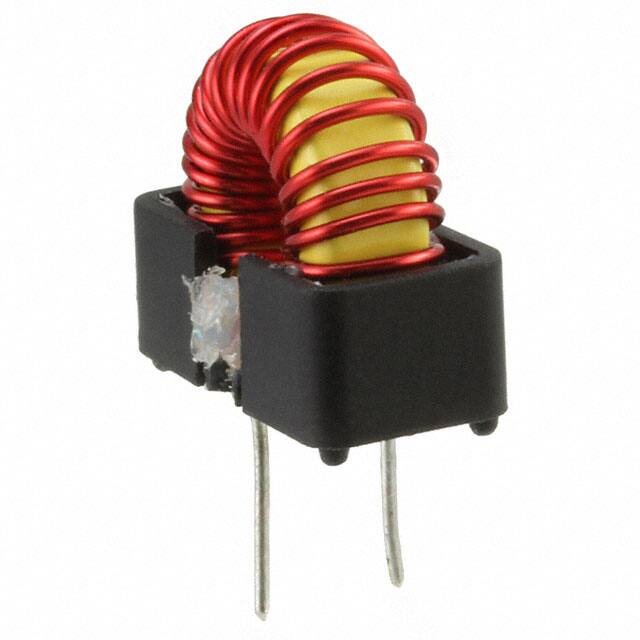

PT25R-800-VMFIXED IND 25UH 6.6A 25 MOHM TH |
0 |
|
Таблицы данных |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 25 µH | ±15% | 6.6 A | - | Unshielded | 25mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.08mm x 11.43mm) | 0.910" (23.11mm) |
|
|
PT300-1200-VMFIXED IND 300UH 3.3A 150 MOHM TH |
0 |
|
Таблицы данных |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 300 µH | ±15% | 3.3 A | - | Shielded | 150mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.250" L x 0.700" W (31.75mm x 17.78mm) | 1.330" (33.78mm) |
|
|
PT300-1500-VMFIXED IND 300UH 5.5A 100 MOHM TH |
0 |
|
Таблицы данных |
PT | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 300 µH | ±15% | 5.5 A | - | Shielded | 100mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" L x 0.800" W (38.10mm x 20.32mm) | 1.630" (41.40mm) |
|
|
PT400-1200-VMFIXED IND 400UH 2.4A 250 MOHM TH |
0 |
|
Таблицы данных |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 400 µH | ±15% | 2.4 A | - | Shielded | 250mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.250" L x 0.700" W (31.75mm x 17.78mm) | 1.330" (33.78mm) |
|
|
PT400-1500-VMFIXED IND 400UH 4.7A 180 MOHM TH |
0 |
|
Таблицы данных |
PT | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 400 µH | ±15% | 4.7 A | - | Shielded | 180mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" L x 0.800" W (38.10mm x 20.32mm) | 1.630" (41.40mm) |
|
|
PT400-1750-VMFIXED IND 400UH 6A 110 MOHM TH |
0 |
|
Таблицы данных |
PT | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 400 µH | ±15% | 6 A | - | Shielded | 110mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.750" L x 0.900" W (44.45mm x 22.86mm) | 1.880" (47.75mm) |
|
|
PT400R-1750-VMFIXED IND 400UH 6A 110 MOHM TH |
0 |
|
Таблицы данных |
PTR | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | - | 400 µH | ±15% | 6 A | - | Unshielded | 110mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.750" L x 0.900" W (44.45mm x 22.86mm) | 1.880" (47.75mm) |
|
|
PT5-800-VMFIXED IND 5UH 10.6A 10 MOHM TH |
0 |
|
Таблицы данных |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 5 µH | ±15% | 10.6 A | - | Shielded | 10mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.08mm x 11.43mm) | 0.910" (23.11mm) |
|
|
PT50-1020-VMFIXED IND 50UH 7A 25 MOHM TH |
0 |
|
Таблицы данных |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±15% | 7 A | - | Shielded | 25mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.250" L x 0.700" W (31.75mm x 17.78mm) | 1.130" (28.70mm) |
|
|
PT500-1750-VMFIXED IND 500UH 5A 160 MOHM TH |
0 |
|
Таблицы данных |
PT | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±15% | 5 A | - | Shielded | 160mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.750" L x 0.900" W (44.45mm x 22.86mm) | 1.880" (47.75mm) |
|
|
PT5R-700-VMFIXED IND 5UH 7.4A 12 MOHM TH |
0 |
|
Таблицы данных |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 5 µH | ±15% | 7.4 A | - | Unshielded | 12mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.650" L x 0.450" W (16.51mm x 11.43mm) | 0.810" (20.57mm) |
|
|
PT750-1400-VMFIXED IND 750UH 2.6A 350 MOHM TH |
0 |
|
Таблицы данных |
PT | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 750 µH | ±15% | 2.6 A | - | Shielded | 350mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.400" L x 0.800" W (35.56mm x 20.32mm) | 1.530" (38.86mm) |
|
|
PT750-1700-VMFIXED IND 750UH 3.7A 280 MOHM TH |
0 |
|
Таблицы данных |
PT | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 750 µH | ±15% | 3.7 A | - | Shielded | 280mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.700" L x 0.900" W (43.18mm x 22.86mm) | 1.830" (46.48mm) |
|
|
PT75R-980-VMFIXED IND 75UH 5.2A 40 MOHM TH |
0 |
|
Таблицы данных |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 75 µH | ±15% | 5.2 A | - | Unshielded | 40mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 0.950" L x 0.600" W (24.13mm x 15.24mm) | 1.010" (25.65mm) |
|
|
PTHF100R-180SMFIXED IND 100UH 920MA 300MOHM SM |
0 |
|
Таблицы данных |
PTHFR-SM | Nonstandard | Bulk | Active | Toroidal | Molybdenum Permalloy(MPP) | 100 µH | ±10% | 920 mA | 300mA | Shielded | 300mOhm Max | - | 6MHz | - | - | 1 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.300" (7.62mm) |
|
|
PTHF50R-180SMFIXED IND 50UH 1.12A 210MOHM SMD |
0 |
|
Таблицы данных |
PTHFR-SM | Nonstandard | Bulk | Active | Toroidal | Molybdenum Permalloy(MPP) | 50 µH | ±10% | 1.12 A | 400mA | Shielded | 210mOhm Max | - | 10MHz | - | - | 1 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.300" (7.62mm) |
|
|
PTHF75R-180SMFIXED IND 75UH 990MA 260MOHM SMD |
0 |
|
Таблицы данных |
PTHFR-SM | Nonstandard | Bulk | Active | Toroidal | Molybdenum Permalloy(MPP) | 75 µH | ±10% | 990 mA | 300mA | Shielded | 260mOhm Max | - | 8MHz | - | - | 1 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.300" (7.62mm) |
|
|
PTKM50R-180SMFIXED IND 50UH 1.12A 210MOHM SMD |
0 |
|
Таблицы данных |
PTKMR-SM | Nonstandard | Bulk | Active | Toroidal | Ferrite | 50 µH | ±10% | 1.12 A | 180mA | Shielded | 210mOhm Max | - | 10MHz | - | - | 1 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.300" (7.62mm) |
