Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C5P0304N-ASWITCH ROTARY 2-4POS 1A 125V |
62 |
|
Таблицы данных |
C5 | Bulk | Active | 2 ~ 4 | Adjustable | 1 | 3 | 3P4T | Non-Shorting (BBM) | 1A (AC/DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 30° | Brass | Silver | Panel Mount | Solder Lug | Sealed | 20.07mm |
|

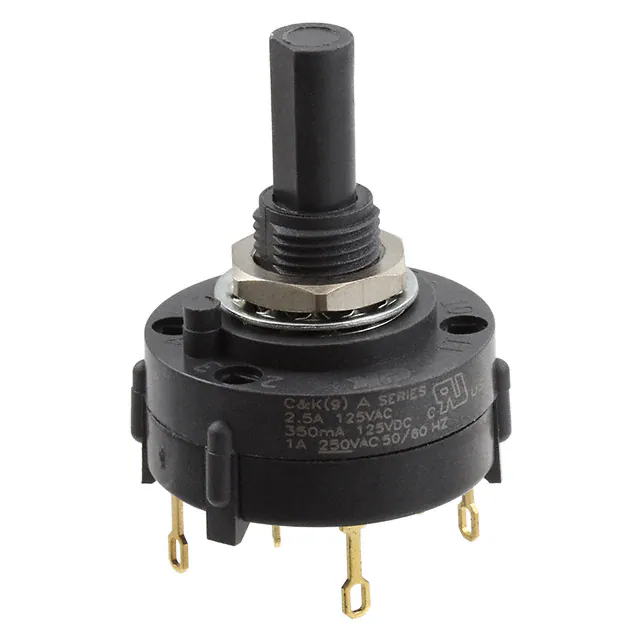

A12405RNZGSWITCH ROTARY 4POS 2.5A 125V |
67 |
|
Таблицы данных |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 90° | Silver (Ag) | Gold | Panel Mount | Solder Lug | - | 20.83mm |
|
A40203RNZQKSWITCH ROTARY 2POS 2.5A 125V |
30 |
|
Таблицы данных |
A | Tray | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals, Splashproof Bushing Seal | 20.83mm |
|

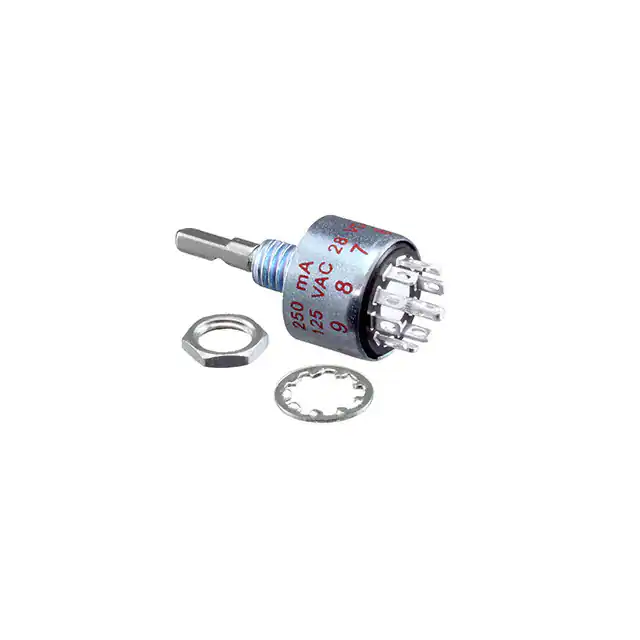

MA03L1NZQDSWITCH ROTARY 3POS 250MA 125V |
7 |
|
Таблицы данных |
M | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 14.86mm |
|
NR01105ANG13-1ASWITCH ROTARY 5POS 0.4VA 28V |
19 |
|
Таблицы данных |
NR01 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 7.00mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
NR01105ANG13-1CSWITCH ROTARY 5POS 0.4VA 28V |
72 |
|
Таблицы данных |
NR01 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 7.00mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
NR01105ANG13-1HSWITCH ROTARY 5POS 0.4VA 28V |
13 |
|
Таблицы данных |
NR01 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 7.00mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
NR01104ANG13-1ASWITCH ROTARY 4POS 0.4VA 28V |
19 |
|
Таблицы данных |
NR01 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 7.00mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
|
NR01103ANG13-1HSWITCH ROTARY 3POS 0.4VA 28V |
13 |
|
Таблицы данных |
NR01 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 7.00mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
|
NR01104ANG13-1HSWITCH ROTARY 4POS 0.4VA 28V |
10 |
|
Таблицы данных |
NR01 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 7.00mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|

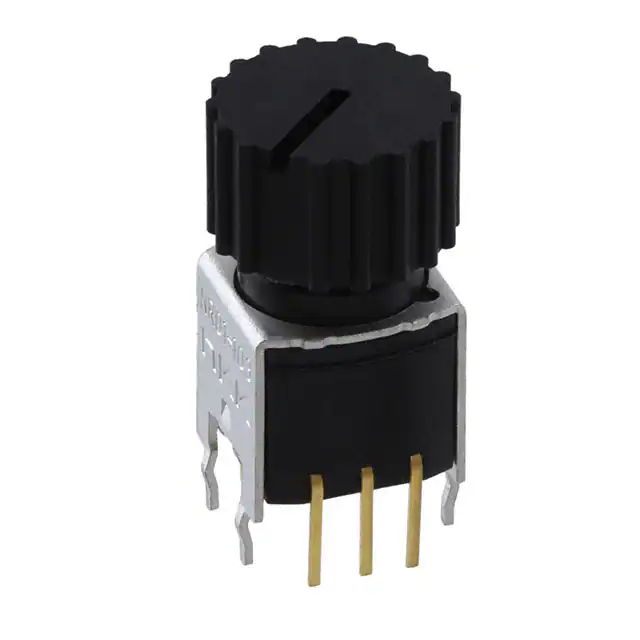

NR01103ANG13-1ASWITCH ROTARY 3POS 0.4VA 28V |
7 |
|
Таблицы данных |
NR01 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 7.00mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
NR01103ANG13-2ASWITCH ROTARY 3POS 0.4VA 28V |
10 |
|
Таблицы данных |
NR01 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
NR01105ANG13-2HSWITCH ROTARY 5POS 0.4VA 28V |
23 |
|
Таблицы данных |
NR01 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
|
NR01103ANG13-2HSWITCH ROTARY 3POS 0.4VA 28V |
65 |
|
Таблицы данных |
NR01 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
NR01105ANG13-2CSWITCH ROTARY 5POS 0.4VA 28V |
61 |
|
Таблицы данных |
NR01 | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|

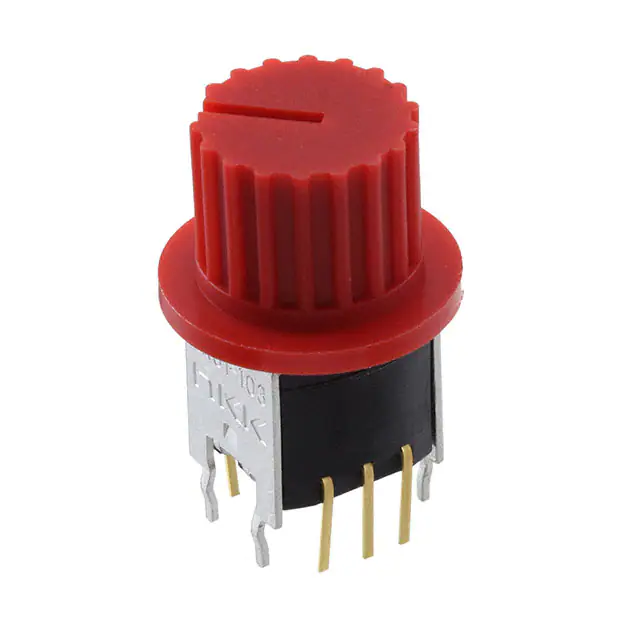

NR01103ANG13-2CSWITCH ROTARY 3POS 0.4VA 28V |
34 |
|
Таблицы данных |
NR01 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|

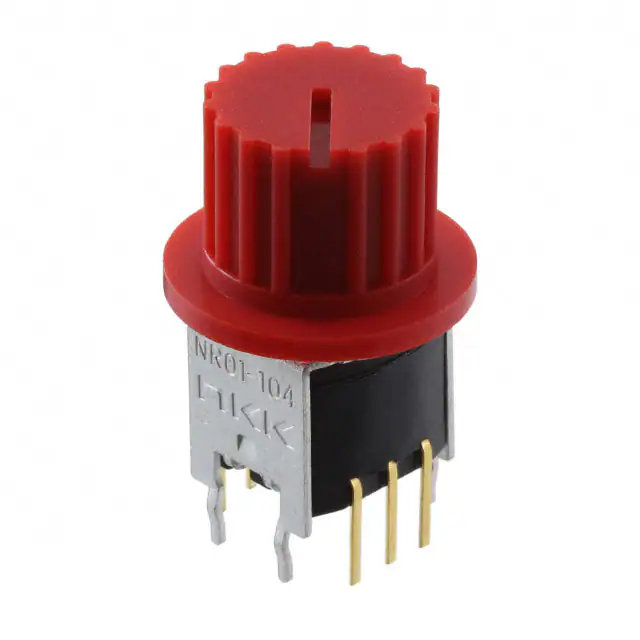

NR01104ANG13-2CSWITCH ROTARY 4POS 0.4VA 28V |
23 |
|
Таблицы данных |
NR01 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
|

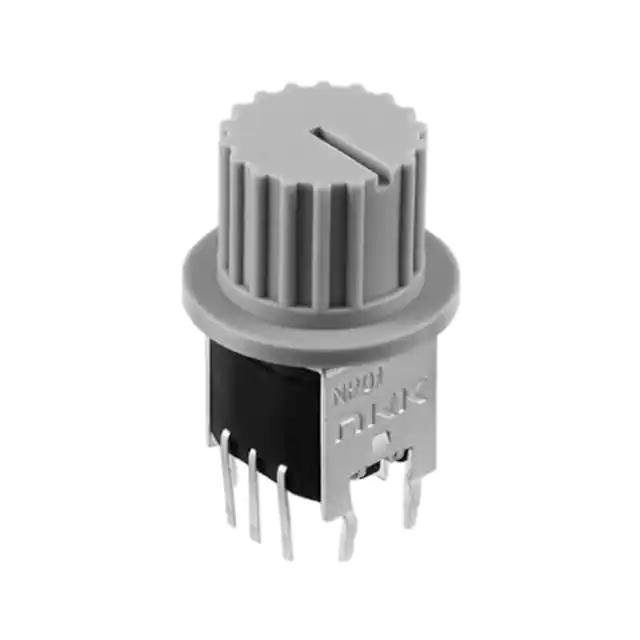

NR01104ANG13-2HSWITCH ROTARY 4POS 0.4VA 28V |
20 |
|
Таблицы данных |
NR01 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|

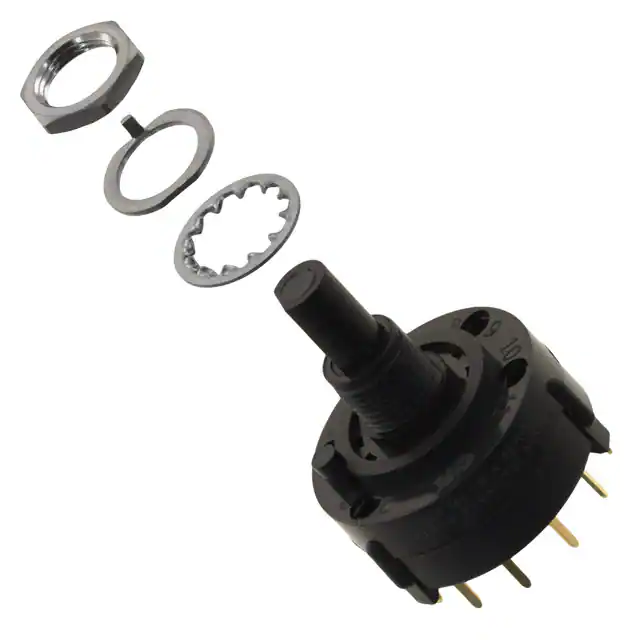

A11203RNCBSWITCH ROTARY 12POS 0.4VA 20V |
14 |
|
Таблицы данных |
A | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
A12503RNZGSWITCH ROTARY 8POS 2.5A 125V |
66 |
|
Таблицы данных |
A | Tray | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 45° | Silver (Ag) | Gold | Panel Mount | Solder Lug | - | 20.83mm |
