Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
50MT45-01-1-08NSWITCH ROTARY 8POS 150MA 115V |
33 |
|
Таблицы данных |
50 | Bulk | Active | 8 | Continuous | 1 | 1 | SP8T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | - | Gold | Panel Mount | Solder Lug | Process Sealed | 18.77mm |
|
C4D0112N-ASWITCH ROTARY 2-12POS 300MA 125V |
69 |
|
Таблицы данных |
C4 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 20.12mm |
|
C4D0206N-ASWITCH ROTARY 2-6POS 300MA 125V |
63 |
|
Таблицы данных |
C4 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 20.12mm |
|
71BD36-02-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
35 |
|
Таблицы данных |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 2 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.87mm |
|
D4G0111NSWITCH ROTARY 2-11POS 500MA 115V |
19 |
|
Таблицы данных |
D4 | Bulk | Active | 2 ~ 11 | Adjustable | 1 | 1 | SP11T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 14.27mm |
|
C4D0212N-ASWITCH ROTARY 2-12POS 300MA 125V |
21 |
|
Таблицы данных |
C4 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 27.33mm |
|
C7D0124N-CSWITCH ROTARY 24POS 500MA 125V |
13 |
|
Таблицы данных |
C7 | Bulk | Active | 24 | Continuous | 1 | 1 | SP24T | Non-Shorting (BBM) | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 20.60mm |
|
|
19101-03ULSWITCH ROTARY 3POS 15A 120V |
5 |
|
Таблицы данных |
19 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | 24.13mm |
|
C4D0412N-ASWITCH ROTARY 2-12POS 300MA 125V |
25 |
|
Таблицы данных |
C4 | Bulk | Active | 2 ~ 12 | Adjustable | 4 | 1 | SP12T | Non-Shorting (BBM) | 300mA (AC), 500mA (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 41.76mm |
|
19001-08ULSWITCH ROTARY 8POS 15A 120V |
18 |
|
Таблицы данных |
19 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.13mm |
|
|
05001-04NSWITCH ROTARY 4POS 1A 115V |
15 |
|
Таблицы данных |
5000 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 7.92mm | 36° | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - | 12.45mm |
|
|
412-6ESWITCH ROTARY 6POS 50A 300V |
5 |
|
Таблицы данных |
412 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 61.90mm |
|
412-8ESWITCH ROTARY 8POS 50A 300V |
7 |
|
Таблицы данных |
412 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 50A (AC/DC) | 300 V | 20 V | Flatted (6.35mm Dia) | 28.58mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 61.90mm |
|

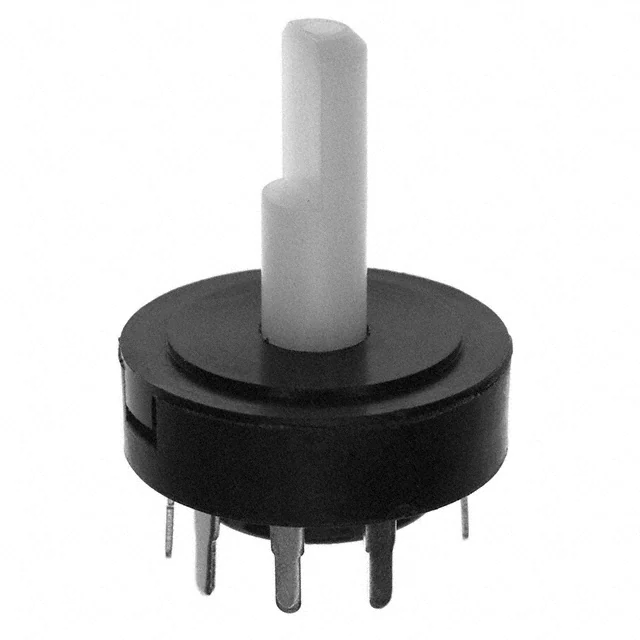

R20307RN02QSWITCH ROTARY 3POS 5A 125V |
98 |
|
Таблицы данных |
R | Tube | Active | 3 | Fixed | 1 | 2 | DP3T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Through Hole | PC Pin | - | 10.29mm |
|

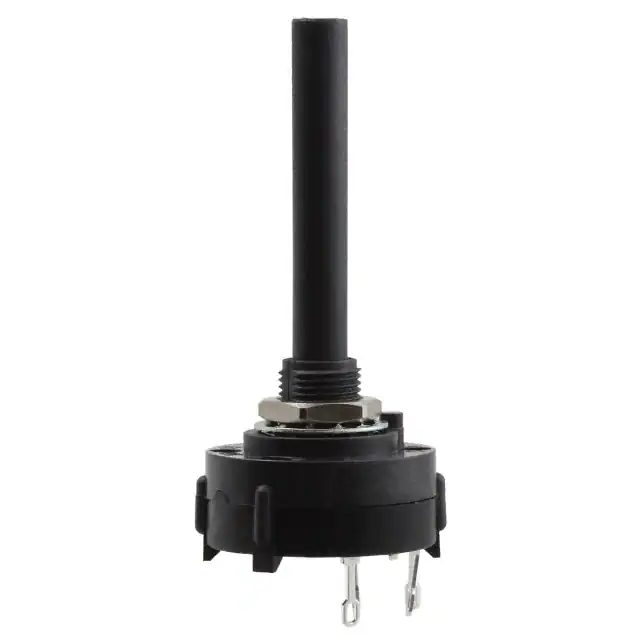

A11515RNZQSWITCH ROTARY 3POS 2.5A 125V |
37 |
|
Таблицы данных |
A | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
A10405RNCQSWITCH ROTARY 4POS 2.5A 125V |
45 |
|
Таблицы данных |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|

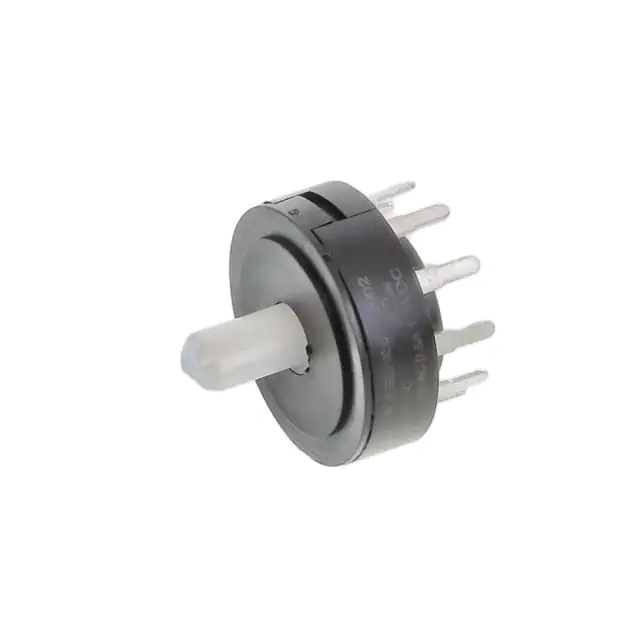

R10805RN02QSWITCH ROTARY 8POS 5A 125V |
81 |
|
Таблицы данных |
R | Tube | Active | 8 | Fixed | 1 | 1 | SP8T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Copper | Silver | Through Hole | PC Pin | - | 10.29mm |
|

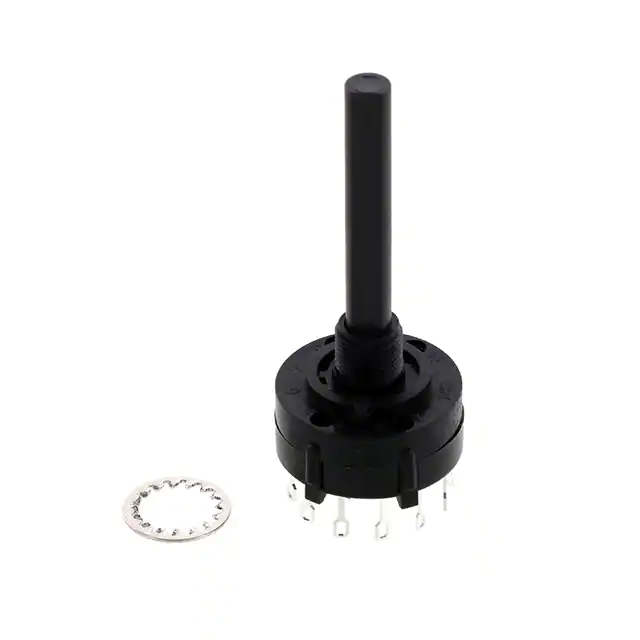

A10015RSZQSWITCH ROTARY 12POS 2.5A 125V |
76 |
|
Таблицы данных |
A | Tray | Active | 12 | Continuous | 1 | 1 | SP12T | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
A11505RNZQSWITCH ROTARY 3POS 2.5A 125V |
67 |
|
Таблицы данных |
A | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
|
A10205RNZQSWITCH ROTARY 2POS 2.5A 125V |
47 |
|
Таблицы данных |
A | Tray | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
