Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

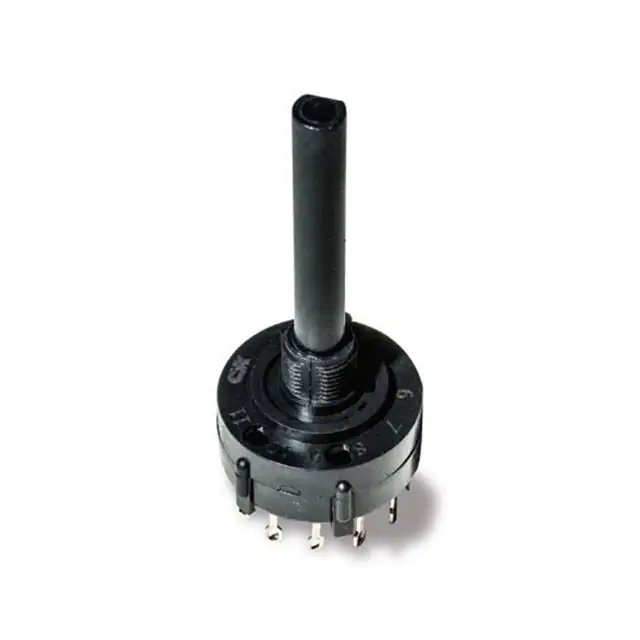

A10403RNZQSWITCH ROTARY 4POS 2.5A 125V |
32 |
|
Таблицы данных |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
A40203RNZQSWITCH ROTARY 2POS 2.5A 125V |
31 |
|
Таблицы данных |
A | Tray | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|

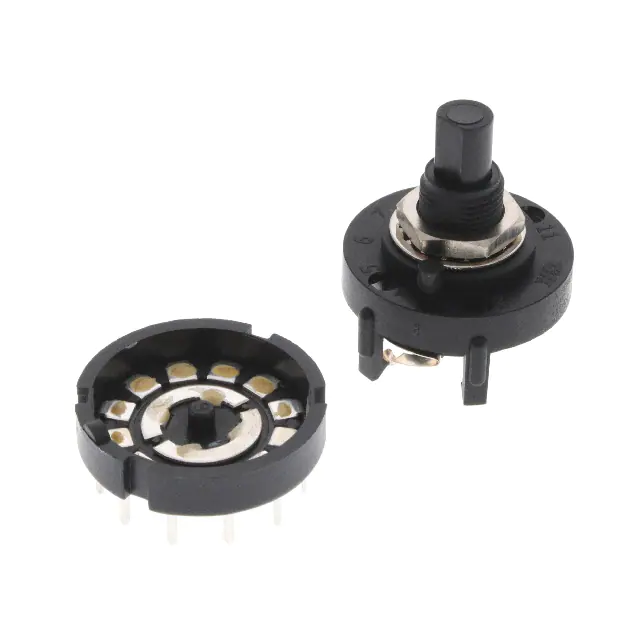

A20603RNMCQSWITCH ROTARY 6POS 2.5A 125V |
67 |
|
Таблицы данных |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Modular Base | 14.48mm |
|

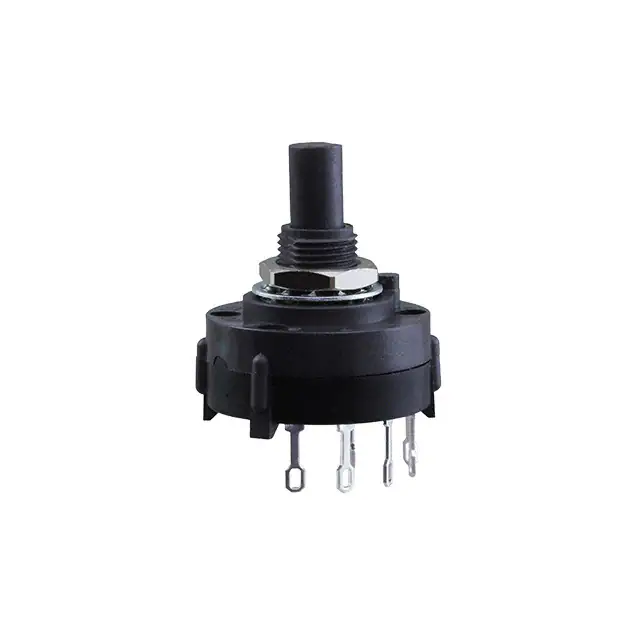

A10503RNZQSWITCH ROTARY 5POS 2.5A 125V |
87 |
|
Таблицы данных |
A | Tray | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
A10615RNZQSWITCH ROTARY 6POS 2.5A 125V |
67 |
|
Таблицы данных |
A | Tray | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|

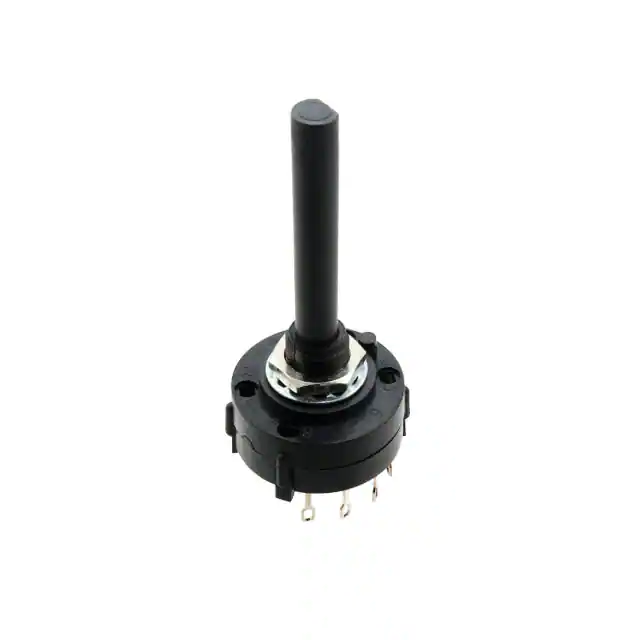

A10515RNZQSWITCH ROTARY 5POS 2.5A 125V |
73 |
|
Таблицы данных |
A | Tray | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|

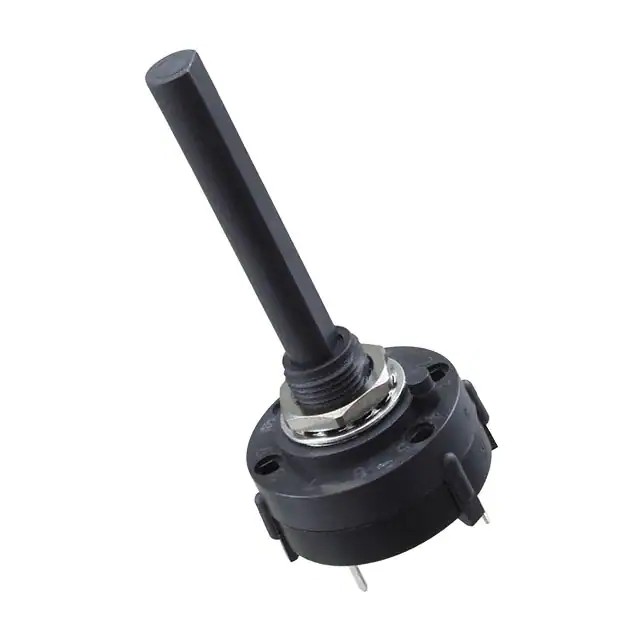

A12415RNCQSWITCH ROTARY 4POS 2.5A 125V |
35 |
|
Таблицы данных |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 90° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|

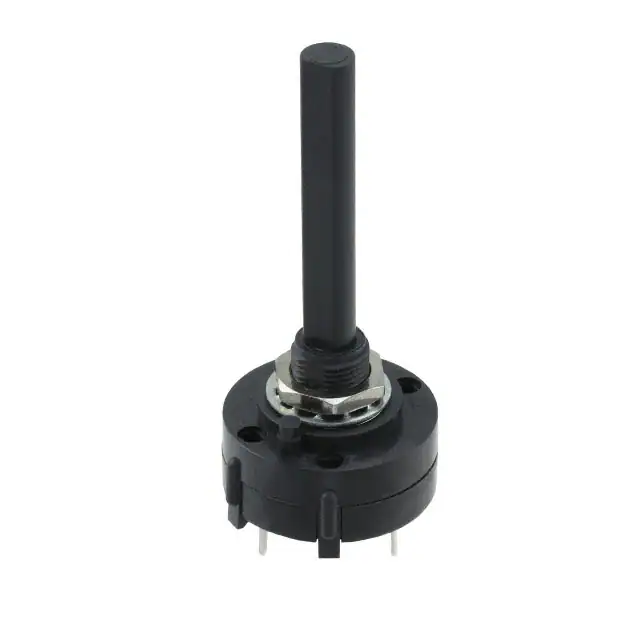

A21415RNCQSWITCH ROTARY 2POS 2.5A 125V |
58 |
|
Таблицы данных |
A | Tray | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 90° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
A10803RNCQSWITCH ROTARY 8POS 2.5A 125V |
26 |
|
Таблицы данных |
A | Tray | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
A40215RNZQSWITCH ROTARY 2POS 2.5A 125V |
41 |
|
Таблицы данных |
A | Tray | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
A30415RNCQESWITCH ROTARY 4POS 2.5A 125V |
49 |
|
Таблицы данных |
A | Tray | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|
R20307RR02QESWITCH ROTARY 3POS 5A 125V |
59 |
|
Таблицы данных |
R | Tube | Active | 3 | Fixed | 1 | 2 | DP3T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 36° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 10.29mm |
|

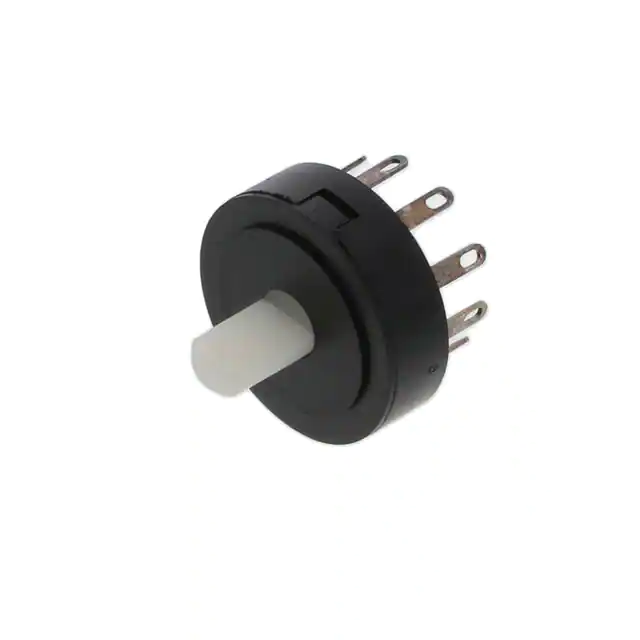

R10005RN03QESWITCH ROTARY 10POS 5A 125V |
57 |
|
Таблицы данных |
R | Bag | Active | 10 | Continuous | 1 | 1 | SP10T, Adjacent Contact | Non-Shorting (BBM) | 5A (AC), 500mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Copper | Silver | - | Solder Lug | Epoxy Sealed Terminals | - |
|

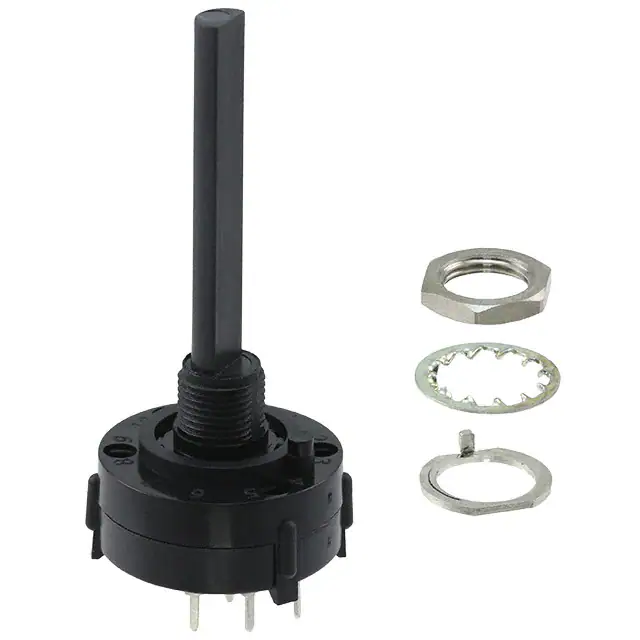

A20314RNCQSWITCH ROTARY 3POS 2.5A 125V |
22 |
|
Таблицы данных |
A | Tray | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|

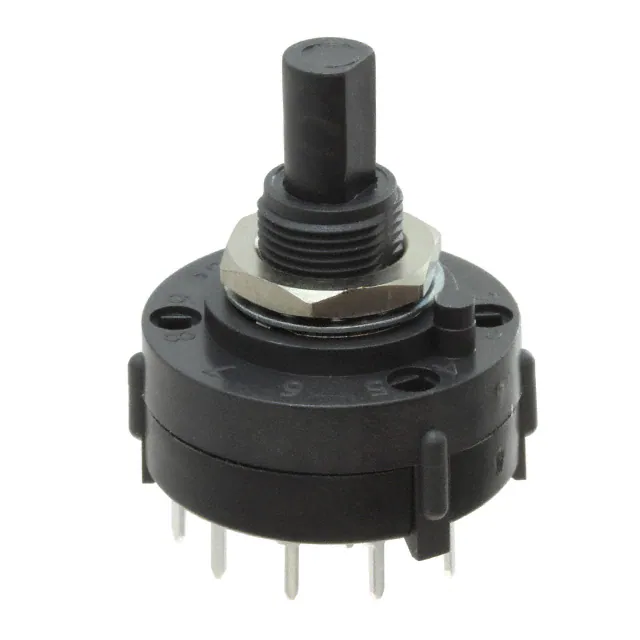

A10703MNCQSWITCH ROTARY 7POS 2.5A 125V |
63 |
|
Таблицы данных |
A | Tray | Active | 7 | Fixed | 1 | 1 | SP7T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|

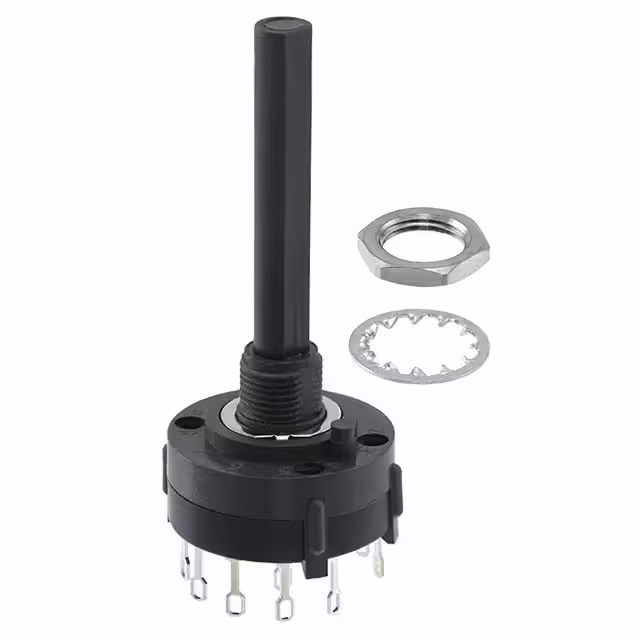

A20515RNZQSWITCH ROTARY 5POS 2.5A 125V |
18 |
|
Таблицы данных |
A | Tray | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
212T0111S332RASWITCH ROTARY 11POS 750MA 125V |
26 |
|
Таблицы данных |
212 | Bulk | Active | 11 | Fixed | 1 | 1 | SP11T | Shorting (MBB) | 750mA (AC), 250mA (DC) | 125 V | 28 V | Round (6.35mm Dia) | 15.90mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 22.17mm |
|

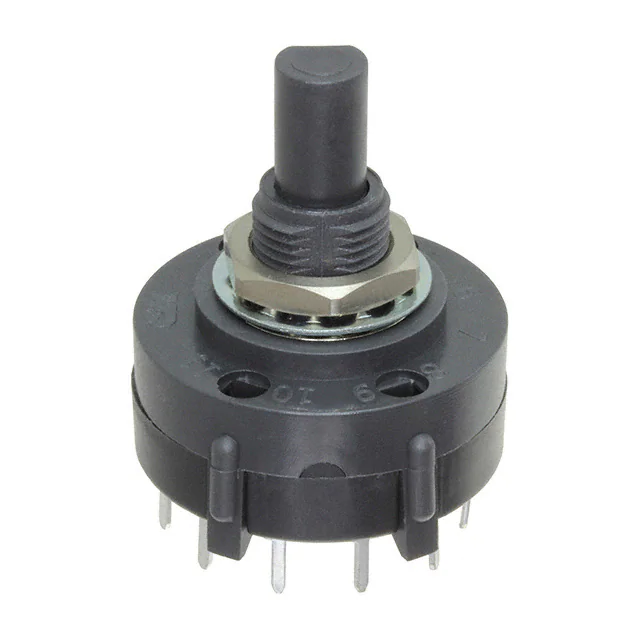

A20603RNCQSWITCH ROTARY 6POS 2.5A 125V |
53 |
|
Таблицы данных |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|

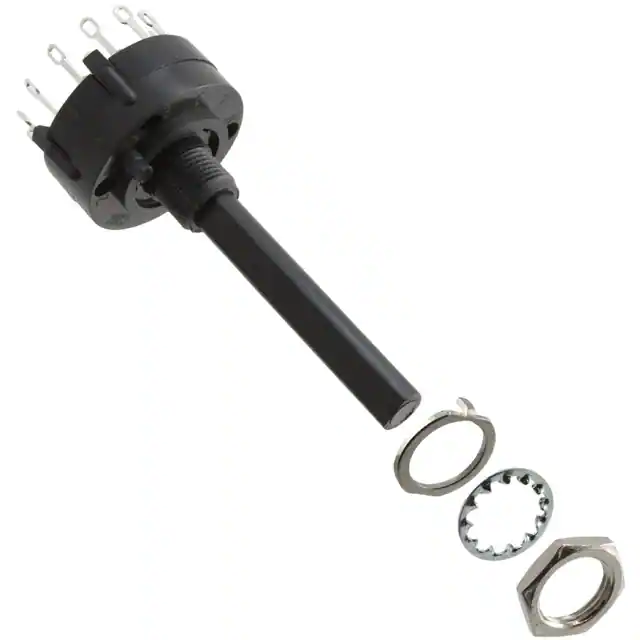

A20615RNZQSWITCH ROTARY 6POS 2.5A 125V |
62 |
|
Таблицы данных |
A | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
|

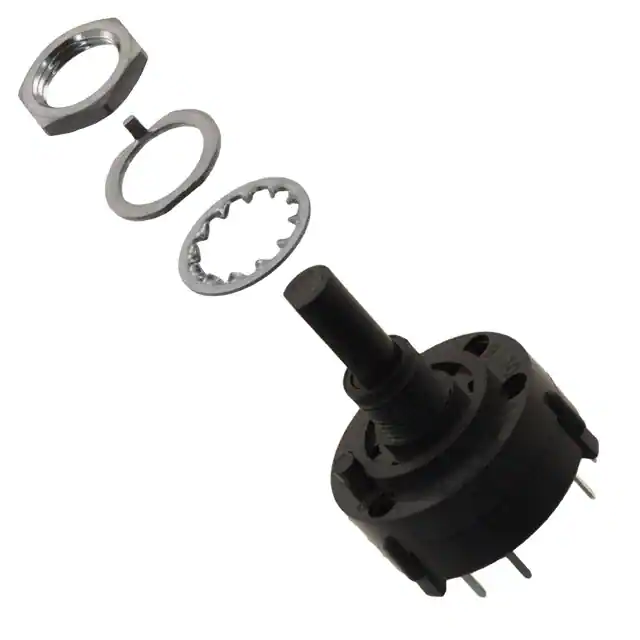

A12505RNCQSWITCH ROTARY 8POS 2.5A 125V |
58 |
|
Таблицы данных |
A | Tray | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 45° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
