Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

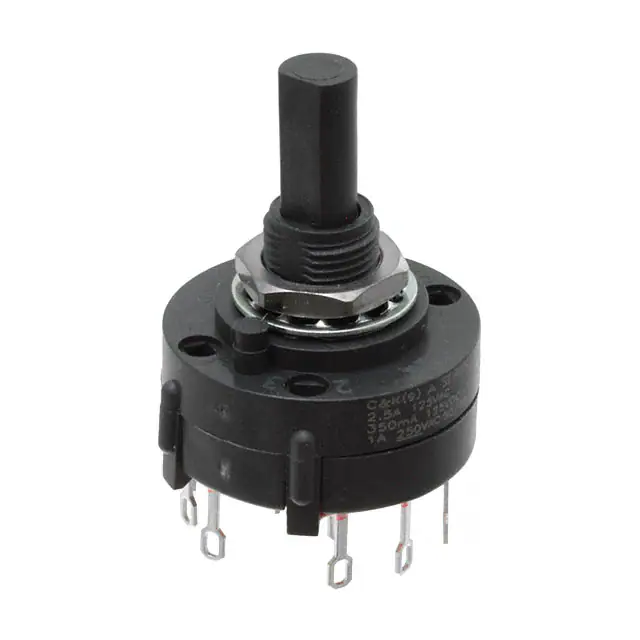

A30305RNZQKSWITCH ROTARY 3POS 2.5A 125V |
25 |
|
Таблицы данных |
A | Tray | Active | 3 | Fixed | 1 | 3 | 3P3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals, Splashproof Bushing Seal | 20.83mm |
|
NR01103ANG13-1CSWITCH ROTARY 3POS 0.4VA 28V |
15 |
|
Таблицы данных |
NR01 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 7.00mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
|
NR01104ANG13-1CSWITCH ROTARY 4POS 0.4VA 28V |
22 |
|
Таблицы данных |
NR01 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 7.00mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
NR01104ANG13-2ASWITCH ROTARY 4POS 0.4VA 28V |
82 |
|
Таблицы данных |
NR01 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 10.80mm | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | 10.50mm |
|
481RV12172100SWITCH ROTARY 8POS 100MA 30V |
13 |
|
Таблицы данных |
WS-RPTL | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Shorting (MBB) | 100mA (DC) | - | 30 V | Knob | 9.55mm | 45° | Copper Alloy | Silver | Through Hole | PC Pin | LED, Pushbutton Switch | - |
|

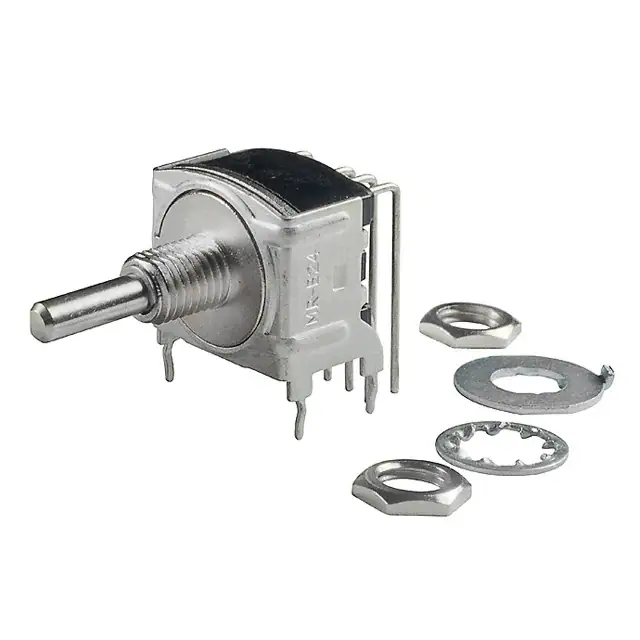

MRB24HSWITCH ROTARY 3POS 0.4VA 28V |
83 |
|
Таблицы данных |
MRB | Box | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flatted (3.17mm Dia) | 10.00mm | 45° | Beryllium Copper | Gold | Panel Mount, Through Hole, Right Angle | PC Pin | Sealed - Fully | 15.10mm |
|

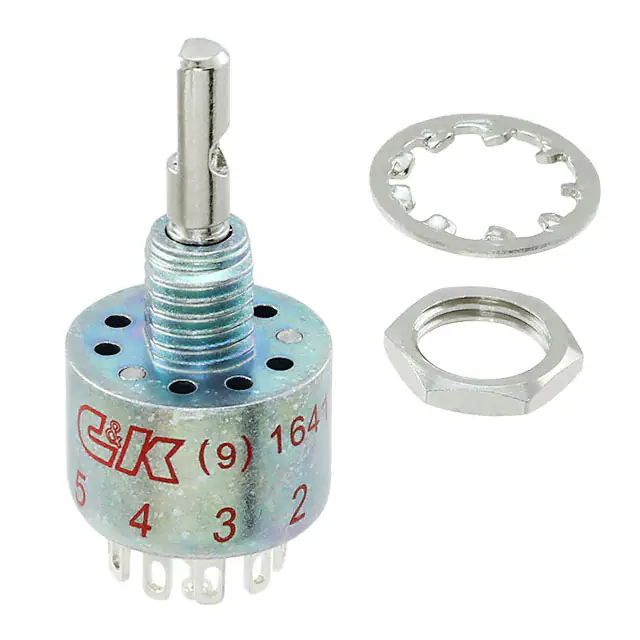

MA04L1NZQDSWITCH ROTARY 4POS 250MA 125V |
42 |
|
Таблицы данных |
M | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 14.86mm |
|
56D36-01-2-AJNSWITCH ROTARY 2-5POS 200MA 115V |
34 |
|
Таблицы данных |
56 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
56SD30-01-1-AJNSWITCH ROTARY 2-12POS 200MA 115V |
16 |
|
Таблицы данных |
56 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|

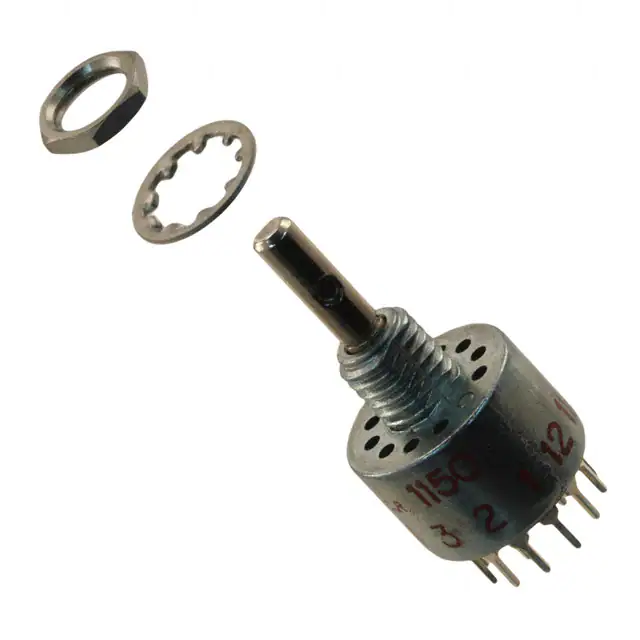

MD06L1NCQDSWITCH ROTARY 6POS 250MA 125V |
39 |
|
Таблицы данных |
M | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|
56D30-01-2-AJNSWITCH ROTARY 2-6POS 200MA 115V |
23 |
|
Таблицы данных |
56 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|

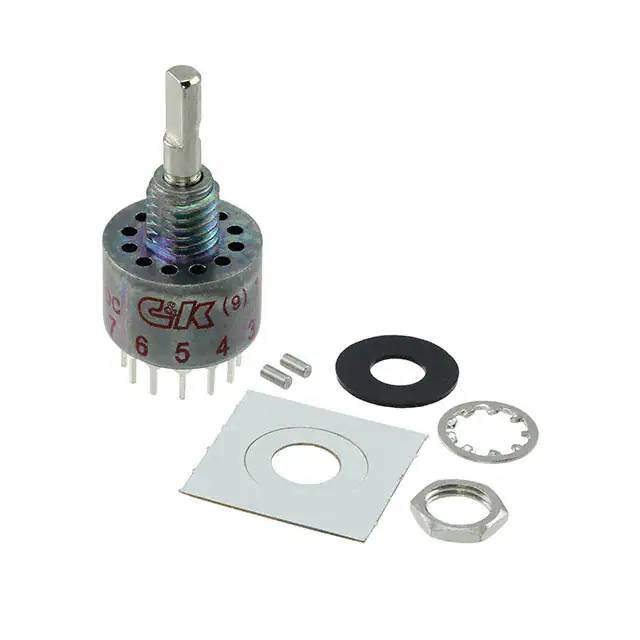

MC00L1NCQFSWITCH ROTARY 12POS 250MA 125V |
36 |
|
Таблицы данных |
M | Tray | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 10.42mm |
|
C3P0212N-ASWITCH ROTARY 2-12POS 100MA 125V |
23 |
|
Таблицы данных |
C3 | Bulk | Active | 2 ~ 12 | Adjustable | 2 | 1 | SP12T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 30.00mm |
|
50D36-01-1-AJNSWITCH ROTARY 2-10POS 150MA 115V |
44 |
|
Таблицы данных |
50 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
50D60-01-1-AJNSWITCH ROTARY 2-6POS 150MA 115V |
67 |
|
Таблицы данных |
50 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 1 | SP6T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 60° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
51D30-01-1-AJNSWITCH ROTARY 2-12POS 150MA 115V |
52 |
|
Таблицы данных |
51 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
71BD36-01-1-AJNSWITCH ROTARY 2-10POS 250MA 115V |
55 |
|
Таблицы данных |
71 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 9.53mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 19.33mm |
|
50S45-01-2-03NSWITCH ROTARY 3POS 150MA 115V |
30 |
|
Таблицы данных |
50 | Bulk | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 45° | - | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 18.77mm |
|
503265-1-03NSWITCH ROTARY 3POS 150MA 115V |
90 |
|
Таблицы данных |
50 | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | - | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|

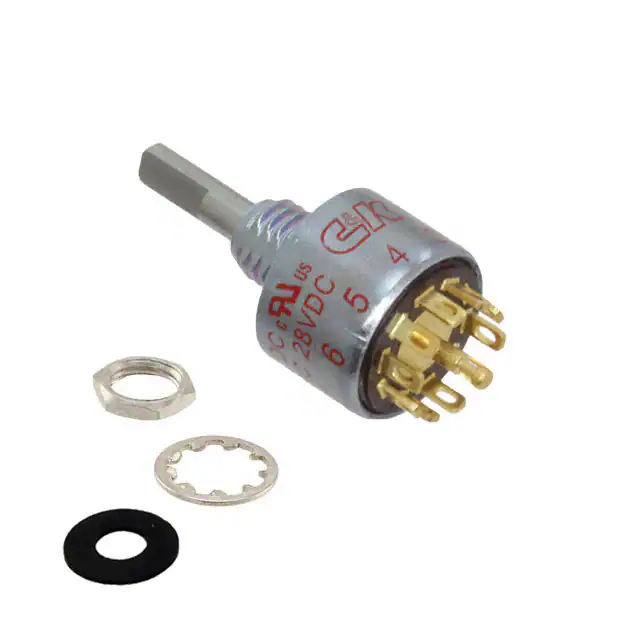

MA10S1NZGFSWITCH ROTARY 10POS 250MA 125V |
65 |
|
Таблицы данных |
M | Tray | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
