Фитинги, муфты и распределители
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Метод подключения | Для использования с/сопутствующими продуктами | Особенности | Рабочее давление | Рабочая температура | Размер резьбы | Тип крепления | Материал | Цвет |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

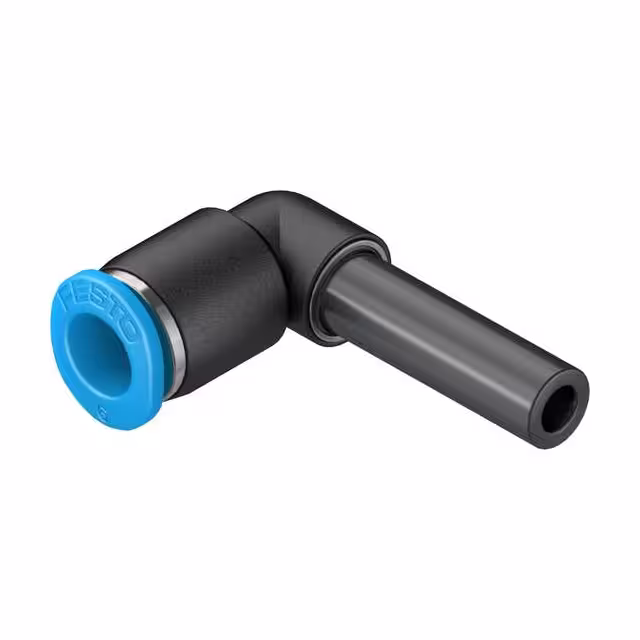

QSML-6HPUSH-IN L-CONNECTOR |
10 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Sleeve | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QSL-1/8-8PUSH-IN L-FITTING |
0 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/8 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

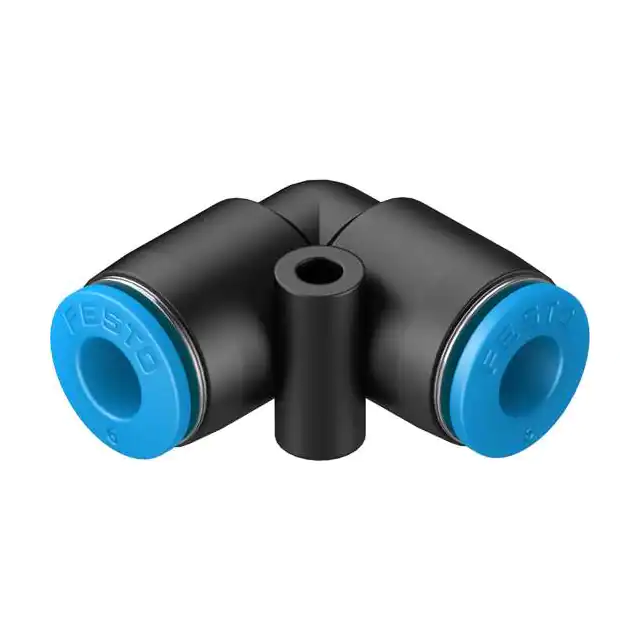

QSL-6PUSH-IN L-CONNECTOR |
15 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|
QS-3/8-8-IPUSH-IN FITTING |
7 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QBL-1/4T-UPUSH-IN L-CONNECTOR |
1 |
|
Таблицы данных |
QB | Bulk | Active | Elbow Fitting | Push-In | 1/4" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|

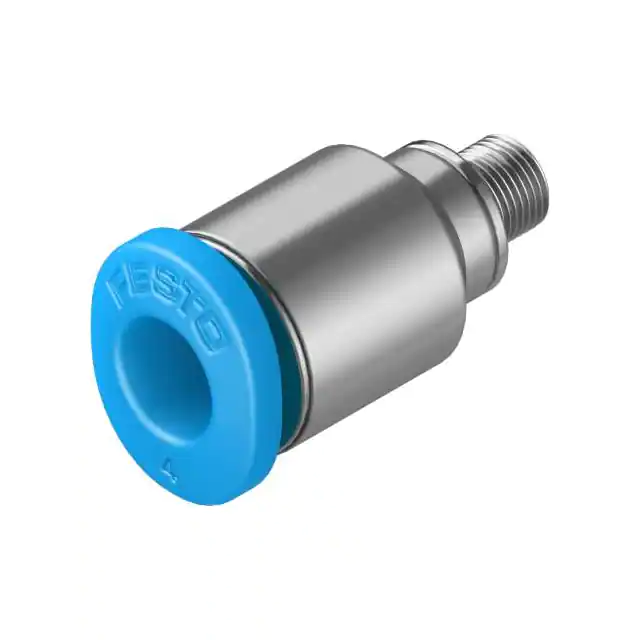

QSM-M3-1/8-I-U-MPUSH-IN FITTING |
13 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/8" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | M3 | Free Hanging (In-Line) | Stainless Steel | - |
|
QSF-1/8-4-BPUSH-IN FITTING |
16 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QB-5/16T-1/4-UPUSH-IN CONNECTOR |
10 |
|
Таблицы данных |
QB | Bulk | Active | Adapter | Push-In | 5/16" and 1/4" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
NPFC-L-2G14-FELBOW FITTING |
10 |
|
Таблицы данных |
- | Bulk | Active | Elbow Fitting | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSF-1/8-6-BPUSH-IN FITTING |
0 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-G3/8-10PUSH-IN FITTING |
24 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 10mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

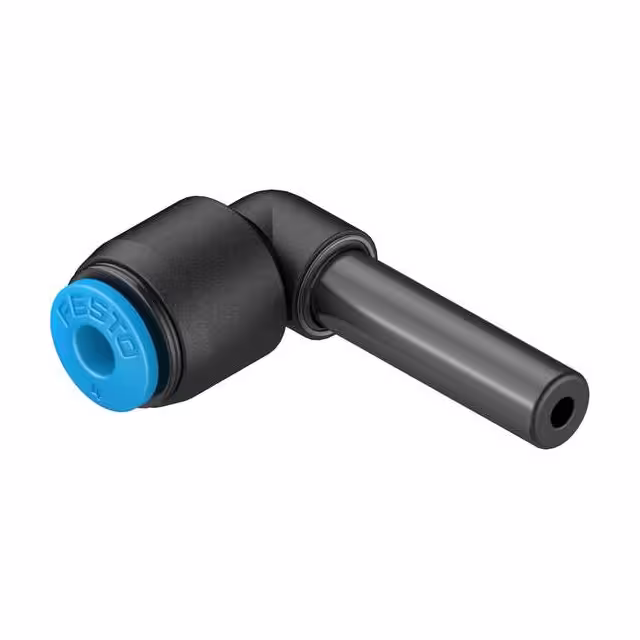

QSL-6H-4PUSH-IN L-CONNECTOR |
20 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Sleeve | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QSM-M7-1/8-I-U-MPUSH-IN FITTING |
4 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/8" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | M7 | Free Hanging (In-Line) | Stainless Steel | - |
|

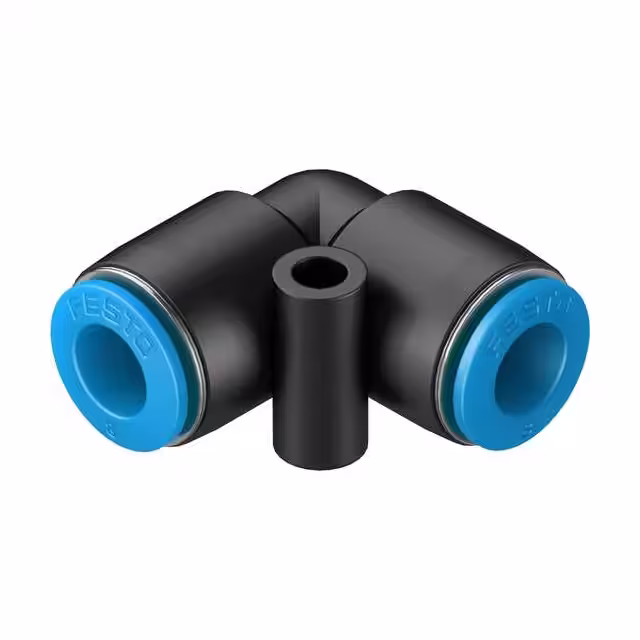

QSL-8PUSH-IN L-CONNECTOR |
3 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|

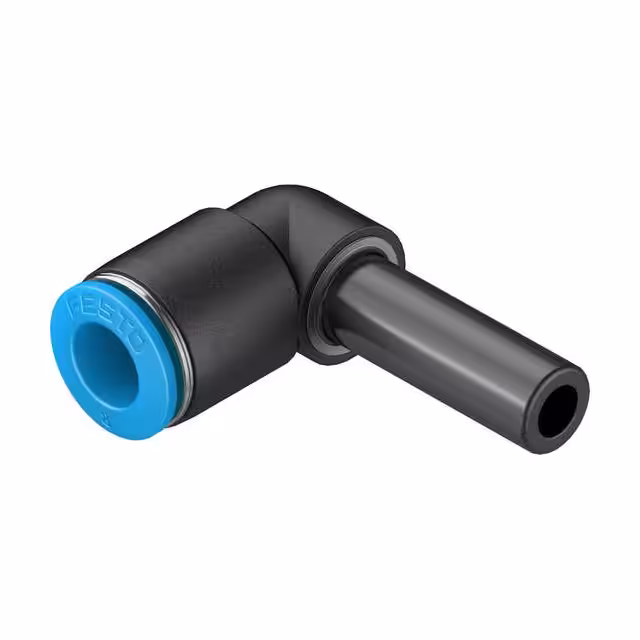

QSL-8HPUSH-IN L-CONNECTOR |
0 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Sleeve | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QS-G1/4-12PUSH-IN FITTING |
4 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 12mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QB-3/8-1/2-UPUSH-IN FITTING |
15 |
|
Таблицы данных |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 1/2" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT3/8-18 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-3/8-10-IPUSH-IN FITTING |
11 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 10mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSF-1/4-4-BPUSH-IN FITTING |
8 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

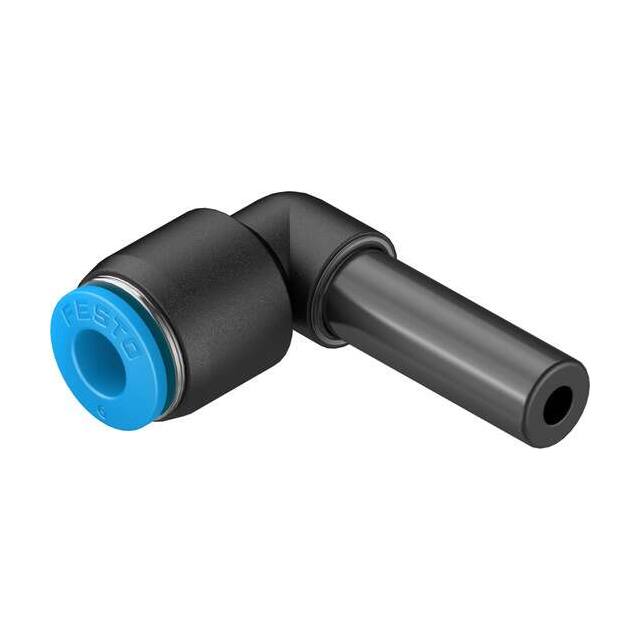

QSL-8H-6PUSH-IN L-CONNECTOR |
8 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Sleeve | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
