БОМ
Фитинги, муфты и распределители
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Метод подключения | Для использования с/сопутствующими продуктами | Особенности | Рабочее давление | Рабочая температура | Размер резьбы | Тип крепления | Материал | Цвет |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QS-G3/8-8-IPUSH-IN FITTING |
6 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

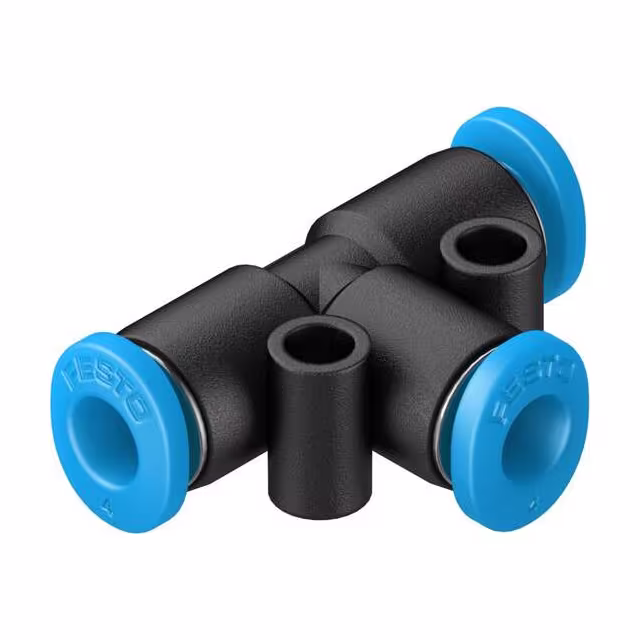

QSMT-4PUSH-IN T-CONNECTOR |
11 |
|
Таблицы данных |
QS | Bulk | Active | T-Fitting | Push-In | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|
QBL-3/8-1/4-UPUSH-IN L-FITTING |
14 |
|
Таблицы данных |
QB | Bulk | Active | Elbow Fitting | Push-In to Threaded | 1/4" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT3/8-18 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

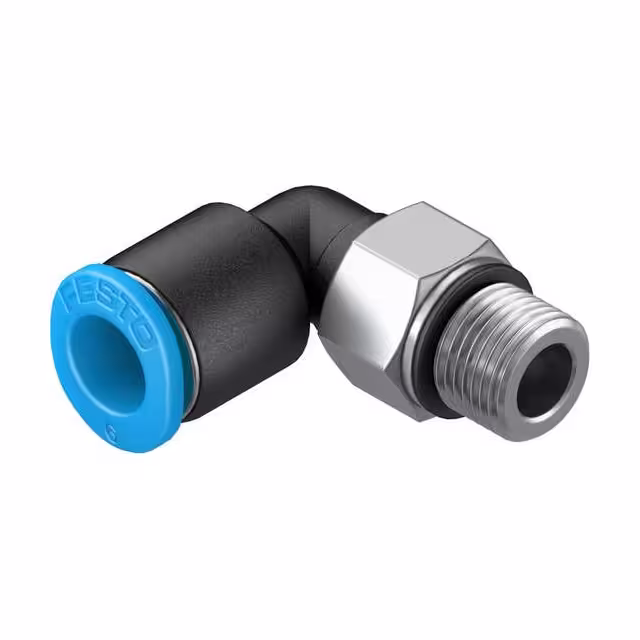

QSML-M7-6PUSH-IN L-FITTING |
12 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | M7 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

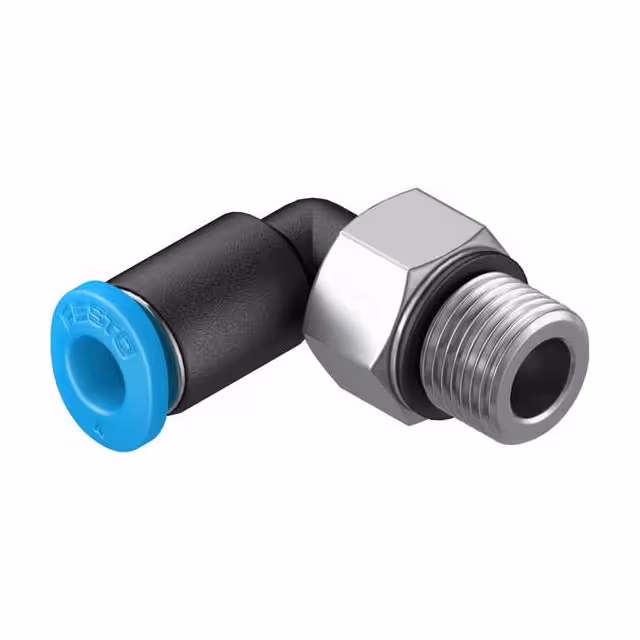

QSML-M7-4PUSH-IN L-FITTING |
7 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | M7 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QSMT-4-3PUSH-IN T-CONNECTOR |
4 |
|
Таблицы данных |
QS | Bulk | Active | T-Fitting | Push-In | 4mm and 3mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|
QSLL-1/4-4PUSH-IN L-FITTING, LONG |
18 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/4 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

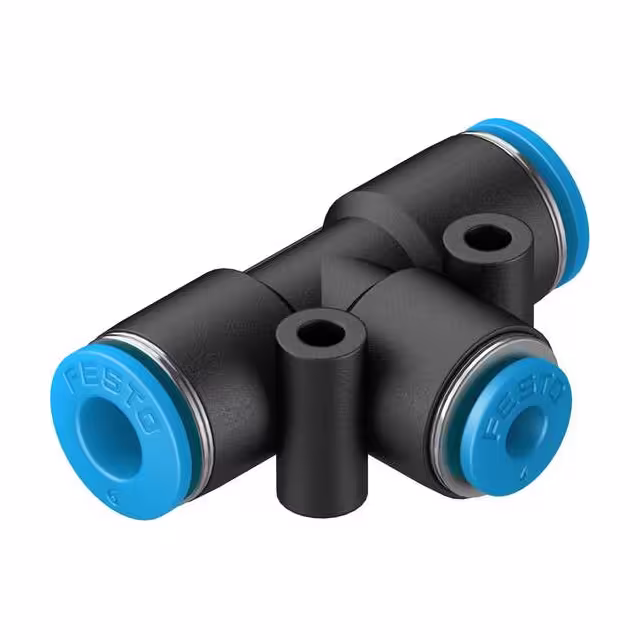

QST-6-4PUSH-IN T-CONNECTOR |
12 |
|
Таблицы данных |
QS | Bulk | Active | T-Fitting | Push-In | 6mm and 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|
QSL-3/8-8PUSH-IN L-FITTING |
10 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R3/8 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

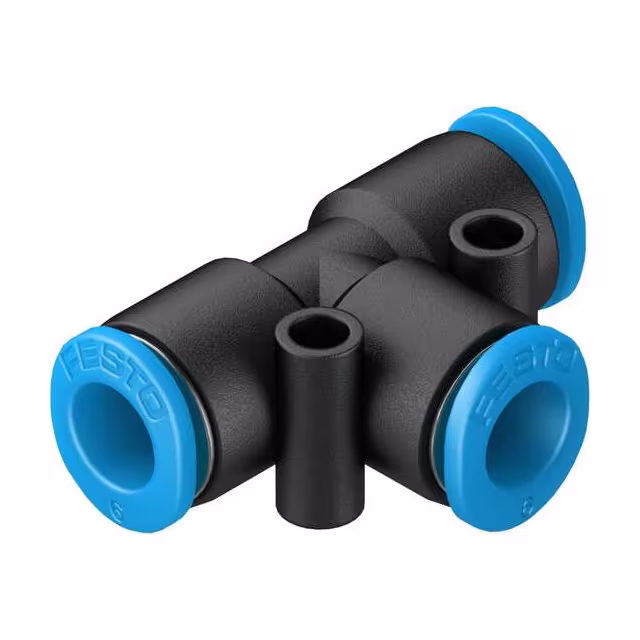

QSMT-6PUSH-IN T-CONNECTOR |
7 |
|
Таблицы данных |
QS | Bulk | Active | T-Fitting | Push-In | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|
QSF-1/8-8-BPUSH-IN FITTING |
1 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSLV-G1/8-4PUSH-IN L-FITTING |
11 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 4mm OD Tubing | Orientable | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/8 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QS-G3/8-12PUSH-IN FITTING |
4 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 12mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSLL-1/8-6PUSH-IN L-FITTING, LONG |
14 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/8 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
NPFC-D-M5-G18-MDOUBLE NIPPLE |
22 |
|
Таблицы данных |
- | Bulk | Active | Adapter | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | G1/8, M5 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QBT-5/32T-UPUSH-IN T-CONNECTOR |
9 |
|
Таблицы данных |
QB | Bulk | Active | T-Fitting | Push-In | 5/32" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|
QS-G3/8-10-IPUSH-IN FITTING |
11 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 10mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QST-1/8-4PUSH-IN T-FITTING |
10 |
|
Таблицы данных |
QS | Bulk | Active | T-Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/8 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QSF-1/4-8-BPUSH-IN FITTING |
9 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

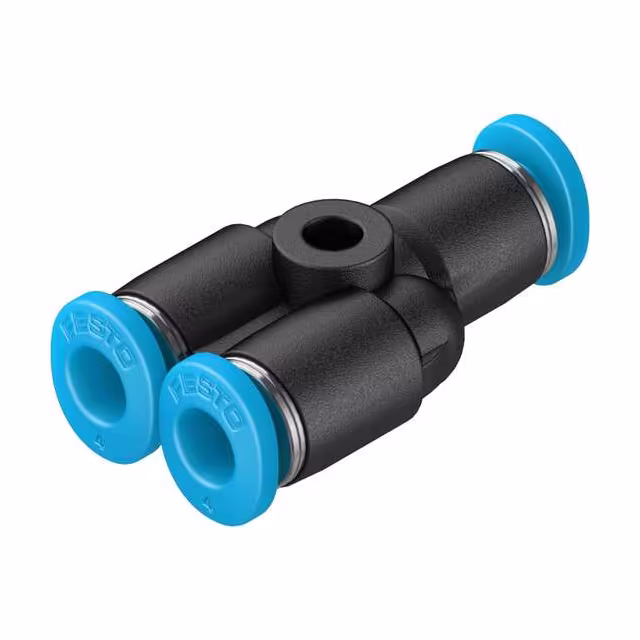

QSMY-4PUSH-IN Y-CONNECTOR |
8 |
|
Таблицы данных |
QS | Bulk | Active | Y-Fitting | Push-In | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
