Фитинги, муфты и распределители
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Метод подключения | Для использования с/сопутствующими продуктами | Особенности | Рабочее давление | Рабочая температура | Размер резьбы | Тип крепления | Материал | Цвет |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
QS-3/8-10PUSH-IN FITTING |
5 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 10mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R3/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QB-5/32T-UPUSH-IN CONNECTOR |
20 |
|
Таблицы данных |
QB | Bulk | Active | Straight Fitting | Push-In | 5/32" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|
QBL-5/32T-UPUSH-IN L-CONNECTOR |
20 |
|
Таблицы данных |
QB | Bulk | Active | Elbow Fitting | Push-In | 5/32" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|
QB-3/8-3/8-U-MPUSH-IN FITTING |
12 |
|
Таблицы данных |
QB | Bulk | Active | Straight Fitting | Push-In to Threaded | 3/8" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT3/8-18 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QS-G1/8-10-IPUSH-IN FITTING |
0 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 10mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QBMT-1/8-1/8-UPUSH-IN T-FITTING |
20 |
|
Таблицы данных |
QB | Bulk | Active | T-Fitting | Push-In to Threaded | 1/8" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT1/8-27 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSL-1/4-6PUSH-IN L-FITTING |
6 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/4 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

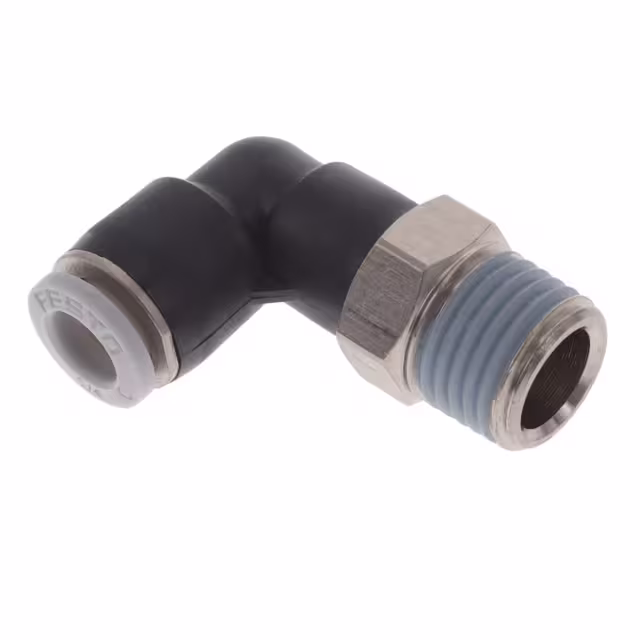

QBL-1/4-1/4-U-MPUSH-IN L-FITTING |
6 |
|
Таблицы данных |
QB | Bulk | Active | Elbow Fitting | Push-In to Threaded | 1/4" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | NPT1/4-18 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
NPQH-D-G18-Q4-P10PUSH-IN FITTING |
9 |
|
Таблицы данных |
NPQH | Bulk | Active | Straight Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 290 PSI (-1 ~ 20 bar) | 0°C ~ 150°C | G1/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

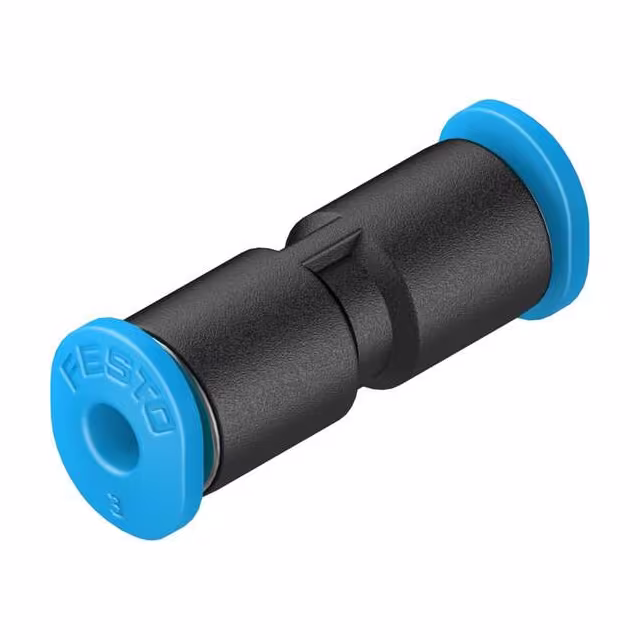

QSM-4-3PUSH-IN CONNECTOR |
21 |
|
Таблицы данных |
QS | Bulk | Active | Adapter | Push-In | 4mm and 3mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

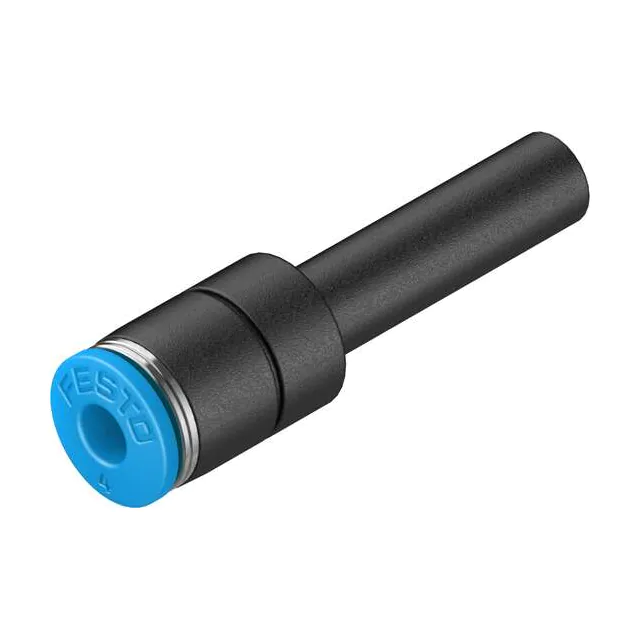

QS-6H-4PUSH-IN CONNECTOR |
20 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Sleeve | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

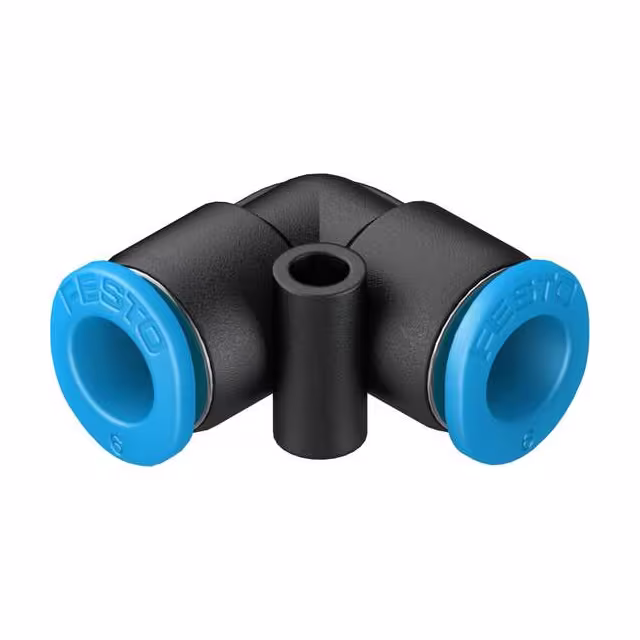

QSML-6PUSH-IN L-CONNECTOR |
10 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|
QB-1/4T-5/32-UPUSH-IN CONNECTOR |
3 |
|
Таблицы данных |
QB | Bulk | Active | Adapter | Push-In | 1/4" and 5/32" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
|
QB-1/4T-UPUSH-IN CONNECTOR |
7 |
|
Таблицы данных |
QB | Bulk | Active | Straight Fitting | Push-In | 1/4" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | - | Chassis Mount | Polybutylene Terephthalate (PBT) | - |
|
QS-G1/4-10PUSH-IN FITTING |
6 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 10mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-1/4-12PUSH-IN FITTING |
15 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 12mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

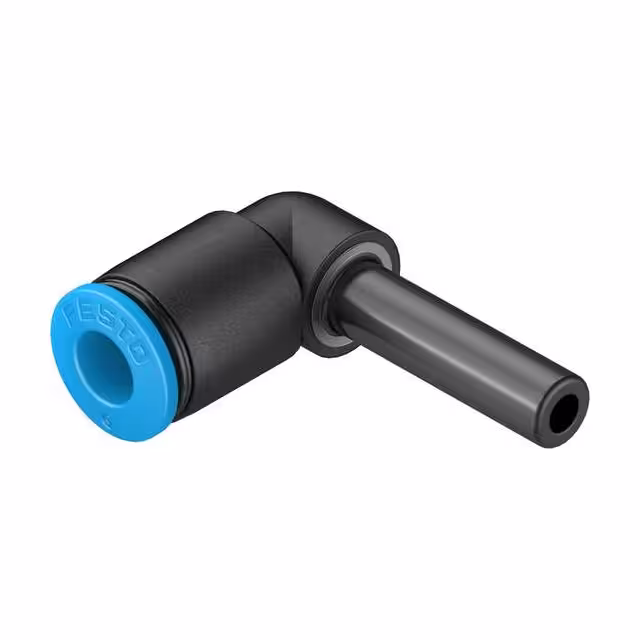

QSL-6HPUSH-IN L-CONNECTOR |
10 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Sleeve | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

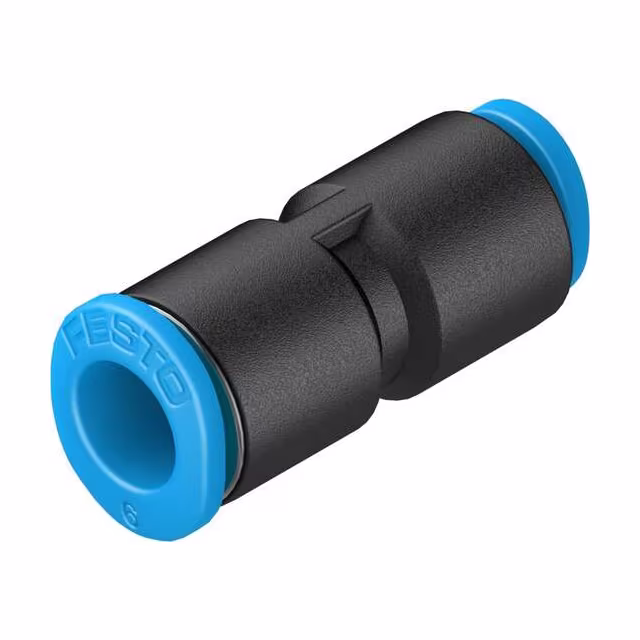

QSM-6-4PUSH-IN CONNECTOR |
10 |
|
Таблицы данных |
QS | Bulk | Active | Adapter | Push-In | 6mm and 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QBL-10-32-UNF-5/32-UPUSH-IN L-FITTING |
2 |
|
Таблицы данных |
QB | Bulk | Active | Elbow Fitting | Push-In to Threaded | 5/32" OD Tubing | - | -14 ~ 145 PSI (-1 ~ 10 bar) | 0°C ~ 60°C | UNF10-32 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

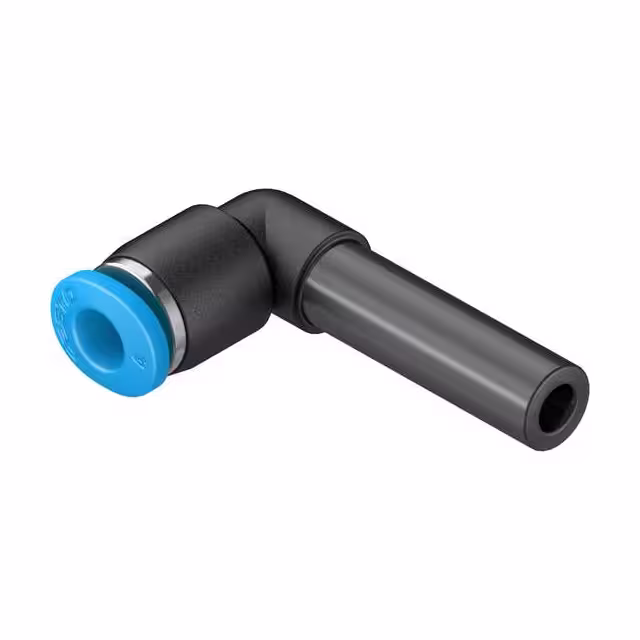

QSML-6H-4PUSH-IN L-CONNECTOR |
21 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Sleeve | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
