БОМ
Фитинги, муфты и распределители
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Метод подключения | Для использования с/сопутствующими продуктами | Особенности | Рабочее давление | Рабочая температура | Размер резьбы | Тип крепления | Материал | Цвет |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZUSA-PF-10534Pipe Fitting - Brass - Class 125 |
4 |
|
- |
- | Bulk | Active | X-Fitting | Threaded | - | - | - | - | NPT 3 | Free Hanging (In-Line) | Brass | - |
|
|
ZUSA-PF-15024Pipe Nipple - Aluminum - Schedul |
7 |
|
- |
- | Bulk | Active | Pipe Nipple | Threaded | - | - | - | - | NPT 3 | - | Aluminum | Silver |
|
|
ZUSA-PF-10448Pipe Fitting - Brass - Class 125 |
7 |
|
- |
- | Bulk | Active | T-Fitting | Threaded | - | - | - | - | NPT 4 | Free Hanging (In-Line) | Brass | - |
|
|
ZUSA-PF-9555Pipe Fitting - Aluminum - Class |
15 |
|
- |
- | Bulk | Active | X-Fitting | Threaded | - | - | - | - | NPT 4 | Free Hanging (In-Line) | Aluminum | Silver |
|
|
ZUSA-PF-15025Pipe Nipple - Aluminum - Schedul |
5 |
|
- |
- | Bulk | Active | Pipe Nipple | Threaded | - | - | - | - | NPT 4 | - | Aluminum | Silver |
|
QS-G1/4-8PUSH-IN FITTING |
18 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 8mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-1/4-10PUSH-IN FITTING |
14 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 10mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QSF-1/4-6-BPUSH-IN FITTING |
10 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|

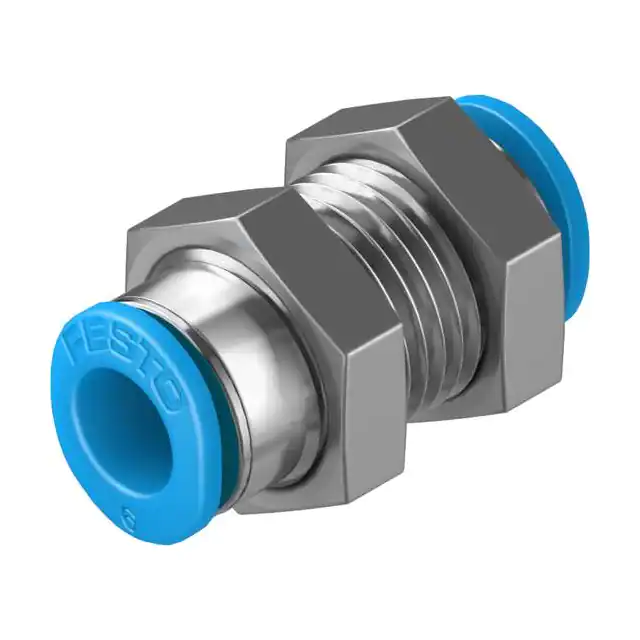

QSMS-6PUSH-IN BULKHEAD CONNECTOR |
16 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In | 6mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | - | Bulkhead | Nickel Plated Brass | - |
|
QSL-G1/4-10PUSH-IN L-FITTING |
9 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 10mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | G1/4 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|

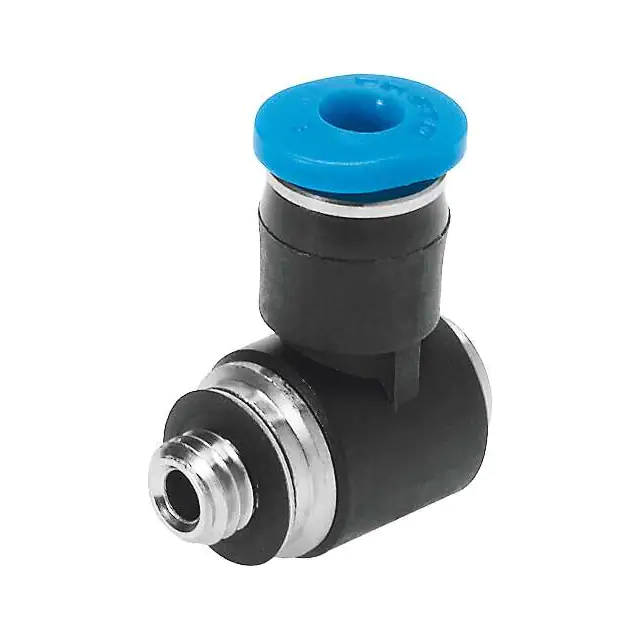

QSMLV-M5-4-IPUSH-IN L-FITTING |
6 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 4mm OD Tubing | Orientable | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | M5 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
QSL-1/2-12PUSH-IN L-FITTING |
12 |
|
Таблицы данных |
QS | Bulk | Active | Elbow Fitting | Push-In to Threaded | 12mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/2 | Free Hanging (In-Line) | Polybutylene Terephthalate (PBT) | - |
|
NPFC-S-2M5-FSLEEVE |
20 |
|
Таблицы данных |
- | Bulk | Active | Straight Fitting | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | M5 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
NPFC-D-G18-G14-MDOUBLE NIPPLE |
19 |
|
Таблицы данных |
- | Bulk | Active | Adapter | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | G1/8, G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
NPFC-R-G18-M5-FMREDUCING NIPPLE |
6 |
|
Таблицы данных |
- | Bulk | Active | Adapter | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | G1/8, M5 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
|
NPFC-D-2G14-MDOUBLE NIPPLE |
20 |
|
Таблицы данных |
- | Bulk | Active | Adapter | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
NPFC-R-G18-M5-MFREDUCING NIPPLE |
10 |
|
Таблицы данных |
- | Bulk | Active | Adapter | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | G1/8, M5 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
|
NPFC-R-G14-G18-FMREDUCING NIPPLE |
19 |
|
Таблицы данных |
- | Bulk | Active | Adapter | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | G1/8, G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
|
NPFC-R-G14-G18-MFREDUCING NIPPLE |
11 |
|
Таблицы данных |
- | Bulk | Active | Adapter | Threaded | - | - | -14 ~ 725 PSI (-1 ~ 50 bar) | -20°C ~ 150°C | G1/8, G1/4 | Free Hanging (In-Line) | Nickel Plated Brass | - |
|
QS-1/8-4PUSH-IN FITTING |
20 |
|
Таблицы данных |
QS | Bulk | Active | Straight Fitting | Push-In to Threaded | 4mm OD Tubing | - | -14 ~ 87 PSI (-1 ~ 6 bar) | -10°C ~ 80°C | R1/8 | Free Hanging (In-Line) | Nickel Plated Brass | - |
