Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

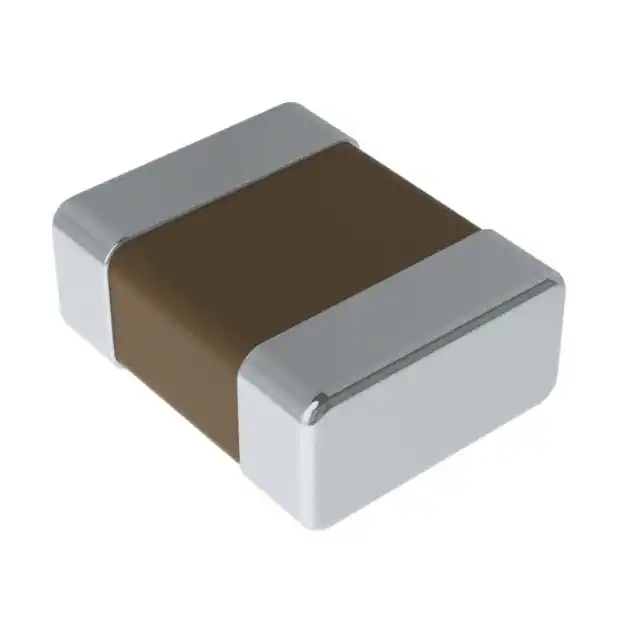

-2,00x1,60x,80mm.jpg)
|
CIGT201608EM1R0SNEFIXED IND 1UH SMD Samsung Electro-Mechanics |
0 |
|
- |
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±0.3nH | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - |
|
|
CIGT2016R6MH100SNEFIXED IND 10UH SMD Samsung Electro-Mechanics |
0 |
|
- |
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 10 µH | ±0.3nH | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - |
|
|
CIGT252008LM2R2SNEFIXED IND 2.2UH SMD Samsung Electro-Mechanics |
0 |
|
- |
CIGT | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 2.2 µH | ±0.3nH | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | - |
|
|
CIGW201610GL1R0MLEFIXED IND 1UH 3.4A 49 MOHM SMD Samsung Electro-Mechanics |
0 |
|
- |
CIGW | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 3.4 A | 2.9A | Shielded | 49mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |

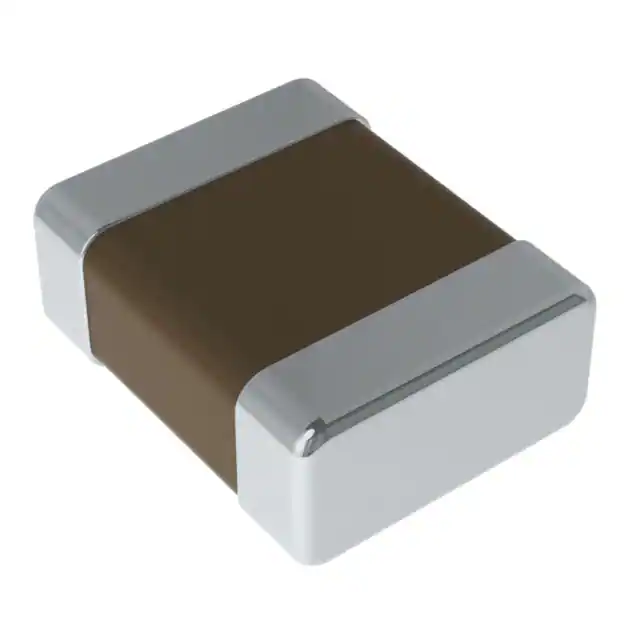

-2,5x2,0x1,00mm.jpg)
|
CIGW252010EH4R7SNEFIXED IND 4.7UH SMD Samsung Electro-Mechanics |
0 |
|
- |
CIGW | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±0.3nH | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - |
|
|
CIGW252012GM1R0MNEFIXED IND 1UH SMD Samsung Electro-Mechanics |
0 |
|
- |
CIGW | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | - |
|
|
CIGW252012GM6R8MNEFIXED IND 6.8UH 1.3A 250MOHM SMD Samsung Electro-Mechanics |
0 |
|
- |
CIGW | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 1.3 A | - | Shielded | 250mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |

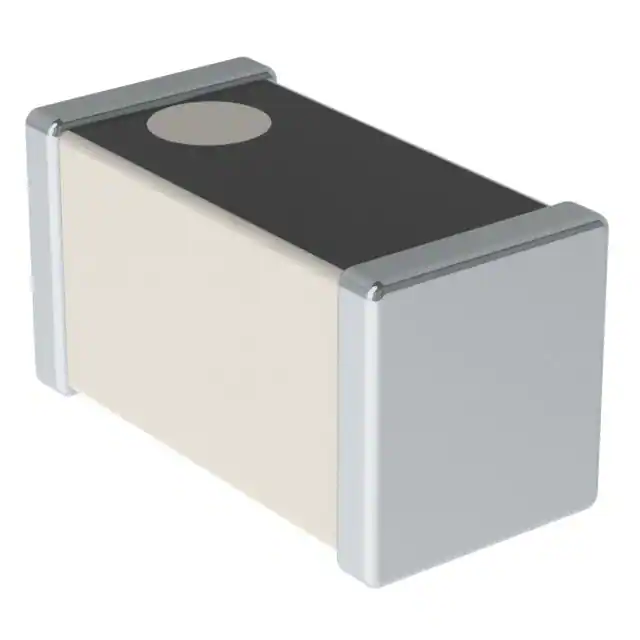

 CIH02T 1,00x,50x,55.jpg)
|
CIH02T2N7SNCFIXED IND 2.7NH 200MA 800MOHM SM Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIH02T | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.7 nH | ±0.3nH | 200 mA | - | Unshielded | 800mOhm Max | 2 @ 100MHz | 7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 (0402 Metric) | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
.jpg)
|

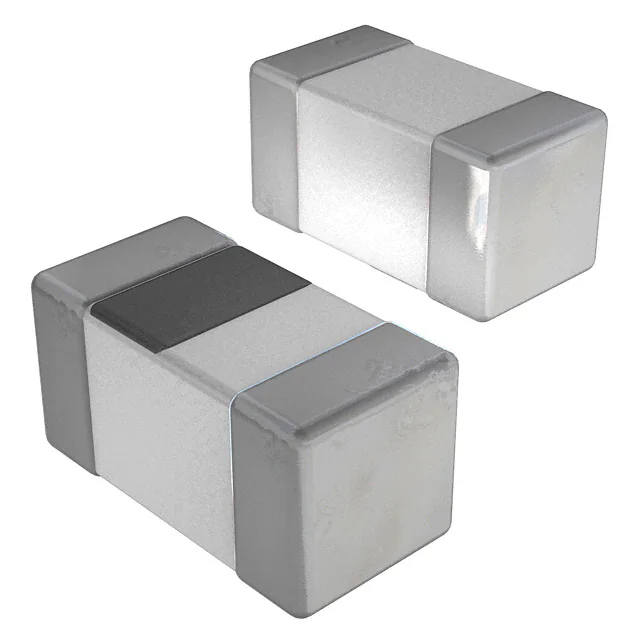

CIH03Q1N0SNCFIXED IND 1NH 490MA 90 MOHM SMD Samsung Electro-Mechanics |
0 |
|
- |
CIH03Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 nH | ±0.3nH | 490 mA | - | Unshielded | 90mOhm Max | 24 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
CIH03Q3N3SNCFIXED IND 3.3NH 270MA 300MOHM SM Samsung Electro-Mechanics |
0 |
|
- |
CIH03Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3.3 nH | ±0.3nH | 270 mA | - | Unshielded | 300mOhm Max | 18 @ 500MHz | 8.1GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
