Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

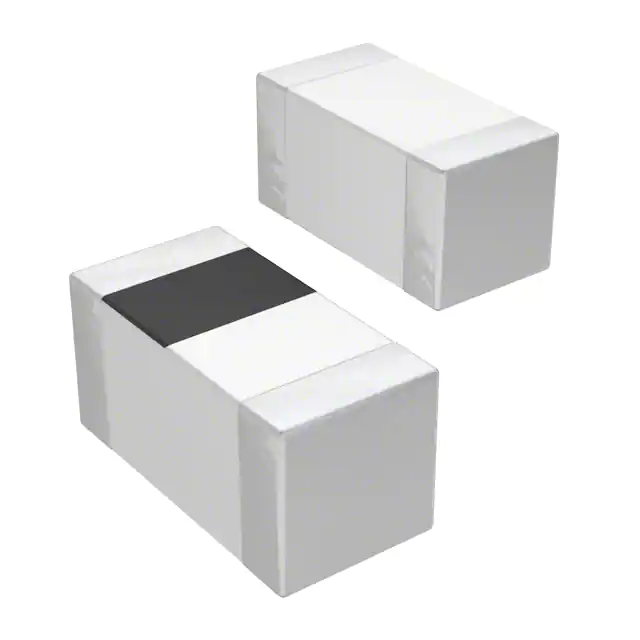

CIH10T39NJNCFIXED IND 39NH 400MA 600MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 39 nH | ±5% | 400 mA | - | Unshielded | 600mOhm Max | 12 @ 100MHz | 1.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH10T56NJNCFIXED IND 56NH 400MA 750MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 56 nH | ±5% | 400 mA | - | Unshielded | 750mOhm Max | 12 @ 100MHz | 900MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH10TR12JNCFIXED IND 120NH 300MA 1.2OHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 120 nH | ±5% | 300 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 500MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH10TR27JNCFIXED IND 270NH 200MA 1.5OHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 270 nH | ±5% | 200 mA | - | Unshielded | 1.5Ohm Max | 8 @ 100MHz | 400MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|

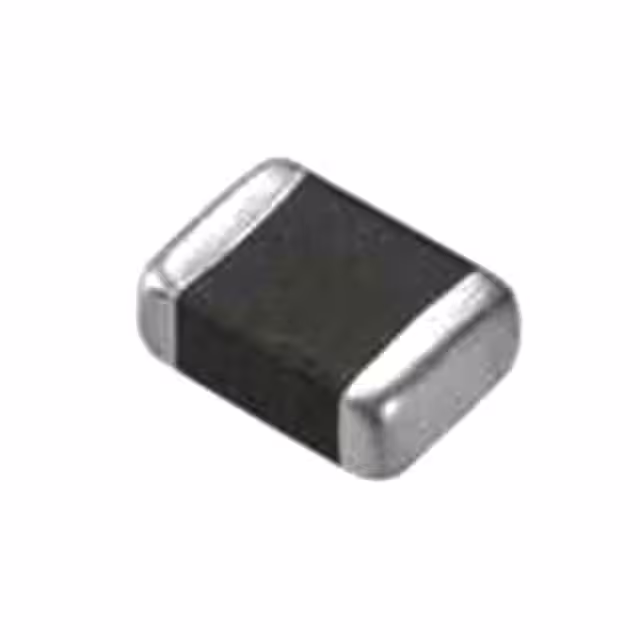

CIG22E1R0SNEFIXED IND 1UH Samsung Electro-Mechanics |
0 |
|
- |
CIG22E | - | Tape & Reel (TR) | Obsolete | - | - | 1 µH | - | - | - | Shielded | - | - | - | - | - | 1 MHz | - | - | - | - | 0.039" (1.00mm) |
-2,5x2,0x1,00mm.jpg)
|
CIG22E2R2MNEFIXED IND 2.2UH 1.3A 150MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG22E | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 1.3 A | - | Shielded | 150mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CIG22ER47MNEFIXED IND 470NH 3.2A 36 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG22E | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 3.2 A | - | Shielded | 36mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-2,00x1.25x,80mm.jpg)
|
CIGT201206EH1R0MNEFIXED IND 1UH 1.8A 110 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIGT | 0805 (2012 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Thin Film | Metal Composite | 1 µH | ±20% | 1.8 A | 2.4A | Shielded | 110mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
|
CIGT252007LM1R0MNCFIXED IND 1UH 2.5A 60 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIGT | 1008 (2520 Metric) | Tape & Reel (TR) | Discontinued at Digi-Key | Thin Film | Metal Composite | 1 µH | ±20% | 2.5 A | 3A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.028" (0.70mm) |
|
|
CIG22ER50SNEFIXED IND 500NH SMD Samsung Electro-Mechanics |
0 |
|
- |
CIG22E | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 500 nH | ±0.3nH | - | - | Shielded | - | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
