Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

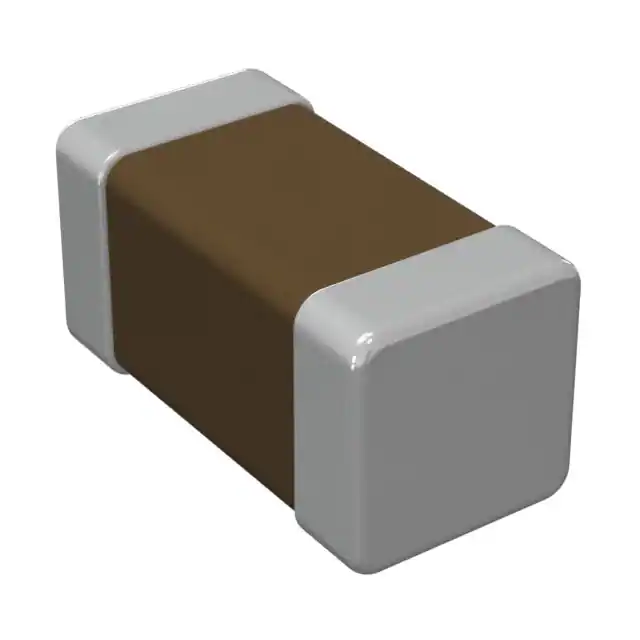

CIH10T82NJNCFIXED IND 82NH 350MA 950MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 82 nH | ±5% | 350 mA | - | Unshielded | 950mOhm Max | 12 @ 100MHz | 600MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIH10TR10JNCFIXED IND 100NH 350MA 1 OHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIH10T | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 100 nH | ±5% | 350 mA | - | Unshielded | 1Ohm Max | 12 @ 100MHz | 600MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
-,80mm.jpg)
|
CIG10WR47MNCFIXED IND 470NH 1.1A 150MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG10W | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 1.1 A | - | Shielded | 150mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIG10W2R2MNCFIXED IND 2.2UH 750MA 300MOHM SM Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG10W | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 750 mA | - | Shielded | 300mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIG10W3R3MNCFIXED IND 3.3UH 700MA 400MOHM SM Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG10W | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3.3 µH | ±20% | 700 mA | - | Shielded | 400mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
-2,00x1.25x,80mm.jpg)
|
CIG21F1R0MNCFIXED IND 1UH 800MA 190 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG21F | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 800 mA | - | Shielded | 190mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
|
|
CIG21W1R5MNEFIXED IND 1.5UH 960MA 150MOHM SM Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG21W | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.5 µH | ±25% | 960 mA | - | Shielded | 150mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | - |
-2,5x2,0x1,00mm.jpg)
|
CIG22H1R2MNEFIXED IND 1.2UH 1.5A 94 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG22H | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.2 µH | ±20% | 1.5 A | 2.8A | Shielded | 94mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CIG22H3R3MNEFIXED IND 3.3UH 1A 133 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG22H | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 3.3 µH | ±20% | 1 A | 1A | Shielded | 133mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
CIH05T1N2CNCFIXED IND 1.2NH 300MA 120MOHM SM Samsung Electro-Mechanics |
0 |
|
- |
CIH05T | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.2 nH | ±0.2nH | 300 mA | - | Unshielded | 120mOhm Max | 8 @ 100MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - |
