Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

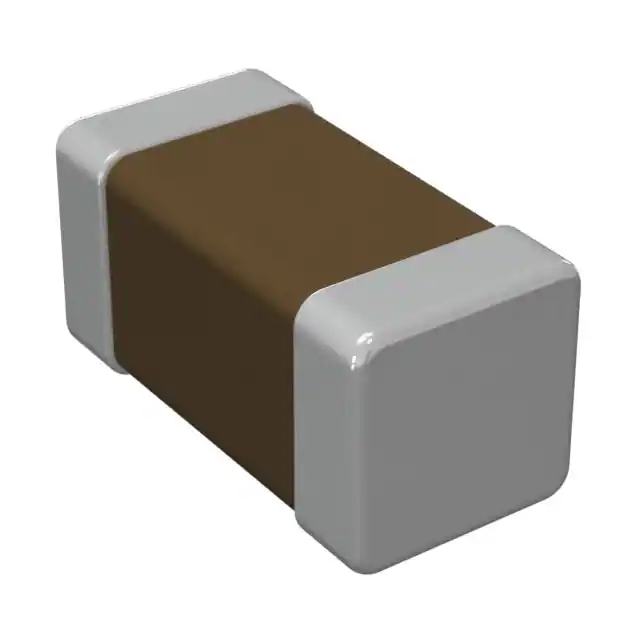

-,80mm.jpg)
|
CIL10NR68KNCFIXED IND 680NH 35MA 1.7 OHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIL10 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 680 nH | ±10% | 35 mA | - | Shielded | 1.7Ohm Max | 15 @ 25MHz | 80MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
CIL10NR82KNCFIXED IND 820NH 35MA 2.1 OHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIL10 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 820 nH | ±10% | 35 mA | - | Shielded | 2.1Ohm Max | 15 @ 25MHz | 75MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
CIL10Y100KNCFIXED IND 10UH 5MA 2.55 OHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIL10 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 10 µH | ±10% | 5 mA | - | Shielded | 2.55Ohm Max | 35 @ 2MHz | 17MHz | - | -40°C ~ 85°C | 2 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
CIL21J1R0KNEFIXED IND 1UH 50MA 300 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIL21 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 1 µH | ±10% | 50 mA | - | Shielded | 300mOhm Max | 45 @ 10MHz | 75MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
CIL21J1R8KNEFIXED IND 1.8UH 50MA 400MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIL21 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 1.8 µH | ±10% | 50 mA | - | Shielded | 400mOhm Max | 45 @ 10MHz | 55MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
CIL21J2R2KNEFIXED IND 2.2UH 30MA 500MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIL21 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 2.2 µH | ±10% | 30 mA | - | Shielded | 500mOhm Max | 45 @ 10MHz | 50MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
CIL21J4R7KNEFIXED IND 4.7UH 30MA 900MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIL21 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 4.7 µH | ±10% | 30 mA | - | Shielded | 900mOhm Max | 45 @ 10MHz | 35MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CIL21N47NKNEFIXED IND 47NH 300MA 200MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIL21 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 47 nH | ±10% | 300 mA | - | Shielded | 200mOhm Max | 15 @ 50MHz | 320MHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
|
CIL21N47NMNEFIXED IND 47NH 300MA 200MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIL21 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 47 nH | ±20% | 300 mA | - | Shielded | 200mOhm Max | 15 @ 50MHz | 320MHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CIL21N68NMNEFIXED IND 68NH 300MA 200MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIL21 | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | - | Ferrite | 68 nH | ±20% | 300 mA | - | Shielded | 200mOhm Max | 15 @ 50MHz | 280MHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
