Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12146AG1VX408TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
Таблицы данных |
12000 | Bulk | Active | Panel Mount | DPDT | On-On | 4A (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
12146AK2VX545TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DP3T | On-On | 4A (DC) | - | 30 V | Locking Lever | 19.38mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
12146AK1VX545TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DP3T | On-On | 4A (DC) | - | 30 V | Locking Lever | 19.38mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
3539003B010TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
Таблицы данных |
3500 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (DC) | - | 28 V | Flatted | 24.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
4TL11-31SWITCH TOGGLE 4PDT 15A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | 4PDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
3536021G002TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
Таблицы данных |
3500 | Bulk | Active | Panel Mount | SPDT | On-On | 15A (DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
12144AD23VSWITCH TOGGLE SP3T 4A 125V |
0 |
|
Таблицы данных |
12000 | Bulk | Active | Panel Mount | SP3T | On-On-On | 4A (AC/DC) | 125 V | 30 V | Locking Lever | 20.60mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
|
12TW19-7-A002SWITCH TOGGLE DPDT 5A 125V |
0 |
|
Таблицы данных |
TW | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC) | 125 V | - | Flatted | 25.40mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Black Actuator | -65°C ~ 71°C |
|
|
12249A3VTOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 4A (DC) | - | 30 V | Locking Lever | 19.38mm | Non-Illuminated | - | - | PC Pin | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
3547003N000TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
Таблицы данных |
3500 | Bulk | Active | Panel Mount | SPST | Mom-Off-Mom | 15A (DC) | - | 28 V | Flatted | 24.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
6421A03LMK2VSWITCH TOGGLE SPST 10A 125V |
0 |
|
Таблицы данных |
6000 | Tray | Active | Panel Mount | SPST | On-Off | 10A (AC), 6.5A (DC) | 125 V | 30 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | Front Panel Sealing | -40°C ~ 85°C |
|
|
3548003N000TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
Таблицы данных |
3500 | Bulk | Active | Panel Mount | SPST | On-Off-Mom | 15A (DC) | - | 28 V | Flatted | 24.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
2TL11-3DSWITCH TOGGLE DPDT 15A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
00227064SWITCH TOGGLE SPDT 250A 24V |
0 |
|
- |
- | Bag | Active | Panel Mount | SPDT | Mom-Off-Mom | 250A (DC) | - | 24 V | Standard Round | - | Non-Illuminated | - | - | Connector | - | - | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|

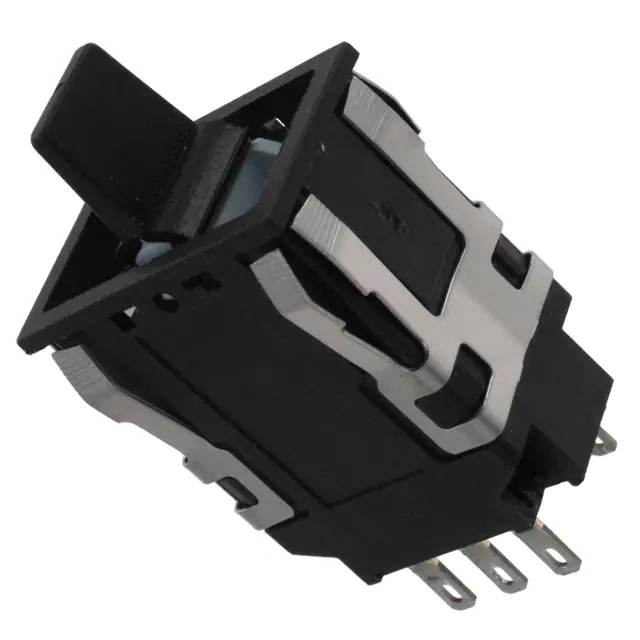

AML23EBA2BC06SWITCH TOGGLE DPDT 100MA 125V |
0 |
|
Таблицы данных |
AML23 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-Mom | 100mA (AC/DC) | 125 V | 125 V | Paddle | - | Non-Illuminated | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | - | - |
|
|
2TL62-5SWITCH TOGGLE DPDT 10A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 10A (AC) | 125 V | - | Flatted | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL11-550SWITCH TOGGLE DPDT 11A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | DPDT | On-On-Mom | 11A (AC), 18A (DC) | 125 V | 28 V | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
12149AG3VTOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 4A (DC) | - | 30 V | Locking Lever | 19.38mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
3533001B010TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
Таблицы данных |
3500 | Bulk | Active | Panel Mount | SPST | Off-Mom | 15A (DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
12146AD2K1VTOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DP3T | On-On | 4A (DC) | - | 30 V | Locking Lever | 19.38mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
