БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12146A2VX545TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
Таблицы данных |
12000 | Bulk | Active | Panel Mount | DPDT | On-On | 4A (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|

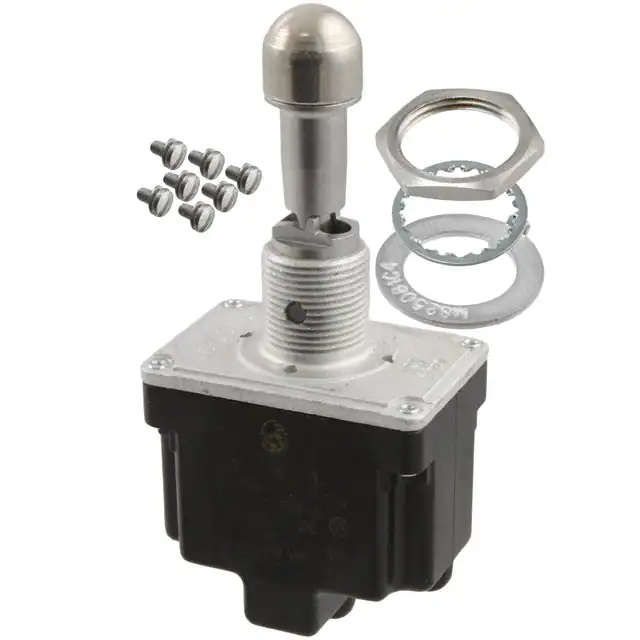

2TL1-50MSWITCH TOGGLE DPDT 10A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | DPDT | On-On-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

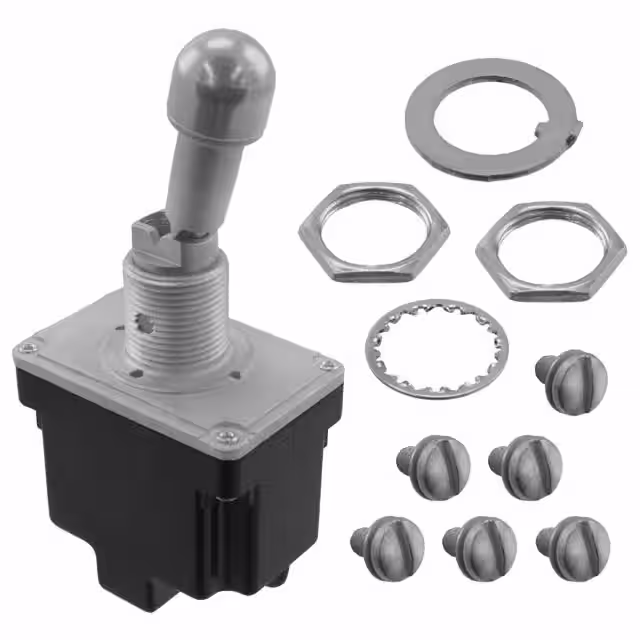

2TL1-50ESWITCH TOGGLE DPDT 10A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | DPDT | On-On-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
1520231-1SWITCH TOGGLE SPST |
0 |
|
Таблицы данных |
- | Bulk | Active | Panel Mount | SPST | On-Off | - | - | - | Standard Round | - | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
|
11159ASWITCH TOGGLE 3PDT 4A 125V |
0 |
|
Таблицы данных |
11000 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 11.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
2TL5-2SWITCH TOGGLE DPST 15A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL11-6FSWITCH TOGGLE DPST-NO 10A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | DPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
1TL62-6SWITCH TOGGLE SPST-NO 10A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Flatted | 16.51mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
12166ASWITCH TOGGLE 4PDT 4A 125V |
0 |
|
Таблицы данных |
12000 | Bulk | Active | Panel Mount | 4PDT | On-On | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
61NT887-3SEALED OI SWITCH |
0 |
|
- |
NT | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | -40°C ~ 71°C |
|
|
3539001NA00TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
Таблицы данных |
3500 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (DC) | - | 28 V | Standard Round | 20.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|

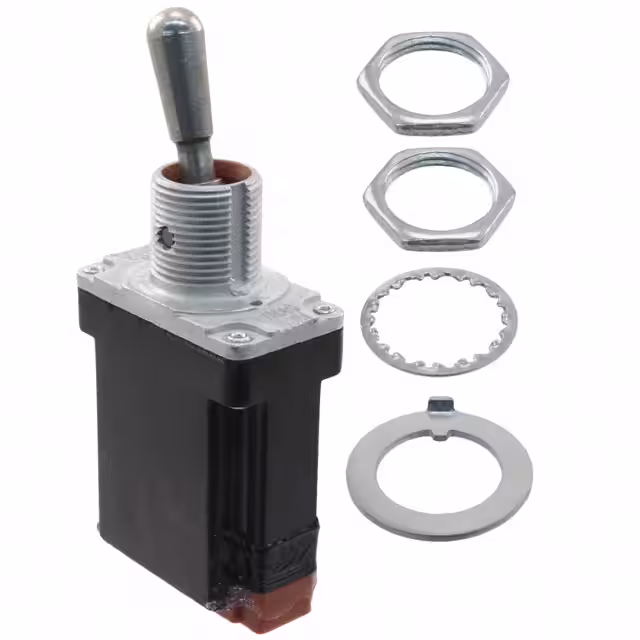

101TL2-8SWITCH TOGGLE SPDT 7.5A 115V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | SPDT | On-Mom | 7.5A (AC/DC) | 115 V | 30 V | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
3544231N002TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
Таблицы данных |
3500 | Bulk | Active | Panel Mount | DP3T | On-On-Mom | 15A (DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
12146A10TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DP3T | On-On | 4A (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
1TW1-8SWITCH TOGGLE SPDT 5A 125V |
0 |
|
Таблицы данных |
TW | Bulk | Active | Panel Mount | SPDT | On-Mom | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Turret | Circular - 6.60mm Dia | 1/4-40 | Environment Sealed | - | -65°C ~ 71°C |
|
|
AML25FBF2AA05YXSWITCH TOGGLE SPDT 3A 125V |
0 |
|
Таблицы данных |
AML25 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Paddle | - | Illuminated | LED, Yellow | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | - | - |
|
|
AML25FBF2AA05GXSWITCH TOGGLE SPDT 3A 125V |
0 |
|
Таблицы данных |
AML25 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 3A (AC), 2A (DC) | 125 V | 24 V | Paddle | - | Illuminated | LED, Green | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | - | - |
|
|
3537001G002X2309SEALED POWER TOGGLE SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12147AD2KTOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 4A (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
12148AD2KTOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 4A (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
