БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2NT887-10SWITCH TOGGLE SP3T 15A 125V |
0 |
|
Таблицы данных |
NT | Bulk | Active | Panel Mount | SP3T | On-On-On | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -40°C ~ 71°C |
|
|
2TL126-70-A02SWITCH TOGGLE DPDT 11A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | DPDT | Mom-On-Mom | 11A (AC), 18A (DC) | 125 V | 28 V | Flatted | 29.13mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Black Actuator | -65°C ~ 71°C |
|
|
122441RAD2G12X408SWITCH TOGGLE SP3T 4A 125V |
0 |
|
Таблицы данных |
12000 | Bulk | Active | Panel Mount | SP3T | On-On-Mom | 4A (AC/DC) | 125 V | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | PC Pin | Circular - 12.00mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
|
1TL11-1LSWITCH TOGGLE SPDT 15A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
3531001GD00SWITCH TOGGLE SPST 20A 28V |
0 |
|
Таблицы данных |
3500 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC), 15A (DC) | - | 28 V | Locking Lever | 20.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Matte Black Finish | -40°C ~ 85°C |
|
|
3541021G000TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
Таблицы данных |
3500 | Bulk | Active | Panel Mount | DPST | On-Off | 15A (DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|
|
12246AD2G12X408TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
Таблицы данных |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
12246AD2GKTOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
Таблицы данных |
12000 | Bulk | Active | Panel Mount | DPDT | On-On | 100mA (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | PC Pin | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
12246AD2KX545TOGGLE SWITCH 12000 HIGH SPEC |
0 |
|
- |
12000 | Bulk | Active | Panel Mount | DP3T | On-On | 4A (DC) | - | 30 V | Standard Round | 17.30mm | Non-Illuminated | - | - | PC Pin | Circular - 12.00mm Dia | 15/32-32 | - | - | -40°C ~ 85°C |
|
|
3547003N002TOGGLE SWITCH 3500 IP67 SEALED |
0 |
|
Таблицы данных |
3500 | Bulk | Active | Panel Mount | SPST | Mom-Off-Mom | 15A (DC) | - | 28 V | Flatted | 24.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67/IP69K - Dust Tight, Water Resistant, Waterproof | - | -40°C ~ 85°C |
|

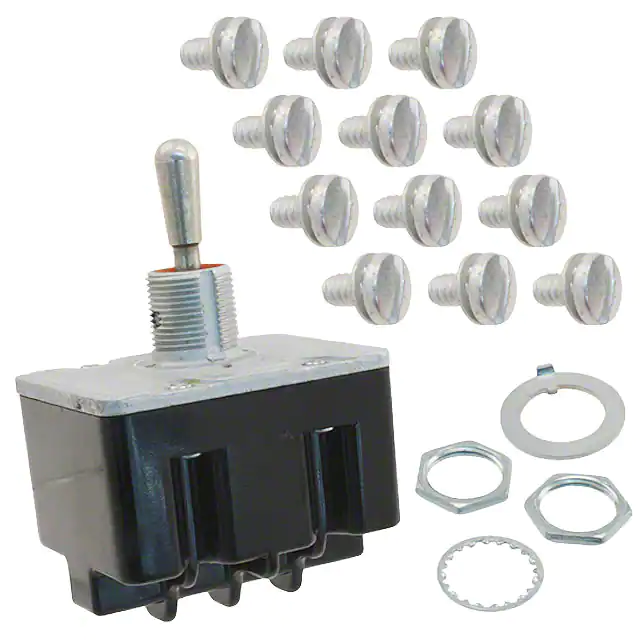

4TL1-21KSWITCH TOGGLE 4PST 15A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | 4PST | On-Off | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
4TL1-21FSWITCH TOGGLE 4PST 15A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | 4PST | On-Off | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4TL1-31KSWITCH TOGGLE 4PDT 15A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | 4PDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
665103LMSWITCH TOGGLE 3PST 10A 125V |
0 |
|
Таблицы данных |
6000 | Bulk | Active | Panel Mount | 3PST | On-Off | 10A (AC), 6.5A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | - | Matte Black Finish | -40°C ~ 85°C |
|
101TL1-6SWITCH TOGGLE SPST-NO 10A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4TL11-1SWITCH TOGGLE 4PDT 15A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4TL1-1MSWITCH TOGGLE 4PDT 15A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
4TL11-8SWITCH TOGGLE 4PDT 10A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | 4PDT | On-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL69-7SWITCH TOGGLE DPDT 10A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 20.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL84-7RSWITCH TOGGLE DPDT 10A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 28.20mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
