Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-,80mm.jpg)
|
CIG10F1R0MNCFIXED IND 1UH 700MA 300 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG10F | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 700 mA | - | Shielded | 300mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
-2,5x2,0x1,00mm.jpg)
|
CIG22B2R2MNEFIXED IND 2.2UH 1.1A 183MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG22B | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 1.1 A | 1.2A | Shielded | 183mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
CIG22H1R0MAEFIXED IND 1UH 1.8A 65 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG22H_MAE | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 1.8 A | 2A | Shielded | 65mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |

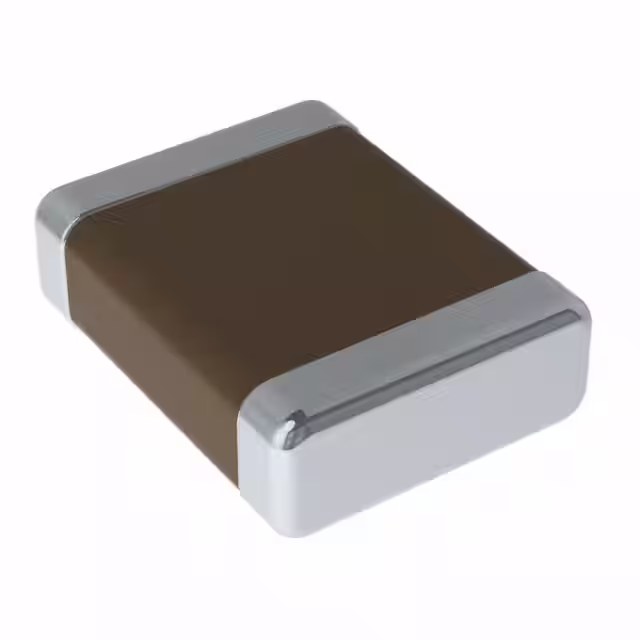

-3,20mmx2,50mm.jpg)
|
CIG32W1R0MNEFIXED IND 1UH 1.5A 60 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG32W | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 1.5 A | 2.7A | Shielded | 60mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
CIG32H2R2MNEFIXED IND 2.2UH 1.6A 125MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG32H | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 1.6 A | 2.9A | Shielded | 125mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
.jpg)
|
CIH03T6N8JNCFIXED IND 6.8NH 150MA 480MOHM SM Samsung Electro-Mechanics |
0 |
|
- |
CIH03T | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 6.8 nH | ±5% | 150 mA | - | Unshielded | 480mOhm Max | 5.5 @ 100MHz | 4.1GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
CIH03T12NJNCFIXED IND 12NH 150MA 700MOHM SMD Samsung Electro-Mechanics |
0 |
|
- |
CIH03T | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 12 nH | ±5% | 150 mA | - | Unshielded | 700mOhm Max | 6 @ 100MHz | 3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
CIH03Q1N0CNCFIXED IND 1NH 490MA 90 MOHM SMD Samsung Electro-Mechanics |
0 |
|
- |
CIH03Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 nH | ±0.2nH | 490 mA | - | Unshielded | 90mOhm Max | 13 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
CIH03Q1N2CNCFIXED IND 1.2NH 420MA 120MOHM SM Samsung Electro-Mechanics |
0 |
|
- |
CIH03Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1.2 nH | ±0.2nH | 420 mA | - | Unshielded | 120mOhm Max | 13 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
|
|
CIH03Q2N2CNCFIXED IND 2.2NH 330MA 200MOHM SM Samsung Electro-Mechanics |
0 |
|
- |
CIH03Q | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 nH | ±0.2nH | 330 mA | - | Unshielded | 200mOhm Max | 13 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.024" L x 0.012" W (0.60mm x 0.30mm) | - |
