Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-2,00x1.25x,80mm.jpg)
|
CIGT201210UHR24MNEFIXED IND 240NH 4.4A 22MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIGT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 240 nH | ±20% | 4.4 A | 6.6A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
-2,5x2,0x1,00mm.jpg)
|
CIG22HR47MAEFIXED IND 470NH 2.1A 44 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIG22H_MAE | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 2.1 A | 3.8A | Shielded | 44mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
-,80mm.jpg)
|
CIG10FR47MNCFIXED IND 470NH 800MA 200MOHM SM Samsung Electro-Mechanics |
12 |
|
Таблицы данных |
CIG10F | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 470 nH | ±20% | 800 mA | - | Shielded | 200mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - |
|
|
CIG22B1R0MNEFIXED IND 1UH 1.2A 125 MOHM SMD Samsung Electro-Mechanics |
1 |
|
Таблицы данных |
CIG22B | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 1 µH | ±20% | 1.2 A | 2A | Shielded | 125mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |

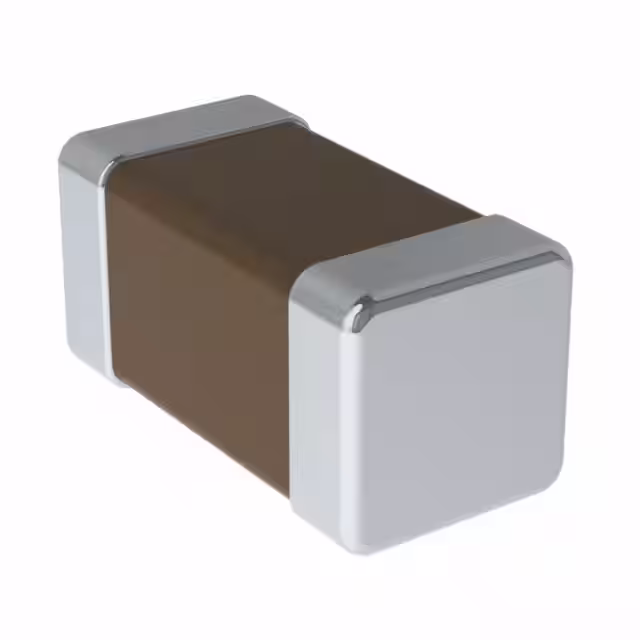

-1,60x,80x,80mm.jpg)
|
CIGT1608R6EH1R0MNCFIXED IND 1UH 1.7A 160 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIGT | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 1.7 A | 1.7A | Shielded | 160mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.026" (0.65mm) |
|
|
CIGT160808XMR24MNCFIXED IND 240NH 4.9A 24 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIGT | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 240 nH | ±20% | 4.9 A | 4.1A | Shielded | 24mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
CIGT201210UH1R0MNEFIXED IND 1UH 2.8A 71 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIGT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 2.8 A | 3.3A | Shielded | 71mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CIGT201210UH1R5MNEFIXED IND 1.5UH 2.1A 97MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIGT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1.5 µH | ±20% | 2.1 A | 2.6A | Shielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CIGT201210UHR33MNEFIXED IND 330NH 4A 26 MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIGT | 0805 (2012 Metric) | Cut Tape (CT) | Active | Thin Film | Metal Composite | 330 nH | ±20% | 4 A | 5.4A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
CIGT252008LHR47MNEFIXED IND 470NH 4.2A 29MOHM SMD Samsung Electro-Mechanics |
0 |
|
Таблицы данных |
CIGT | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 470 nH | ±20% | 4.2 A | 5.5A | Shielded | 29mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.031" (0.80mm) |
