Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
18R225CFIXED IND 2.2MH 300MA 2.2 OHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 2.2 mH | ±10% | 300 mA | - | Unshielded | 2.2Ohm Max | 106 @ 50kHz | 1.41MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R254CFIXED IND 250UH 800MA 255MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 250 µH | ±10% | 800 mA | - | Unshielded | 255mOhm Max | 40 @ 100kHz | 3.85MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R335CFIXED IND 3.3MH 220MA 3.5 OHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 3.3 mH | ±10% | 220 mA | - | Unshielded | 3.5Ohm Max | 139 @ 50kHz | 1.04MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R472CFIXED IND 4.72UH 5.35A 9MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 4.72 µH | ±10% | 5.35 A | - | Unshielded | 9mOhm Max | 106 @ 1MHz | 35.1MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R682CFIXED IND 6.8UH 4.15A 12MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 6.8 µH | ±10% | 4.15 A | - | Unshielded | 12mOhm Max | 73 @ 500kHz | 26.3MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R685CFIXED IND 6.8MH 150MA 7 OHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 6.8 mH | ±10% | 150 mA | - | Unshielded | 7Ohm Max | 143 @ 40kHz | 710kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
27T333CFIXED IND 33UH 400MA 1.3 OHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2700T | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 33 µH | ±20% | 400 mA | - | Unshielded | 1.3Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.254" L x 0.213" W (6.45mm x 5.40mm) | 0.041" (1.05mm) |
|

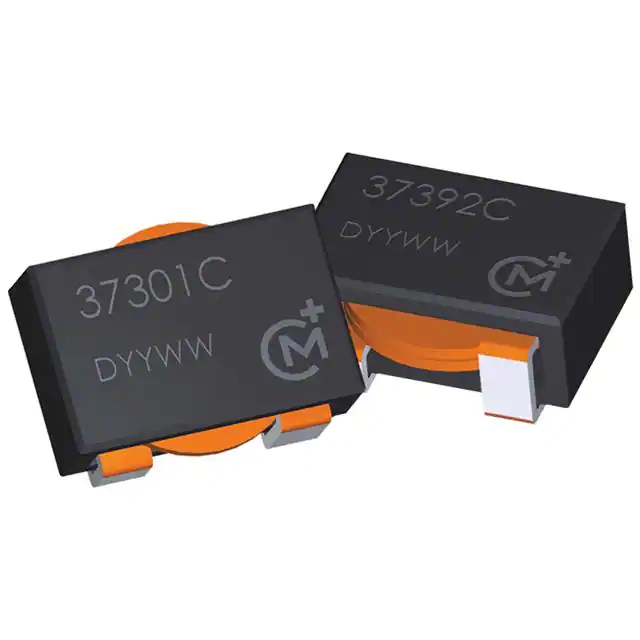

37301CFIXED IND 300NH 19.5A 0.9MOHM SM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
3700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 300 nH | ±20% | 19.5 A | 39A | Unshielded | 0.9mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.453" W (14.50mm x 11.50mm) | 0.228" (5.80mm) |
|
|
37501CFIXED IND 500NH 19.5A 1 MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
3700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 500 nH | ±20% | 19.5 A | 30A | Unshielded | 1mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.453" W (14.50mm x 11.50mm) | 0.228" (5.80mm) |
|
|
37951CFIXED IND 950NH 18A 1.3 MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
3700 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 950 nH | ±20% | 18 A | 25A | Unshielded | 1.3mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.453" W (14.50mm x 11.50mm) | 0.268" (6.80mm) |
