Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
17475CFIXED IND 4.7MH 90MA 13.6 OHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 4.7 mH | ±10% | 90 mA | - | Unshielded | 13.6Ohm Max | 150 @ 150kHz | 950kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17683CFIXED IND 68UH 850MA 260MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 68 µH | ±10% | 850 mA | - | Unshielded | 260mOhm Max | 90 @ 100kHz | 8.7MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17684CFIXED IND 680UH 280MA 2.4 OHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 680 µH | ±10% | 280 mA | - | Unshielded | 2.4Ohm Max | 120 @ 100kHz | 2.5MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
|
17686CFIXED IND 68MH 20MA 220 OHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1700 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 68 mH | ±10% | 20 mA | - | Unshielded | 220Ohm Max | 70 @ 50kHz | 200kHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | Radial Lead | 0.283" Dia (7.20mm) | 0.413" (10.50mm) |
|
29L105CFIXED IND 1MH 140MA 6.48 OHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2900L | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1 mH | - | 140 mA | - | Shielded | 6.48Ohm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.124" (3.15mm) |
|
|
29L334CFIXED IND 330UH 300MA 1.67OHM SM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2900L | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 330 µH | - | 300 mA | - | Shielded | 1.67Ohm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.124" (3.15mm) |
|

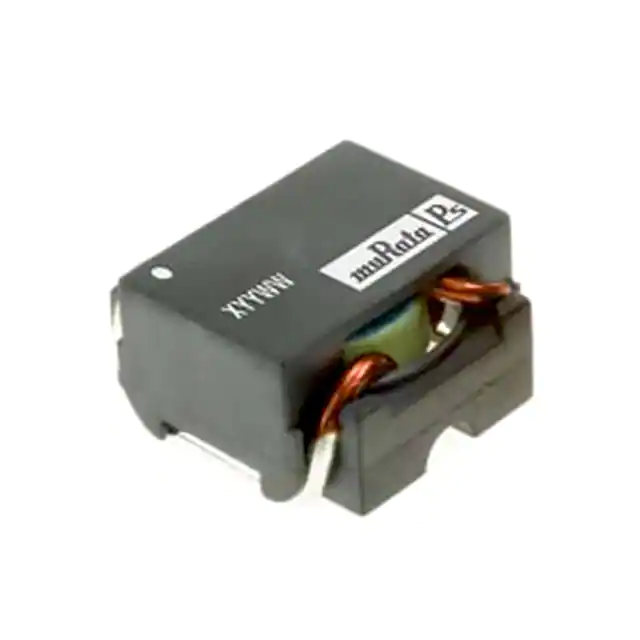

42282C-RFIXED IND 2.84UH 13.9A 3.5 MOHM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4200 | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 2.84 µH | ±15% | 13.9 A | - | Unshielded | 3.5mOhm Max | - | 116MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.390" (9.90mm) |
|
|
42422C-RFIXED IND 4.23UH 11.4A 5.2 MOHM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4200 | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 4.23 µH | ±15% | 11.4 A | - | Unshielded | 5.2mOhm Max | - | 90MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.669" L x 0.669" W (17.00mm x 17.00mm) | 0.390" (9.90mm) |
|
18R683CFIXED IND 68UH 1.35A 70 MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 68 µH | ±10% | 1.35 A | - | Unshielded | 70mOhm Max | 27 @ 100kHz | 8.29MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
|
|
18R223CFIXED IND 22UH 2.42A 25 MOHM TH Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
1800R | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 22 µH | ±10% | 2.42 A | - | Unshielded | 25mOhm Max | 51 @ 500kHz | 14.1MHz | - | 0°C ~ 70°C | 1 kHz | - | Through Hole | - | 0.539" Dia (13.70mm) | 0.626" (15.90mm) |
