Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

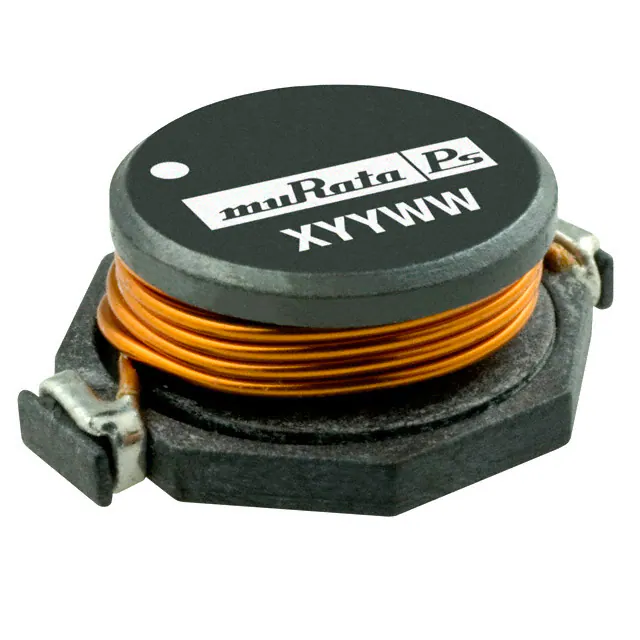

28153CFIXED IND 15UH 4.77A 28MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 15 µH | - | 4.77 A | - | Unshielded | 28mOhm Max | 31 @ 1MHz | 17.8MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
|
28155CFIXED IND 1.5MH 410MA 2.62OHM SM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 mH | - | 410 mA | - | Unshielded | 2.62Ohm Max | 19.8 @ 800kHz | 3.4MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
|
28332CFIXED IND 3.3UH 9.3A 7.5MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | - | 9.3 A | - | Unshielded | 7.5mOhm Max | 34.6 @ 1MHz | 42MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|
|
28333CFIXED IND 33UH 3.22A 63MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
2800 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | - | 3.22 A | - | Unshielded | 63mOhm Max | 42.8 @ 1MHz | 11.8MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.728" L x 0.598" W (18.50mm x 15.20mm) | 0.299" (7.60mm) |
|

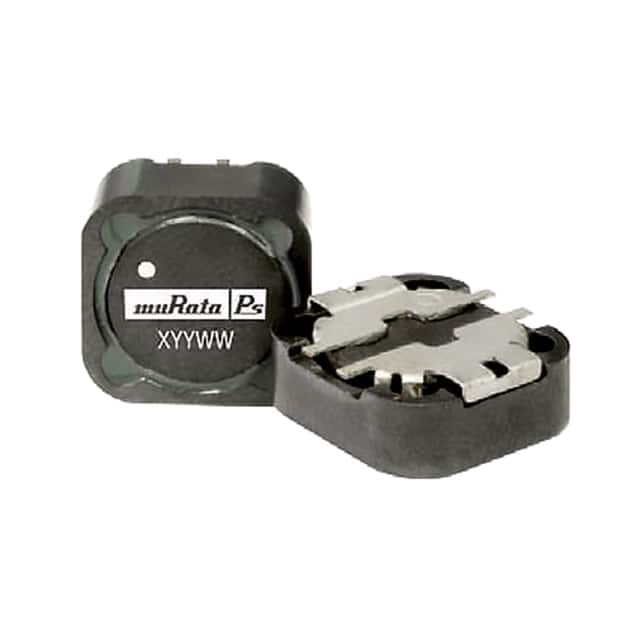

47100SCFIXED IND 10UH 3.8A 32.3MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 10 µH | ±20% | 3.8 A | - | Shielded | 32.3mOhm Max | 22 @ 1MHz | 22MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47101SCFIXED IND 100UH 1.3A 267MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 100 µH | ±20% | 1.3 A | - | Shielded | 267mOhm Max | 20 @ 800kHz | 8MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47220SCFIXED IND 22UH 2.7A 62.9MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±20% | 2.7 A | - | Shielded | 62.9mOhm Max | 29 @ 1MHz | 14MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47221SCFIXED IND 220UH 800MA 629MOHM SM Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 220 µH | ±20% | 800 mA | - | Shielded | 629mOhm Max | 20 @ 800kHz | 6MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47330SCFIXED IND 33UH 2.2A 91.1MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±20% | 2.2 A | - | Shielded | 91.1mOhm Max | 23 @ 1MHz | 13MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
|
|
47470SCFIXED IND 47UH 1.9A 168MOHM SMD Murata Power Solutions Inc. |
0 |
|
Таблицы данных |
4700S | Nonstandard, 4 Lead | Tape & Reel (TR) | Obsolete | Wirewound | - | 47 µH | ±20% | 1.9 A | - | Shielded | 168mOhm Max | 23 @ 1MHz | 11MHz | - | -40°C ~ 85°C | 10 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.197" (5.00mm) |
