Сбор данных (DAQ)
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Функция | Тип | Подключение шины | Переднее подключение | Количество входов и тип | Входной диапазон | Разрешение входа | Количество выходов и тип | Диапазон выхода | Разрешение выхода | Двунаправленные каналы | Счетчик/таймеры | Частота выборки (в секунду) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
779114-01DAQ DEVICE MULTIFUNCTION I/O PXI |
0 |
|
- |
- | Box | Obsolete | Multifunction I/O | DAQ Device | PXI | - | 32 - Analog (Single-Ended, 16 - Differential), 48 - Digital | ±10V | 16 Bits | 48 - Digital | - | - | 48 | 2 | 250k - Multiplexed |
|
|
779808-03DAQ DEVICE MULTIFUNC I/O USB 2.0 |
0 |
|
- |
M | Bulk | Obsolete | Multifunction I/O | DAQ Device | USB 2.0 | - | 16 - Analog (Single-Ended, 8 - Differential), 24 - Digital | ±10V | 16 Bits | 2 - Analog, 24 - Digital | ±10V | 16 Bits | 24 | 2 | 250k - Multiplexed |
|
|
6069-410-1756069-410-175 |
0 |
|
- |
MCC USB-1602/1608/1616 | Bulk | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Single-Ended, 8 - Differential) | - | 16 Bits | 2 - Analog | - | 16 Bits | 24 | 4 | 1M |
|
778316-01DAQ DEVICE ANALOG OUTPUT PCI |
0 |
|
- |
- | Box | Obsolete | Analog Output | DAQ Device | PCI | SCSI | 8 - Digital | - | - | 16 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | - | - |
|
197504-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
1 |
|
Таблицы данных |
M | Box | Obsolete | Multifunction I/O | DAQ Device | USB 2.0 | Generic (OEM) | 16 - Analog (Single-Ended, 8 - Differential), 56 - Digital | ±10.4V | 16 Bits | 2 - Analog, 56 - Digital | ±10V | 16 Bits | 56 | 2 | 400k - Multiplexed |
|
779069-01DAQ DEVICE MULTIFUNCTION I/O PCI |
0 |
|
Таблицы данных |
M | Box | Obsolete | Multifunction I/O | DAQ Device | PCI | VHDCI | 16 - Analog (Single-Ended, 8 - Differential), 24 - Digital | ±11V | 16 Bits | 24 - Digital | - | - | 24 | 2 | 1.25M - Multiplexed |
|

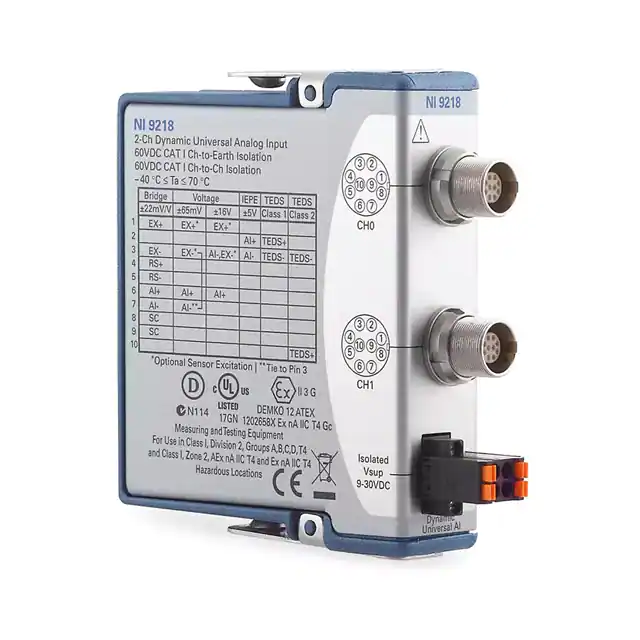

783367-01DAQ DEVICE ANALOG INPUT |
0 |
|
- |
C | Box | Active | Analog Input | Module | - | - | 2 - Analog | 60V | - | - | - | - | - | - | 51.2k - Multiplexed |
|
|
6069-410-1456069-410-145 |
0 |
|
- |
MCC DT9800 | Bulk | Active | Analog Output | DAQ Device | USB 2.0 | BNC | - | - | 24 Bits | 1 -Analog | - | 24 Bits | - | - | 105.4k |
|
779615-01DAQ DEVICE MULTIFUNCTION I/O PCI |
1 |
|
Таблицы данных |
M | Box | Obsolete | Multifunction I/O | DAQ Device | PCI | D-Sub | 8 - Analog (Single-Ended, 4 - Differential), 6 - Digital | ±10V | 16 Bits | 4 - Analog, 4 - Digital | ±10V | 16 Bits | - | 2 | 250k - Multiplexed |
|
|
6069-410-1416069-410-141 |
0 |
|
- |
MCC DT9800 | Bulk | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 6 - Analog, 32 - Digital | - | 16 Bits | 4 - Analog, 32 - Digital | - | 16 Bits | 32 | 2 | - |
|
|
781028-01DAQ DEVICE ANALOG INPUT |
0 |
|
- |
C | Box | Active | Analog Input | Module | - | - | 4 - Analog | - | 24 Bits | - | - | - | - | - | 50k - Simultaneous |
|
|
779707-01DAQ DEVICE MULTIFUNCTION I/O |
0 |
|
- |
C | Box | Obsolete | - | Module | - | - | - | - | - | - | - | - | - | - | - |
|
|
780923-01DAQ DEVICE MULTIFUNCTION I/O |
0 |
|
- |
C | Box | Active | Multifunction I/O | Module | - | D-Sub | - | - | - | - | - | - | - | - | - |
|
|
779070-01DAQ DEVICE MULTIFUNCTION I/O PCI |
0 |
|
Таблицы данных |
M | Box | Obsolete | Multifunction I/O | DAQ Device | PCI | VHDCI | 16 - Analog (Single-Ended, 8 - Differential), 24 - Digital | ±11V | 16 Bits | 2 - Analog, 24 - Digital | ±10V | 16 Bits | 24 | 2 | 1.25M - Multiplexed |
|
780493-01CARD TEMPERATURE DIGITAL INP |
0 |
|
Таблицы данных |
C | Box | Obsolete | Temperature | Card | - | - | 16 - Analog | ±78.125mV | 24 Bits | - | - | - | - | - | 75 - Multiplexed |
|
785190-02DAQ DEVICE ANALOG OUTPUT |
0 |
|
- |
C | Box | Active | Analog Output | DAQ Device | - | - | - | - | - | 16 - Analog | ±10V | - | - | - | 25k |
|
|
6069-410-1546069-410-154 |
0 |
|
Таблицы данных |
MCC LGR-5329 | Bulk | Active | Multifunction I/O | Datalogger | USB 2.0 | - | 16 - Analog (Single-Ended, 8 Differential), 16 - Digital | ±30V | 16 Bits | 16 - Digital | ±30V | 16 Bits | 16 | 4 | 200k |
|
|
6069-410-2196069-410-219 |
0 |
|
- |
MCC ISA | Bulk | Not For New Designs | Analog Output | DAQ Device | - | - | - | - | 12 Bits | 16 - Analog | - | 12 Bits | - | - | - |
|

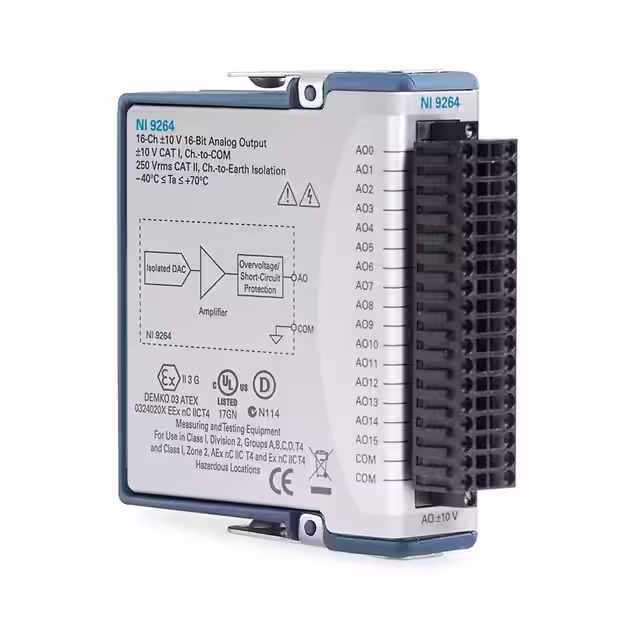

779699-02MODULE VOLTAGE ANALOG OUT |
0 |
|
- |
C | Box | Obsolete | Voltage | Module | - | - | - | - | - | 16 - Analog | ±10V | 16 Bits | - | - | 25k - Simultaneous |
|
|
778701-01DAQ DEVICE ANALOG OUTPUT PCI |
0 |
|
- |
- | Box | Obsolete | Analog Output | DAQ Device | PCI | VHDCI | 8 - Digital | - | - | 32 - Analog, 8 - Digital | ±10V | 13 Bits | 8 | 2 | 800k - Multiplexed |
