БОМ
Сбор данных (DAQ)
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Функция | Тип | Подключение шины | Переднее подключение | Количество входов и тип | Входной диапазон | Разрешение входа | Количество выходов и тип | Диапазон выхода | Разрешение выхода | Двунаправленные каналы | Счетчик/таймеры | Частота выборки (в секунду) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6069-410-1826069-410-182 |
0 |
|
- |
MCC USB-2404-10 | Bulk | Active | Analog Input | DAQ Device | USB 2.0 | Rectangular Connector | 4 - Analog | ±10V | 24 Bits | 4 - Analog | - | 24 Bits | - | - | 50k |
|
|
780103-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
0 |
|
- |
- | Bulk | Obsolete | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Single-Ended, 8 - Differential), 4 - Digital | ±10V | 16 Bits | 4 - Digital | ±10V | - | - | 2 | 250k - Multiplexed |
|
779065-01DAQ DEVICE MULTIFUNCTION I/O PCI |
0 |
|
Таблицы данных |
- | Box | Obsolete | Multifunction I/O | DAQ Device | PCI | SCSI | 16 - Analog (Single-Ended, 8 Differential), 24 - Digital | ±11V | 16 Bits | 24 - Digital | - | - | 24 | 2 | 250k - Multiplexed |
|
|
191329-04DAQ DEVICE MULTIFUNCTION I/O PCI |
0 |
|
- |
- | Bulk | Obsolete | Multifunction I/O | DAQ Device | PCI | - | 16 - Analog | - | 16 Bits | - | - | - | 24 | 2 | 250k - Multiplexed |
|
|
6069-410-1866069-410-186 |
0 |
|
- |
MCC USB-2500 | Bulk | Not For New Designs | Multifunction I/O | DAQ Device | USB 2.0 | - | 64 - Analog (Single-Ended, 32 - Differential), 24 - Digital | - | 16 Bits | 24 - Digital | - | 16 Bits | 24 | 4 | 1M |
|
|
6069-410-1016069-410-101 |
0 |
|
- |
USB-3000 | Bulk | Not For New Designs | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Single-Ended, 8 - Differential), 24 - Digital | - | - | 24 - Digital | - | - | 24 | 4 | - |
|
|
6069-410-0736069-410-073 |
0 |
|
- |
- | Bulk | Active | Multifunction I/O | DAQ Device | PCI | Screw Terminal | 8 - Digital | - | 16 Bits | 2 - Analog, 8 - Digital | - | 12 Bits | 8 | - | 200k |
|
|
780979-01DAQ DEVICE DIGITAL INPUT |
0 |
|
- |
C | Box | Active | Digital Input | DAQ Device | - | - | 16 - Digital | - | - | - | - | - | - | - | 500 - Multiplexed |
|
|
6069-410-0856069-410-085 |
0 |
|
- |
MCC PCI/PCIe | Bulk | Active | Analog Output | DAQ Device | PCI | Screw Terminal | - | - | - | 6 - Analog | - | 16 Bits | 24 | - | - |
|
|
6069-410-0776069-410-077 |
0 |
|
- |
MCC PCI/PCIe | Bulk | Active | Analog Output | DAQ Device | PCI | Screw Terminal | - | - | 16 Bits | 16 - Analog | - | 16 Bits | - | - | - |
|

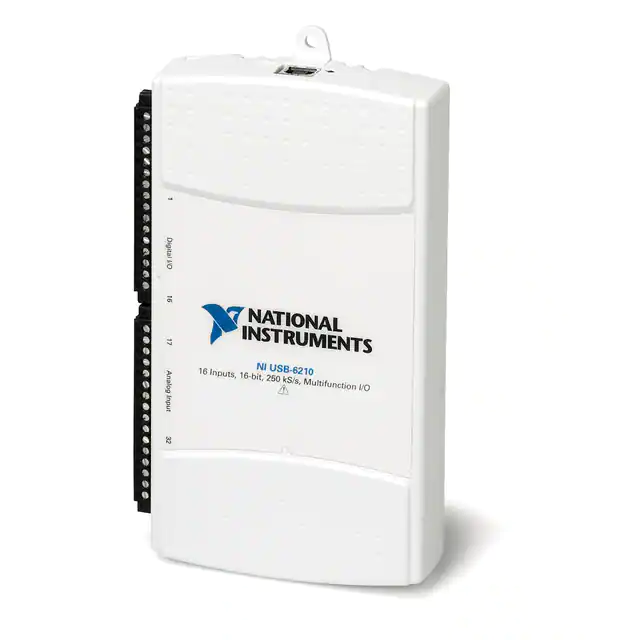

779675-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
0 |
|
Таблицы данных |
M | Box | Obsolete | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Single-Ended, 8 - Differential), 4 - Digital | ±200mV, ±1V, ±5V, ±10V | 16 Bits | 4 - Digital | - | - | - | 2 | 250k - Multiplexed |
|

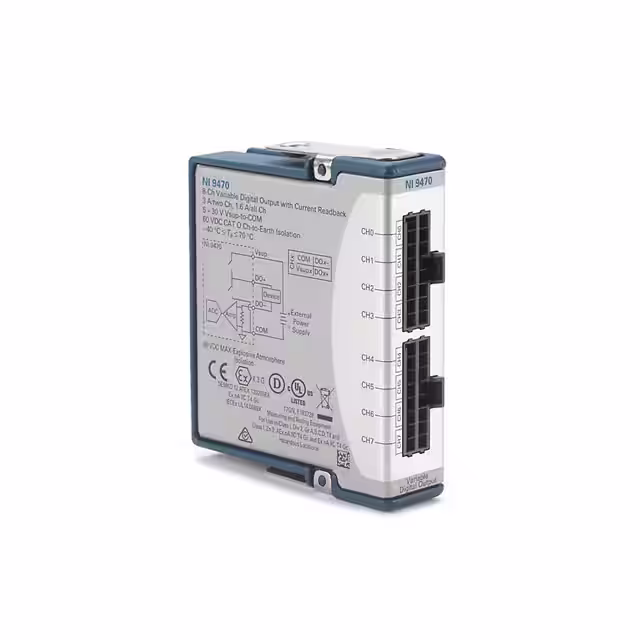

787089-01DAQ DEVICE DIGITAL OUTPUT |
0 |
|
- |
C | Box | Active | Digital Output | DAQ Device | - | - | - | - | - | 8 - Digital | 5 ~ 30V | - | - | - | - |
|

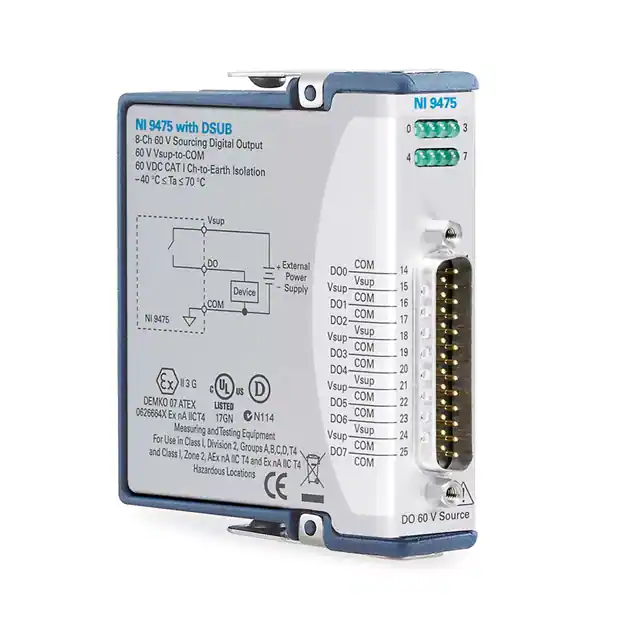

780132-02DAQ DEVICE DIGITAL OUTPUT |
0 |
|
- |
C | Box | Obsolete | Digital Output | DAQ Device | - | - | - | - | - | 8 - Digital | 0 ~ 60V | - | - | - | - |
|
783407-01DAQ DEVICE COUNTER/TIMER |
0 |
|
- |
C | Box | Active | Counter/Timer | Module | - | - | - | - | 24 Bits | - | - | - | - | 8 | - |
|
|
780879-01DAQ DEVICE MULTIFUNCTION I/O |
0 |
|
- |
C | Box | Active | Multifunction I/O | Module | - | - | - | - | - | - | - | - | - | - | - |
|
777387-01DAQ DEVICE DIGITAL I/O PCI |
0 |
|
- |
- | Box | Obsolete | Digital I/O | DAQ Device | PCI | - | 96 - Digital | - | - | 96 - Digital | - | - | 96 | - | - |
|
|
781069-01DAQ DEVICE MULTIFUNCTION I/O |
0 |
|
- |
C | Box | Active | Analog Input | Module | - | D-Sub | 16 - Analog | ±10.4V, ±22mA | 24 Bits | - | - | - | - | - | 500 - Multiplexed |
|
|
6069-410-1856069-410-185 |
0 |
|
- |
MCC USB-2500 | Bulk | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Single-Ended, 8 - Differential), 24 - Digital | - | 16 Bits | 4 - Analog, 24 - Digital | - | 16 Bits | 24 | 4 | 1M |
|
|

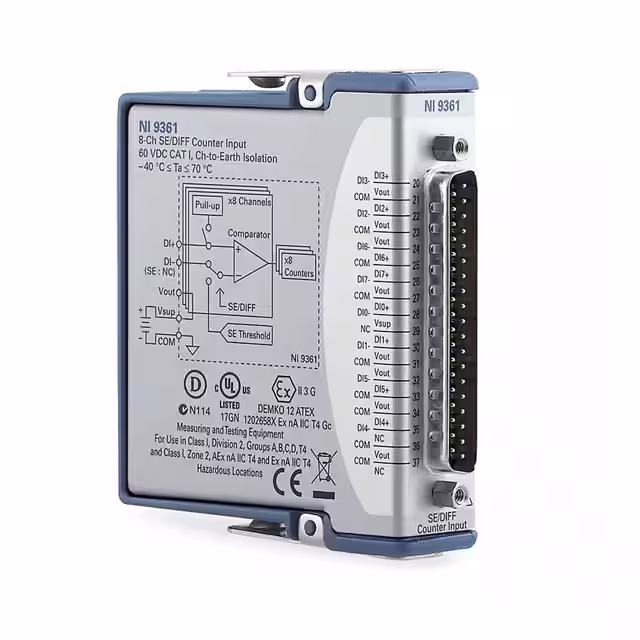

783407-02DAQ DEVICE DIGITAL INPUT |
0 |
|
Таблицы данных |
C | Box | Active | Counter/Timer | Module | - | - | 8 - Digital | - | 32 Bits | - | - | - | - | 8 | - |
|
784717-02DAQ DEVICE DIGITAL OUTPUT |
0 |
|
Таблицы данных |
C | Box | Active | Digital Output | DAQ Device | - | - | 32 - Digital | 36V | - | - | - | - | - | - | 95 |
