Сбор данных (DAQ)
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Функция | Тип | Подключение шины | Переднее подключение | Количество входов и тип | Входной диапазон | Разрешение входа | Количество выходов и тип | Диапазон выхода | Разрешение выхода | Двунаправленные каналы | Счетчик/таймеры | Частота выборки (в секунду) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCIE-1840L-AECARD ANALOG INPUT PCIE |
0 |
|
- |
- | Bulk | Active | Analog Input | Card | PCIe | HDMI, Mini SCSI | 4 - Analog | ±10V | 16 Bits | - | - | - | - | - | 800k |
|
780108-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
0 |
|
Таблицы данных |
M | Box | Obsolete | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Single-Ended, 8 - Differential), 32 - Digital | ±10V | 16 Bits | 2 - Analog, 32 - Digital | ±10V | 16 Bits | 32 | 2 | 400k - Multiplexed |
|
|
780106-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
0 |
|
- |
- | Bulk | Obsolete | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 32 - Analog (Single-Ended, 16 - Differential), 8 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | - | 2 | 250k - Multiplexed |
|
|
779808-04DAQ DEVICE MULTIFUNC I/O USB 2.0 |
0 |
|
- |
M | Bulk | Obsolete | Multifunction I/O | DAQ Device | USB 2.0 | - | 16 - Analog (Single-Ended, 8 - Differential), 24 - Digital | ±10V | 16 Bits | 2 - Analog, 24 - Digital | ±10V | 16 Bits | 24 | 2 | 250k - Multiplexed |
|
779619-01DAQ DEVICE MULTIFUNCTION I/O PCI |
1 |
|
Таблицы данных |
M | Box | Obsolete | Multifunction I/O | DAQ Device | PCI | D-Sub | 16 - Analog (Single-Ended, 8 - Differential), 6 - Digital | ±10V | 16 Bits | 2 - Analog, 4 - Digital | ±10V | 16 Bits | - | 2 | 250k - Multiplexed |
|
784445-01DAQ DEVICE DIGITAL I/O |
0 |
|
Таблицы данных |
C | Box | Obsolete | Digital I/O | DAQ Device | - | - | - | 24V | - | - | - | - | - | - | - |
|
779295-01MODULE MULTIFUNCTION I/O PCI |
0 |
|
Таблицы данных |
M | Box | Obsolete | Multifunction I/O | Module | PCI | VHDCI | 80 - Analog (Single-Ended, 40 - Differential), 24 - Digital | ±10V | 16 Bits | 2 - Analog, 24 - Digital | ±10V | 16 Bits | 24 | 2 | 250k - Multiplexed |
|
|
6069-410-1386069-410-138 |
0 |
|
- |
MCC DT9800 | Bulk | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 12 - Analog, 32 - Digital | - | 16 Bits | 2 - Analog, 32 - Digital | - | 16 Bits | 32 | 2 | - |
|
|
6069-410-1406069-410-140 |
0 |
|
- |
MCC DT9800 | Bulk | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 6 - Analog, 32 - Digital | - | 16 Bits | 4 - Analog, 32 - Digital | - | 16 Bits | 32 | 2 | - |
|
|
779630-01MODULE MULTIFUNCTION I/O PXI |
0 |
|
- |
M | Box | Obsolete | Multifunction I/O | Module | PXI | - | 32 - Analog (Single-Ended, 16 - Differential), 48 - Digital | ±10V | 16 Bits | 2 - Analog, 48 - Digital | ±10V | 16 Bits | 48 | 2 | 250k - Multiplexed |
|
|
779115-01DAQ DEVICE MULTIFUNCTION I/O PXI |
0 |
|
- |
- | Box | Obsolete | Multifunction I/O | DAQ Device | PXI | - | 32 - Analog (Single-Ended, 16 - Differential), 48 - Digital | ±10V | 16 Bits | 4 - Analog, 48 - Digital | ±10V | 16 Bits | 48 | 2 | 250k - Multiplexed |
|
|
778572-94DAQ DEVICE MULTIFUNCTION I/O PXI |
0 |
|
- |
- | Box | Active | Multifunction I/O | DAQ Device | PXI | - | - | - | - | - | - | - | - | - | - |
|
|
6069-410-1396069-410-139 |
0 |
|
- |
MCC DT9800 | Bulk | Active | Multifunction I/O | DAQ Device | USB 2.0 | BNC | 6 - Analog, 32 - Digital | - | 16 Bits | 32 - Digital | - | 16 Bits | 32 | 2 | - |
|
|
780874-01DAQ DEVICE DIGITAL INPUT |
0 |
|
- |
C | Box | Active | Voltage | Module | - | - | 4 - Analog (Differential) | ±60V | 24 Bits | - | - | - | - | - | 50k - Simultaneous |
|
|
PCIE-1803-A1ECARD ANALOG INPUT PCIE |
0 |
|
Таблицы данных |
- | Bulk | Active | Analog Input | Card | PCIe | HDMI, Mini SCSI | 8 - Analog (Differential), 1 - Digital | ±1V, ±2V, ±5V, ±10V | 24 Bits | 2 - Digital | - | - | - | - | 128k |
|

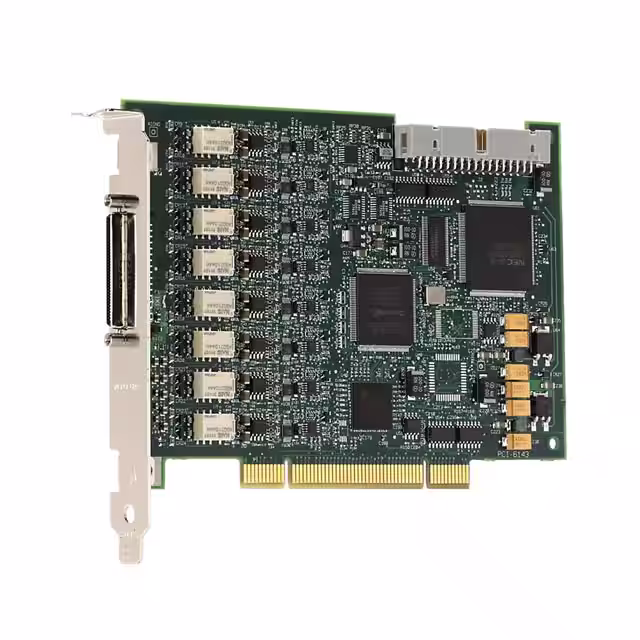

778913-01DAQ DEVICE MULTIFUNCTION I/O PCI |
0 |
|
Таблицы данных |
S | Box | Obsolete | Multifunction I/O | DAQ Device | PCI | VHDCI | 8 - Analog Differential), 8 - Digital | ±7V | 16 Bits | 8 - Digital | - | - | 8 | 2 | 250k - Simultaneous |
|
|
779723-01DAQ DEVICE REMOTE SWITCH PXI |
0 |
|
- |
- | Box | Obsolete | Remote Switch | DAQ Device | PXI | - | - | - | - | - | - | - | - | - | - |
|
|
785503-02DAQ DEVICE ANALOG OUTPUT |
0 |
|
- |
- | Box | Active | Analog Output | DAQ Device | - | D-Sub | - | - | - | 6 - Analog | ±10V | 16 Bits | - | - | - |
|
780493-02CARD TEMPERATURE DIGITAL INP |
1 |
|
- |
C | Box | Obsolete | Temperature | Card | - | - | 16 - Analog | ±78.125mV | 24 Bits | - | - | - | - | - | 75 - Multiplexed |
|
|
6069-410-1046069-410-104 |
0 |
|
- |
MCC DT9800 | Bulk | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog, 32 - Digital | - | 16 Bits | 4 - Analog, 32 - Digital | - | 16 Bits | 32 | 5 | - |
