БОМ
Сбор данных (DAQ)
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Функция | Тип | Подключение шины | Переднее подключение | Количество входов и тип | Входной диапазон | Разрешение входа | Количество выходов и тип | Диапазон выхода | Разрешение выхода | Двунаправленные каналы | Счетчик/таймеры | Частота выборки (в секунду) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
783589-01DAQ DEVICE ANALOG INPUT |
4 |
|
Таблицы данных |
C | Box | Active | Current | Module | - | Screw Terminal | 3 - Analog | ±147A | 24 Bits | - | - | - | - | - | 50k - Simultaneous |
|

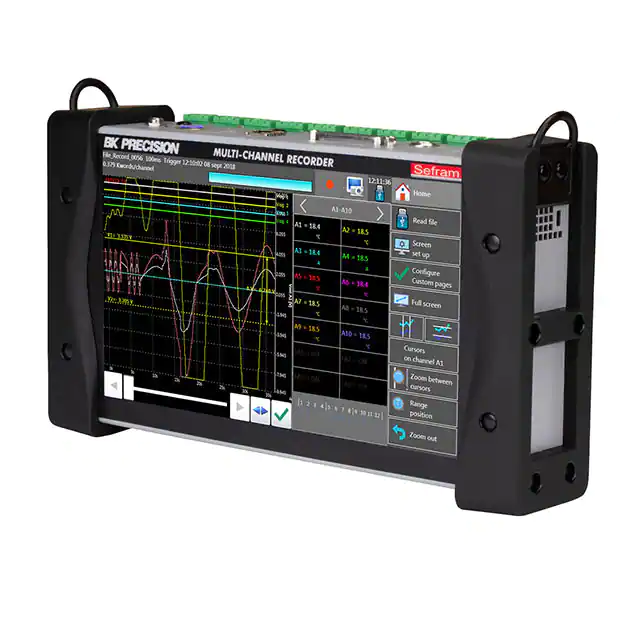

DAS220-BATDAQ DEVICE MULT I/O RJ45 USB 2.0 |
4 |
|
Таблицы данных |
DAS220 | Box | Active | Multifunction I/O | DAQ Device | RJ45, USB 2.0 Host (2) | Screw Terminal | 10 - Analog, 12 - Digital | ±100mV, ±100V | 16 Bits | - | 5V | - | - | 4 | 1k |
|
780927-02DAQ DEVICE ANALOG OUTPUT |
2 |
|
Таблицы данных |
C | Box | Active | Voltage | Module | - | - | - | - | - | 16 - Analog | ±10V | 16 Bits | - | - | 25k - Simultaneous |
|
6069-410-036DAQ DEVICE MULTIFUNC I/O USB 2.0 |
4 |
|
- |
USB-1604HS | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | BNC | 4 - Analog, 16 - Digital | ±500mV, ±2.5V, ±10V | 16 Bits | 2 - Analog, 16 - Digital | ±10V | 16 Bits | 16 | 6 | 2M - Simultaneous |
|
781440-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
2 |
|
Таблицы данных |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Single-Ended, 8 - Differential), 16 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 1M - Multiplexed |
|
785503-01DAQ DEVICE ANALOG OUTPUT |
5 |
|
Таблицы данных |
- | Box | Active | Analog Output | DAQ Device | - | - | - | - | - | 6 - Analog | ±10V | - | - | - | - |
|
781049-01DAQ DEVICE MULTIFUNCT I/O PCIE |
5 |
|
Таблицы данных |
X | Box | Active | Multifunction I/O | DAQ Device | PCIe | VHDCI | 32 - Analog (Single-Ended, 16 - Differential), 16 - Digital | ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 1M - Multiplexed |
|
|
780695-01DAQ DEVICE MULTIFUNCTION I/O PXI |
4 |
|
- |
- | Box | Active | Multifunction I/O | Module | PXI | - | 32 - Digital | - | - | 32 - Digital | - | - | 32 | - | - |
|
784400-01DAQ DEVICE ANALOG INPUT |
9 |
|
Таблицы данных |
C | Box | Active | Analog Input | DAQ Device | - | - | 16 - Analog | ±10V | 24 Bits | - | - | - | - | - | - |
|
779781-02MODULE ANALOG INPUT |
2 |
|
Таблицы данных |
C | Box | Active | Analog Input | Module | - | - | 4 - Analog | ±60V | 24 Bits | - | - | - | - | - | 100 - Multiplexed |
|
784399-01DAQ DEVICE ANALOG INPUT |
19 |
|
Таблицы данных |
C | Box | Active | Analog Input | DAQ Device | - | - | 16 - Analog | ±10V | 24 Bits | - | - | - | - | - | - |
|
783861-01DAQ DEVICE ANALOG INPUT |
15 |
|
Таблицы данных |
C | Box | Active | Voltage | Module | - | - | 8 - Analog (Differential) | ±60V | 24 Bits | - | - | - | - | - | 1k - Simultaneous |
|
781439-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
13 |
|
Таблицы данных |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 32 - Analog (Single-Ended, 16 - Differential), 16 - Digital | ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 500k - Multiplexed |
|
782256-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
4 |
|
Таблицы данных |
X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | VHDCI | 16 - Analog (Single-Ended, 8 - Differential), 16 - Digital | ±0.1V, ±0.2V, ±0.5V, ±1V, ±2V, ±5V, ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 1M - Multiplexed |
|
865682-01DAQ DEVICE ANALOG INPUT USB 2.0 |
4 |
|
Таблицы данных |
- | Box | Active | Temperature | Modular Systems | USB 2.0 | Spring Terminal | 16 - Analog (Differential) | ±78.125mV | 24 Bits | - | - | - | - | - | 75 |
|
785185-02DAQ DEVICE DIGITAL INPUT |
7 |
|
Таблицы данных |
C | Box | Active | Digital Input | DAQ Device | - | - | 16 - Digital | - | - | - | - | - | - | - | - |
|
|
789888-01USB-6451, 20-BIT, 1MS/S/CH (16AI |
20 |
|
- |
mioDAQ | Box | Active | Multifunction I/O | DAQ Device | USB C | Spring Terminal | 16 - Analog (Single-Ended, 8 - Differential) | ±200mV, ±2.5V, ±5V, ±10V | 20 Bits | 2 - Analog | ±10V | 16 Bits | 16 | 4 | 1M - Simultaneous |
|
|
781442-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
12 |
|
Таблицы данных |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Single-Ended, 8 - Differential), 16 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 1M - Multiplexed |
|
|
782251-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
2 |
|
Таблицы данных |
X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | BNC | 16 - Analog (Single-Ended, 8 - Differential), 16 - Digital | ±0.2V, ±1V, ±5V, ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 4 | 500k - Multiplexed |
|
|
780178-01DAQ DEVICE REMOTE SWITCH |
5 |
|
- |
- | Box | Active | Remote Switch | DAQ Device | - | - | - | - | - | - | - | - | - | - | - |
