Сбор данных (DAQ)
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Функция | Тип | Подключение шины | Переднее подключение | Количество входов и тип | Входной диапазон | Разрешение входа | Количество выходов и тип | Диапазон выхода | Разрешение выхода | Двунаправленные каналы | Счетчик/таймеры | Частота выборки (в секунду) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

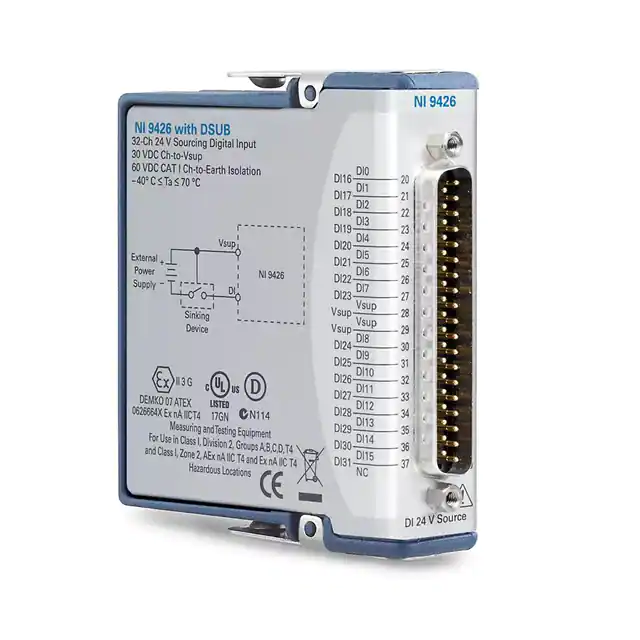

780030-01MODULE DIGITAL INPUT |
11 |
|
Таблицы данных |
C | Box | Active | Digital Input | Module | - | - | 32 - Digital | 24V | - | - | - | - | - | - | - |
|

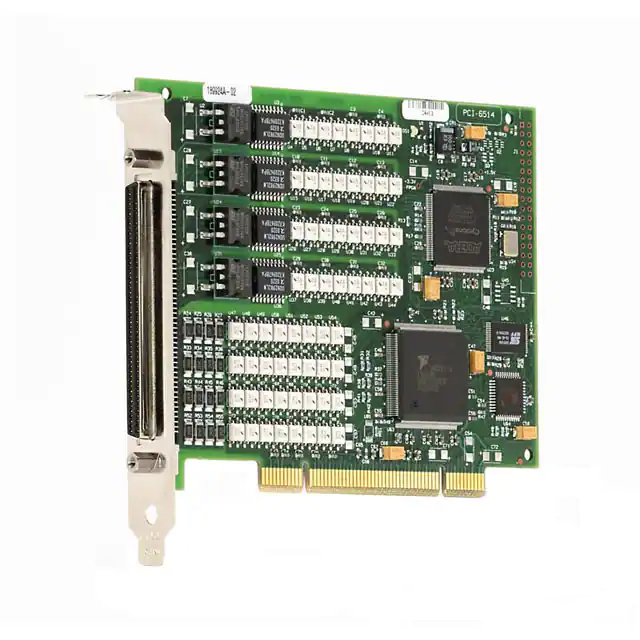

778836-01DAQ DEVICE DIGITAL I/O PCI |
7 |
|
- |
- | Box | Active | Digital I/O | DAQ Device | PCI | SCSI | 32 - Digital | ±30V | - | 32 - Digital | 0 ~ 30V | - | 32 | - | - |
|
779139-01MODULE DIGITAL INPUT |
24 |
|
- |
C | Box | Active | Digital Input | Module | - | - | 32 - Digital | 24V | - | - | - | - | - | - | - |
|

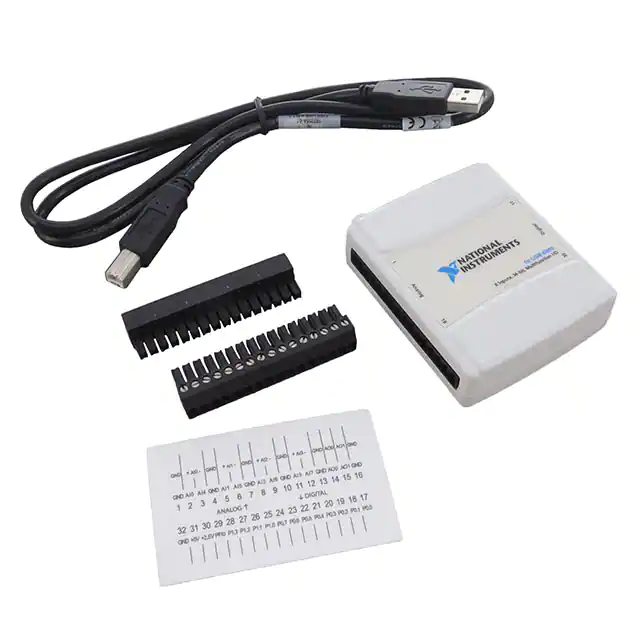

779026-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
15 |
|
Таблицы данных |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Single-Ended, 4 - Differential), 12 - Digital | ±20V | 14 Bits | 2 - Analog, 12 - Digital | 0 ~ 5V | 12 Bits | 12 | 1 | 48k - Multiplexed |
|

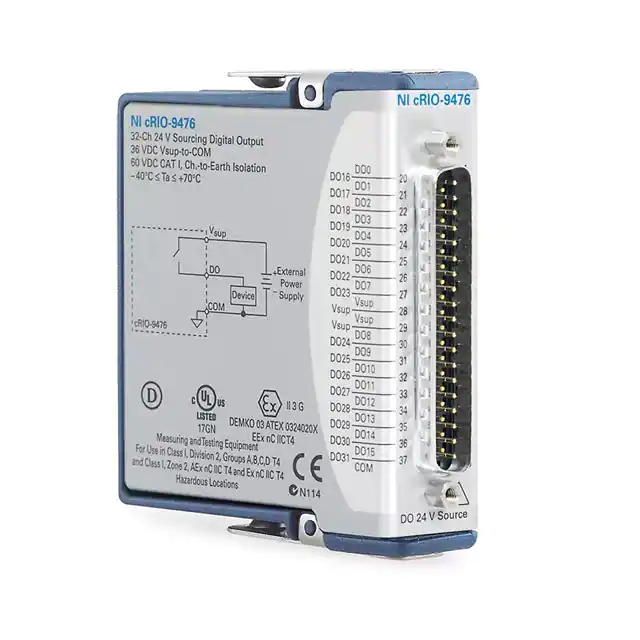

779140-01MODULE DIGITAL OUTPUT |
15 |
|
Таблицы данных |
C | Box | Active | Digital Output | Module | - | - | - | - | - | 32 - Digital | 6 ~ 36V | - | - | - | - |
|

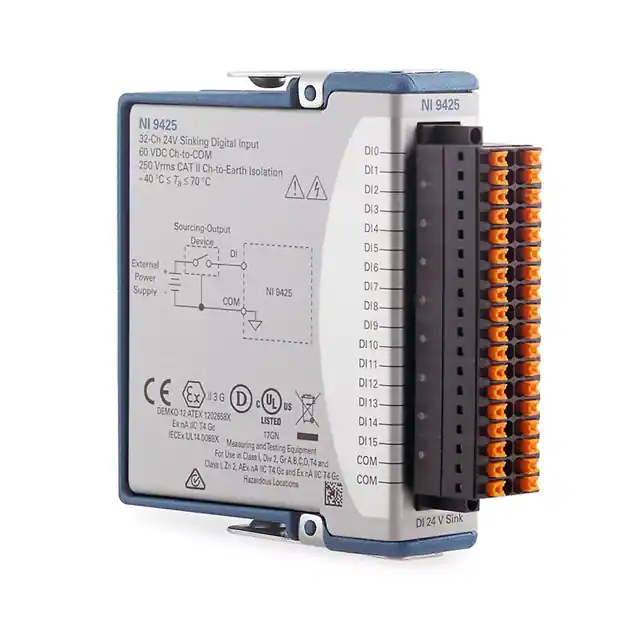

785044-01DAQ DEVICE DIGITAL INPUT |
8 |
|
Таблицы данных |
C | Box | Active | Digital Input | DAQ Device | - | - | 32 - Digital | 24V | - | - | - | - | - | - | - |
|
6069-410-064DAQ DEVICE MULTIFUNC I/O USB 2.0 |
18 |
|
- |
USB-2408 | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Single-Ended, 8 - Differential), 8 - Digital | ±78.125mV, ±10V | 24 Bits | 2 - Analog, 8 - Digital | 0 ~ 5V | 16 Bits | 8 | 2 | 1k - Multiplexed |
|
6069-410-017DAQ DEVICE MULTIFUNC I/O USB 2.0 |
11 |
|
- |
MCC USB-1208HS-4AO | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (Single-Ended, 4 -Differential), 16 - Digital | ±10V | 13 Bits | 4 - Analog, 16 - Digital | ±10V | 12 Bits | 16 | 2 | 1M - Multiplexed |
|
779001-01DAQ DEVICE ANALOG INPUT PCIE |
18 |
|
Таблицы данных |
C | Box | Active | Analog Input | DAQ Device | PCIe | - | 4 - Analog | - | 24 Bits | - | - | - | - | - | 14 - Simultaneous |
|

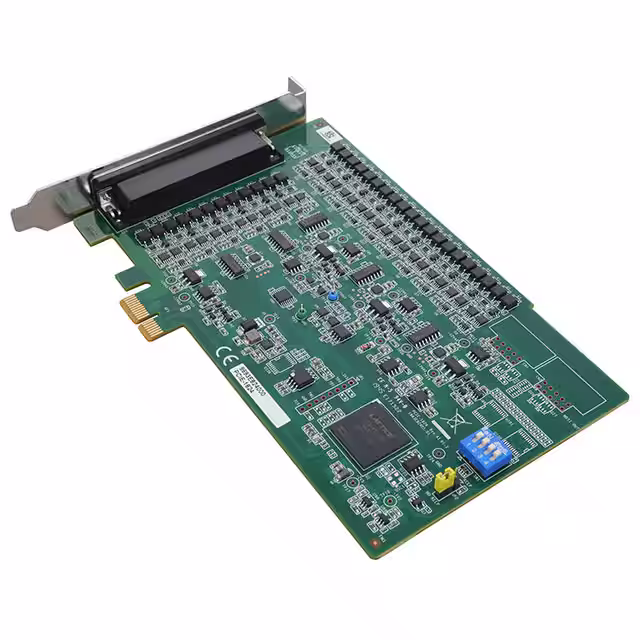

PCIE-1824-AECARD ANALOG OUTPUT PCIE |
8 |
|
Таблицы данных |
- | Box | Active | Analog Output | Card | PCIe | D-Sub | - | - | - | 32 - Analog | ±10V | 16 Bits | - | - | - |
|
|
6069-410-020DAQ DEVICE MULTIFUNC I/O USB 2.0 |
15 |
|
Таблицы данных |
USB-TEMP | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 8 - Analog (4 - Single-Ended, 4 - Differential), 8 - Digital | ±10V | 24 Bits | 8 - Digital | - | - | 8 | 1 | 2 - Simultaneous |
|
|
6069-410-137DAQ DEVICE MULTIFUNC I/O USB 2.0 |
4 |
|
- |
ECONseries | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 6 - Analog (Single-Ended), 8 - Digital | ±10V | 16 Bits | 8 - Digital | ±10V | 16 Bits | 8 | 1 | 750k - Simultaneous |
|

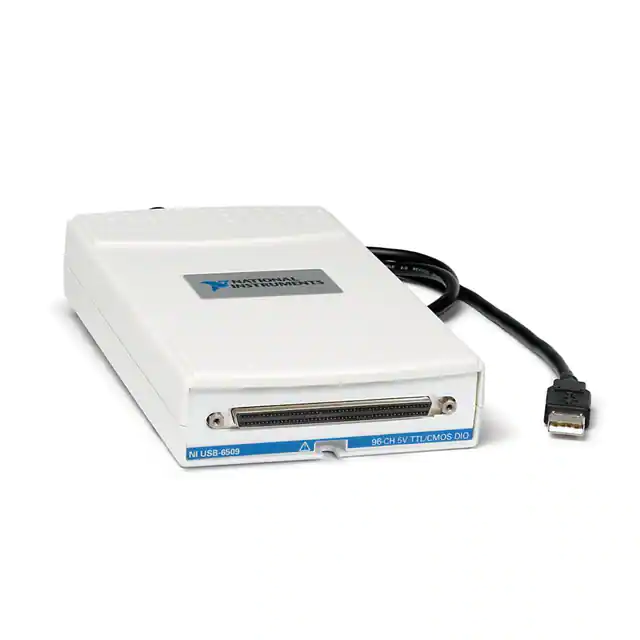

779975-01DAQ DEVICE DIGITAL I/O USB 2.0 |
9 |
|
- |
- | Box | Active | Digital I/O | DAQ Device | USB 2.0 | SCSI | 96 - Digital | ±5V | - | 96 - Digital | 0 ~ 5V | - | 96 | - | - |
|

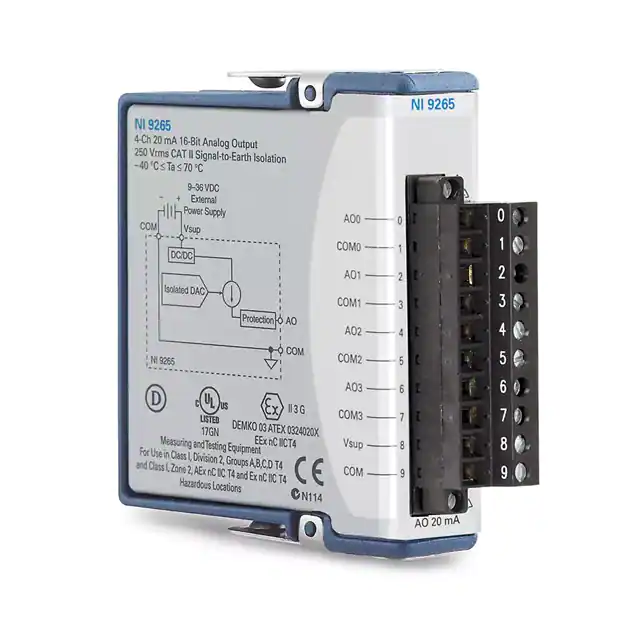

779334-01MODULE ANALOG OUTPUT |
10 |
|
- |
C | Box | Active | Analog Output | Module | - | Screw Terminal | - | - | - | 4 - Analog | 0 ~ 20mA | 16 Bits | - | - | - |
|

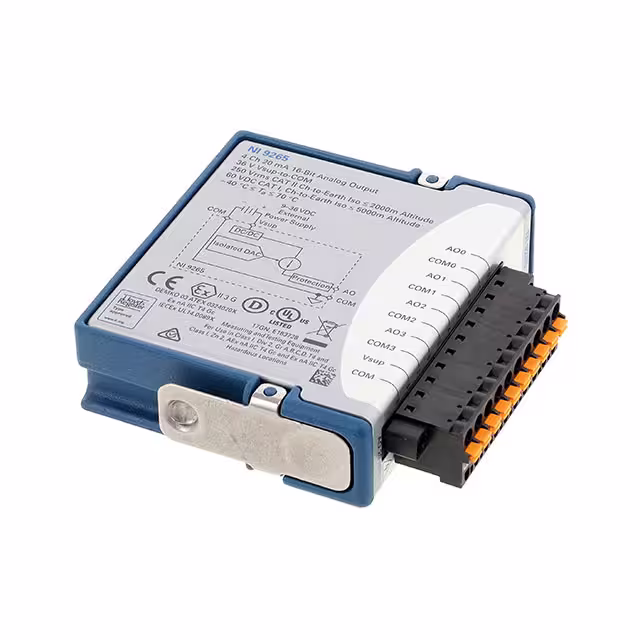

783733-01DAQ DEVICE ANALOG OUTPUT |
9 |
|
Таблицы данных |
C | Box | Active | Current | Module | - | - | - | - | - | 4 - Analog | 0 ~ 20mA | 16 Bits | - | - | - |
|

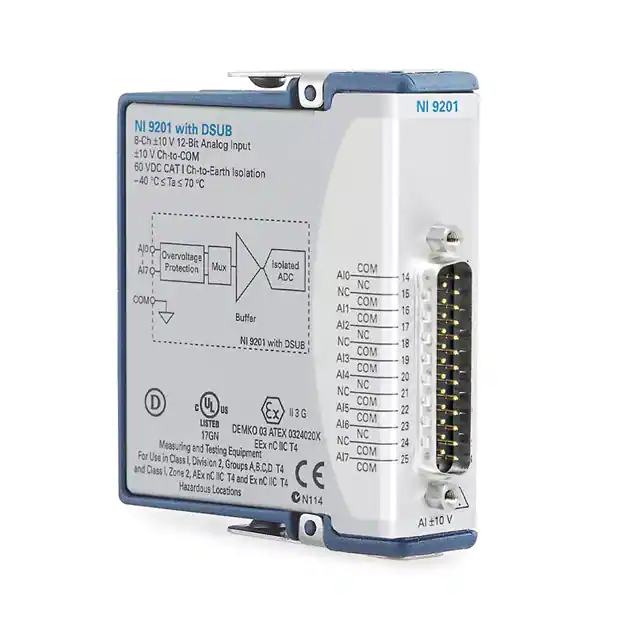

779372-01MODULE VOLTAGE ANALOG INP |
3 |
|
- |
C | Box | Active | Voltage | Module | - | - | 8 - Analog | ±10V | - | - | - | - | - | - | 500k - Multiplexed |
|

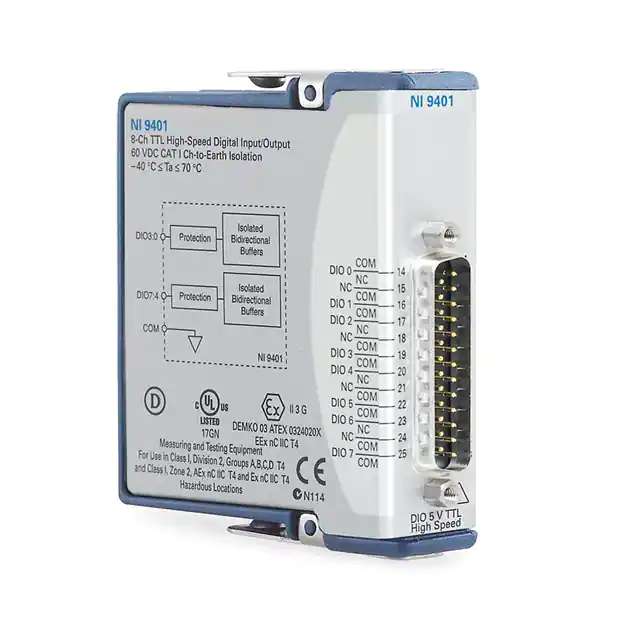

782401-01DAQ DEVICE DIGITAL I/O |
10 |
|
Таблицы данных |
C | Box | Active | Digital I/O | Module | - | - | 8 - Digital | - | - | 8 - Digital | - | - | 8 | - | - |
|
781043-01DAQ DEVICE MULTIFUNCT I/O PCIE |
24 |
|
Таблицы данных |
X | Box | Active | Multifunction I/O | DAQ Device | PCIe | VHDCI | 16 - Analog (Single-Ended, 8 - Differential), 16 - Digital | ±10V | 16 Bits | 8 - Digital | ±10V | - | 8 | 4 | 250k - Multiplexed |
|

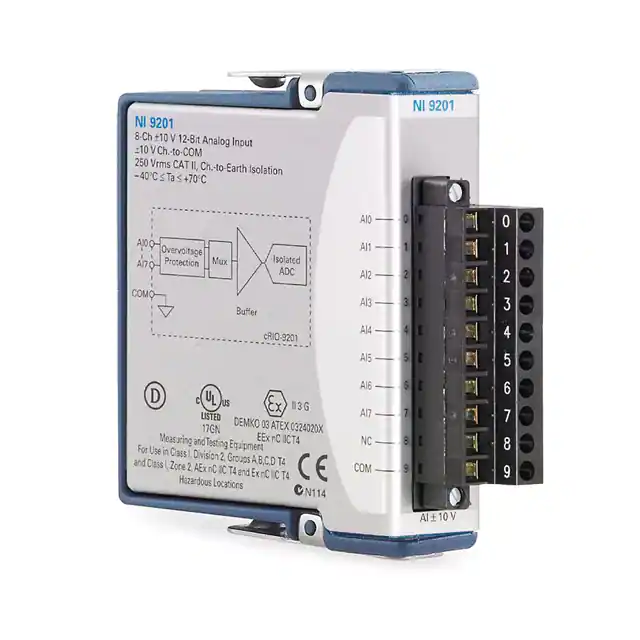

779013-01DAQ DEVICE ANALOG INPUT |
13 |
|
- |
C | Box | Active | Analog Input | DAQ Device | - | - | 8 - Analog | ±10V | 12 Bits | - | - | - | - | - | 800k - Multiplexed |
|
6069-410-011DAQ DEVICE MULTIFUNC I/O USB 2.0 |
11 |
|
Таблицы данных |
MCC USB-1608G | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 16 - Analog (Differential), 8 - Digital | ±10V | 16 Bits | 2 - Analog, 8 - Digital | ±10V | 16 Bits | 8 | 2 | 500k - Multiplexed |
