БОМ
Сбор данных (DAQ)
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Функция | Тип | Подключение шины | Переднее подключение | Количество входов и тип | Входной диапазон | Разрешение входа | Количество выходов и тип | Диапазон выхода | Разрешение выхода | Двунаправленные каналы | Счетчик/таймеры | Частота выборки (в секунду) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
779680-01MODULE ANALOG INPUT |
24 |
|
- |
C | Box | Active | Analog Input | Module | - | BNC | 4 - Analog | ±5V | 24 Bits | - | - | - | - | - | 51.2k - Simultaneous |
|
782253-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
9 |
|
Таблицы данных |
X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | BNC | 32 - Analog, 16 - Digital | ±0.2V, ±1V, ±5V, ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 48 | 4 | 500k - Multiplexed |
|
DAS240-BATDAQ DEVICE MULT I/O RJ45 USB 2.0 |
3 |
|
Таблицы данных |
DAS240 | Box | Active | Multifunction I/O | DAQ Device | RJ45, USB 2.0 Host (2) | - | 20 - Analog, 12 - Digital | ±100mV, ±100V | 16 Bits | - | 5V | - | 12 | 4 | 1k |
|
782615-02DAQ DEVICE ANALOG INPUT |
4 |
|
Таблицы данных |
C | Box | Active | Voltage | DAQ Device | - | - | 16 - Analog | ±10V | 16 Bits | - | - | - | - | - | 100k - Simultaneous |
|
782259-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
4 |
|
Таблицы данных |
X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | VHDCI | 32 - Analog (Single-Ended, 16 - Differential), 16 - Digital | ±0.1V, ±0.2V, ±0.5V, ±1V, ±2V, ±5V, ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 1M - Multiplexed |
|
781441-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
6 |
|
Таблицы данных |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 32 - Analog (Single-Ended, 16 - Differential), 16 - Digital | ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 1M - Multiplexed |
|
789884-01USB-6453, 20-BIT, 1MS/S/CH (32AI |
18 |
|
- |
mioDAQ | Box | Active | Multifunction I/O | DAQ Device | USB C | Spring Terminal | 32 - Analog (Single-Ended, 16 - Differential) | ±200mV, ±2.5V, ±5V, ±10V | 20 Bits | 4 - Analog | ±10V | 16 Bits | 16 | 4 | 1M - Simultaneous |
|
|
781443-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
5 |
|
Таблицы данных |
- | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | Screw Terminal | 32 - Analog (Single-Ended, 16 - Differential), 16 - Digital | ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 1M - Multiplexed |
|
|
779680-03MODULE ANALOG INPUT |
2 |
|
- |
C | Box | Active | Analog Input | Module | - | BNC | 4 - Analog | ±5V | 24 Bits | - | - | - | - | - | 51.2k - Simultaneous |
|

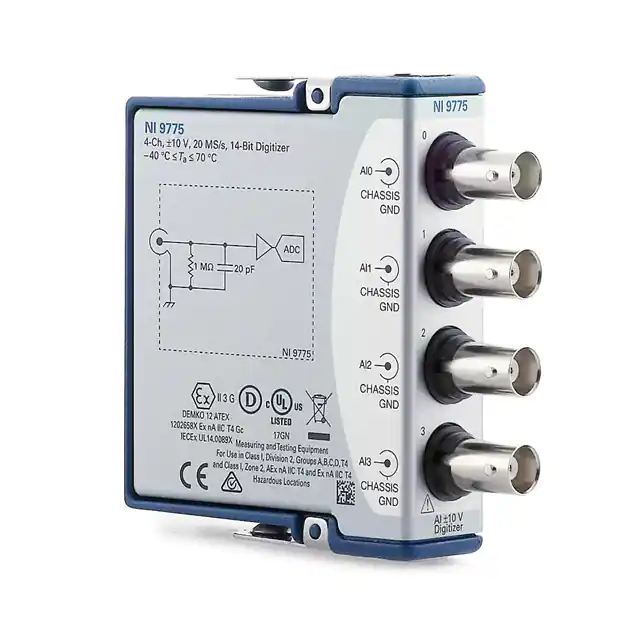

784539-01DAQ DEVICE ANALOG INPUT |
5 |
|
Таблицы данных |
C | Box | Active | Analog Input | DAQ Device | - | - | 4 - Analog | ±10V | 14 Bits | - | - | - | - | - | - |
|
|
6069-410-038DAQ DEVICE MULTIFUNC I/O USB 2.0 |
3 |
|
Таблицы данных |
MCC DT9857E | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | BNC | 8 - Analog, 8 - Digital | ±10V | 24 Bits | 8 - Digital | - | 32 Bits | 8 | 3 | - |
|
|
781348-01DAQ DEVICE ANALOG INPUT |
2 |
|
- |
- | Box | Active | Temperature | Module | - | - | 32 - Analog | ±80mV | 24 Bits | - | - | - | - | - | 90 - Multiplexed |
|
|
781056-01DAQ DEVICE MULTIFUNCT I/O PXIE |
2 |
|
Таблицы данных |
- | Box | Active | Multifunction I/O | Module | PXIe | - | 32 - Digital (Single-Ended, 16 - Differential), 16 - Digital | ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 1M - Multiplexed |
|
DAS50DAQ DEV MULT I/O RJ45 USB 2.0 |
3 |
|
Таблицы данных |
DAS50 | Box | Active | Multifunction I/O | DAQ Device | RJ45, USB 2.0 Host (2) | Screw Terminal | 4 - Analog, 16 - Digital | ±500V, 440VAC | 14 Bits | - | 5V | - | - | - | 1M |
|
782258-01DAQ DEVICE MULTIFUNC I/O USB 2.0 |
5 |
|
Таблицы данных |
X | Box | Active | Multifunction I/O | DAQ Device | USB 2.0 | BNC | 32 - Analog (Single-Ended, 16 - Differential), 16 - Digital | ±0.1V, ±0.2V, ±0.5V, ±1V, ±2V, ±5V, ±10V | 16 Bits | 4 - Analog, 32 - Digital | ±10V | 16 Bits | 16 | 4 | 1M - Multiplexed |
|
|
782110-01DAQ DEVICE DIGITAL I/O PXI |
3 |
|
- |
- | Box | Active | Digital I/O | Module | PXI | - | - | - | - | - | - | - | - | - | - |
|
|
782118-01DAQ DEVICE ANALOG OUTPUT PXI |
4 |
|
- |
- | Box | Active | Temperature | Module | PXI | - | 20 - Analog | -200°C ~ 850°C | 24 Bits | - | - | - | - | - | 100 - Multiplexed |
|
|
782878-01DAQ DEVICE ANALOG OUTPUT PXI |
4 |
|
- |
- | Box | Active | Analog Output | Module | PXI | - | - | - | - | 8 - Analog | ±16V | 16 Bits | - | - | 250k - Multiplexed |
|
783610-01DAQ DEVICE ANALOG INPUT |
4 |
|
Таблицы данных |
C | Box | Active | Sound, Vibration | Module | - | - | 8 - Analog | ±5V | - | - | - | - | - | - | 51.2k - Multiplexed |
|
DAS60DAQ DEV MULT I/O RJ45 USB 2.0 |
2 |
|
Таблицы данных |
DAS60 | Box | Active | Multifunction I/O | DAQ Device | RJ45, USB 2.0 Host (2) | Screw Terminal | 6 - Analog, 16 - Digital | ±500V, 440VAC | 14 Bits | - | 5V | - | - | - | 1M |
