БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

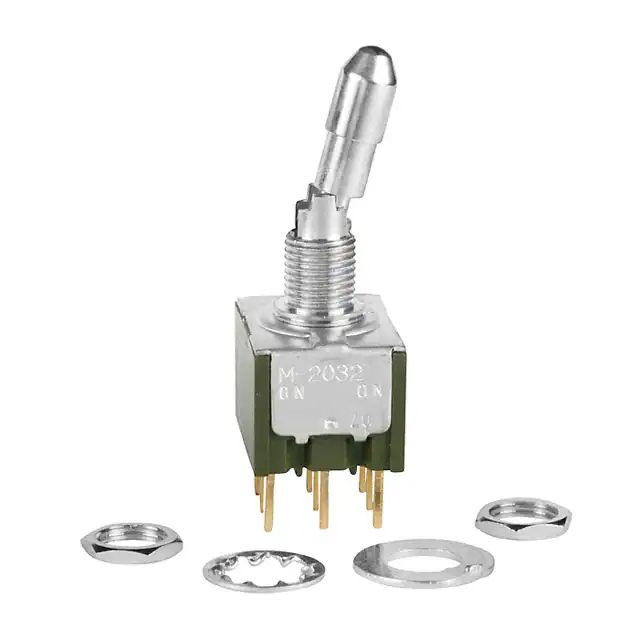

M2032LL1G03SWITCH TOGGLE 3PDT 0.4VA 28V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
TL22DDAW015DSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 12 V | Flatted | 17.50mm | Illuminated | LED, Amber | 2.1 VDC | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP65 - Dust Tight, Water Resistant | Epoxy Sealed Terminals | -10°C ~ 55°C |
|

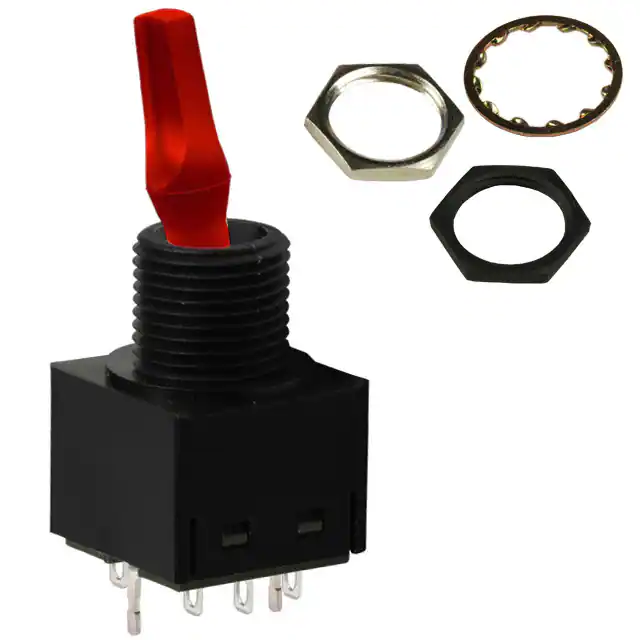

TL22DCAW015CSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
TL | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 12 V | Flatted | 17.50mm | Illuminated | LED, Red | 2 VDC | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP65 - Dust Tight, Water Resistant | Epoxy Sealed Terminals | -10°C ~ 55°C |
|

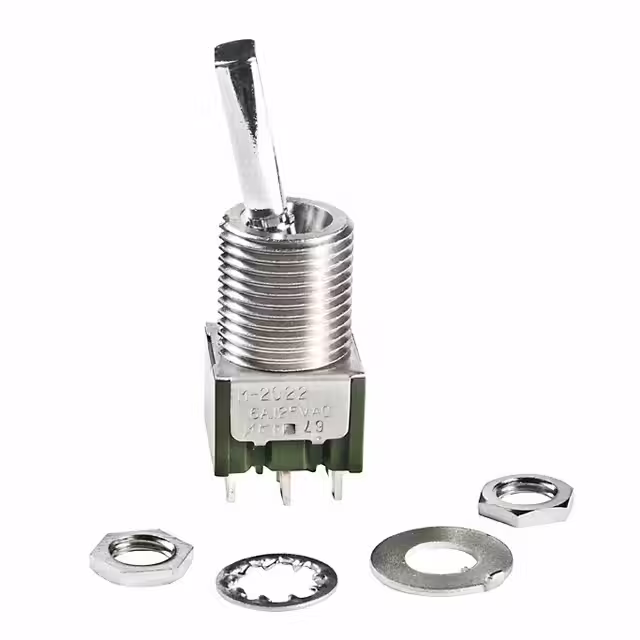

M2022RB1W01SWITCH TOGGLE DPDT 6A 125V |
9 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 15.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2039SS1W01SWITCH TOGGLE 3PDT 6A 125V |
43 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2038SS1W01SWITCH TOGGLE 3PDT 6A 125V |
39 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | 3PDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
D22029VSWITCH TOGGLE DPDT 0.4VA 48V |
0 |
|
Таблицы данных |
D2 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -10°C ~ 70°C |
|
M2044SS1W01SWITCH TOGGLE DP3T 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
2NT1-31SWITCH TOGGLE DPDT 15A 125V |
0 |
|
- |
NT | Bulk | Obsolete | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
M2044S2S1W01SWITCH TOGGLE DP3T 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | DP3T | On-On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
S302F-AT401HSWITCH TOGGLE SPDT 15A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
S302F-AT401ASWITCH TOGGLE SPDT 15A 125V |
0 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
M2013K1A1A01-GSWITCH TOGGLE SPDT 6A 125V |
40 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Blue Cap | -30°C ~ 85°C |
|
|
M2032KS1W01SWITCH TOGGLE 3PDT 6A 125V |
32 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Lever for Cap | - | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2042ES1W03SWITCH TOGGLE 4PDT 6A 125V |
1 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

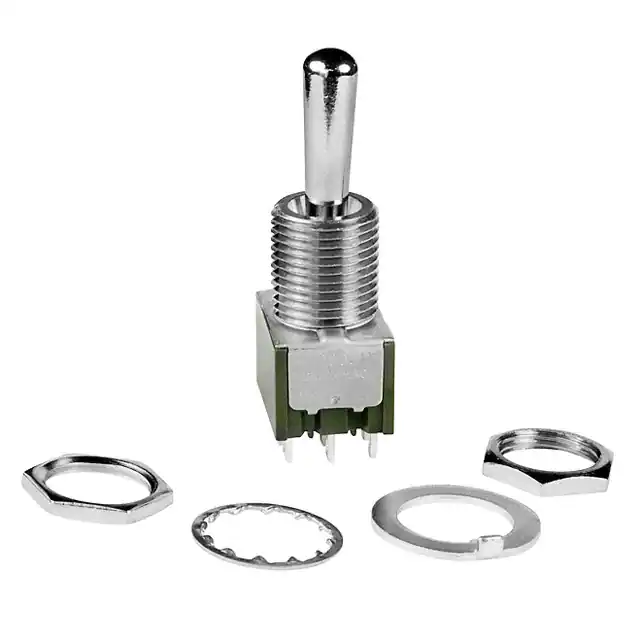

M2033B2B1W01SWITCH TOGGLE 3PDT 6A 125V |
46 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | 3PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

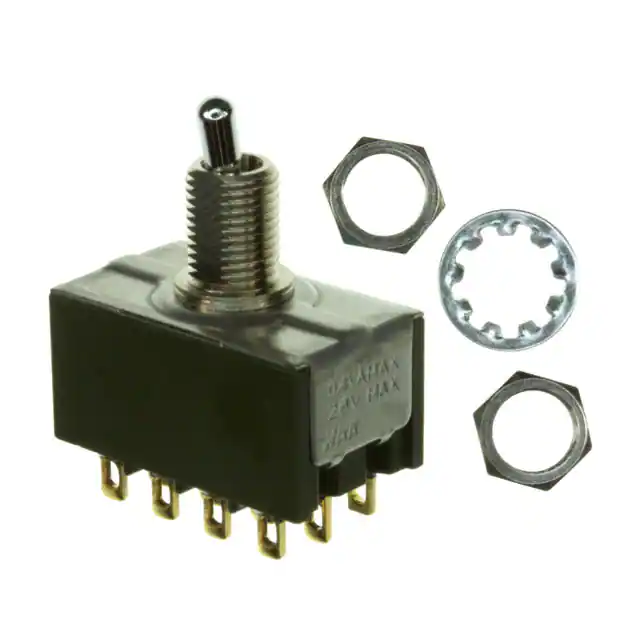

M2042S2D1G01SWITCH TOGGLE 4PDT 0.4VA 28V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022SA2G30SWITCH TOGGLE DPDT 0.4VA 28V |
18 |
|
Таблицы данных |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 12.28mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

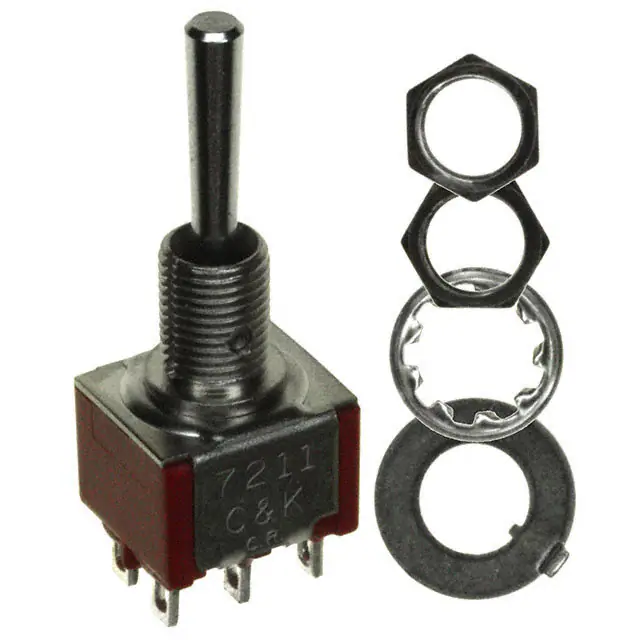

7211L2PH3ZQESWITCH TOGGLE SP3T 5A 120V |
7 |
|
Таблицы данных |
7000 | Tray | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 13.46mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|

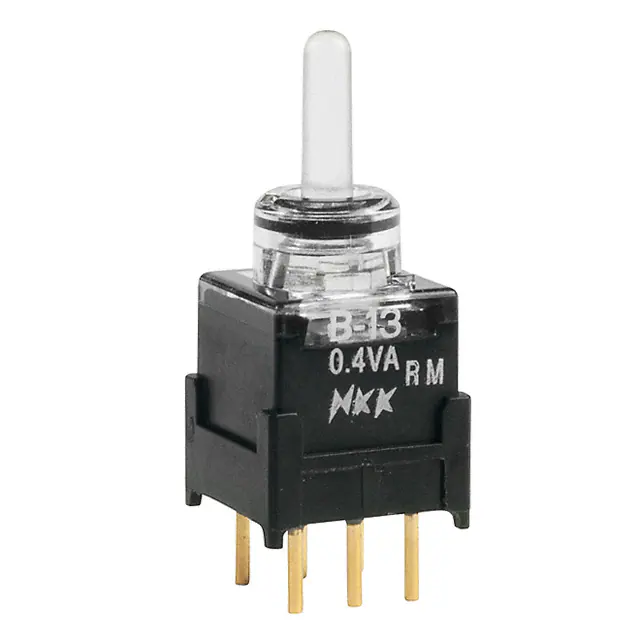

B13JJPCFSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
B | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
