БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7103T1ZQESWITCH TOGGLE SPDT 5A 120V |
22 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

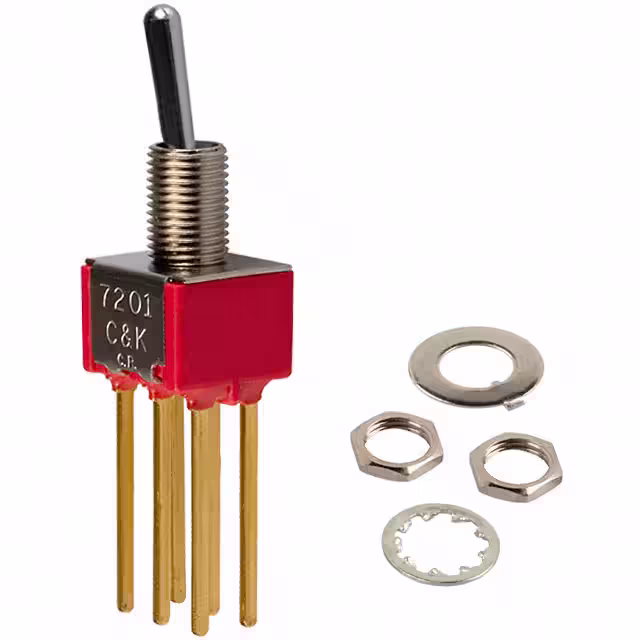

7201SYWBESWITCH TOGGLE DPDT 0.4VA 20V |
36 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7201SD9CQESWITCH TOGGLE DPDT 5A 120V |
49 |
|
Таблицы данных |
7000 | Tray | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

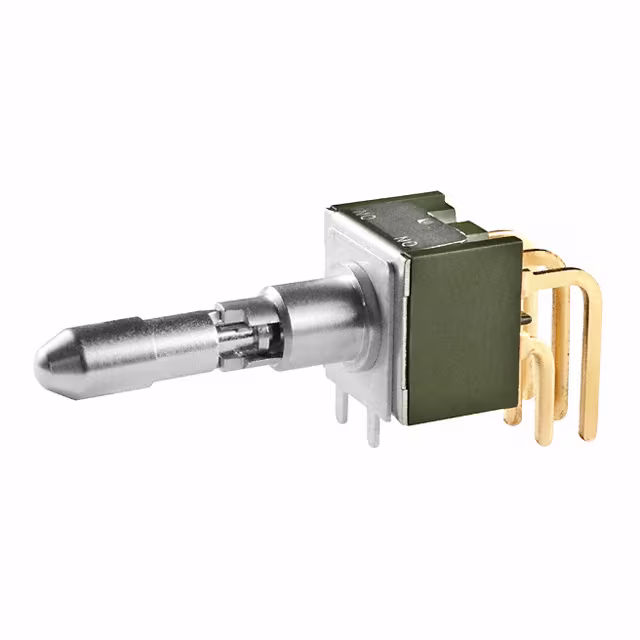

M2022LL2A30SWITCH TOGGLE DPDT 6A 125V |
6 |
|
Таблицы данных |
M | Bulk | Obsolete | Through Hole, Right Angle | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101SPY1AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
20 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
M2112TFW01SWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
M2100 | Bulk | Obsolete | Panel Mount | SPDT | On-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 14.70mm | Illuminated | LED, Green | 2.2 VDC | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -10°C ~ 55°C |
|
|
M2021BB1W01-RA-AT402SSWITCH TOGGLE DPST 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | DPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round with Cap | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2012LL4G01SWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
- |
M | Bulk | Obsolete | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
P2012BSWITCH TOGGLE SPDT 10A 125V |
0 |
|
Таблицы данных |
P | Bulk | Obsolete | Panel Mount | SPDT | On-On | 10A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 85°C |
|

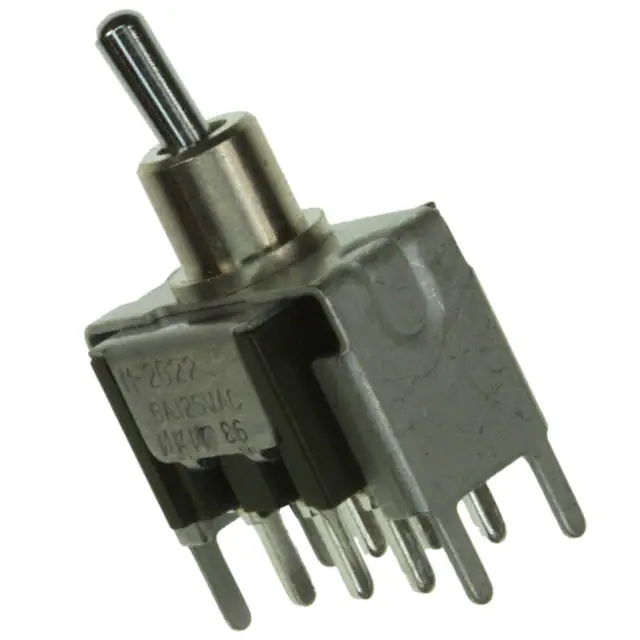

M2022S2A2W23/USWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022S2A2W23SWITCH TOGGLE DPDT 6A 125V |
54 |
|
Таблицы данных |
M | Bulk | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2022S2A2W23/CULSWITCH TOGGLE DPDT 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Through Hole | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2021LL4W01SWITCH TOGGLE DPST 6A 125V |
0 |
|
- |
M | Bulk | Obsolete | Panel Mount | DPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

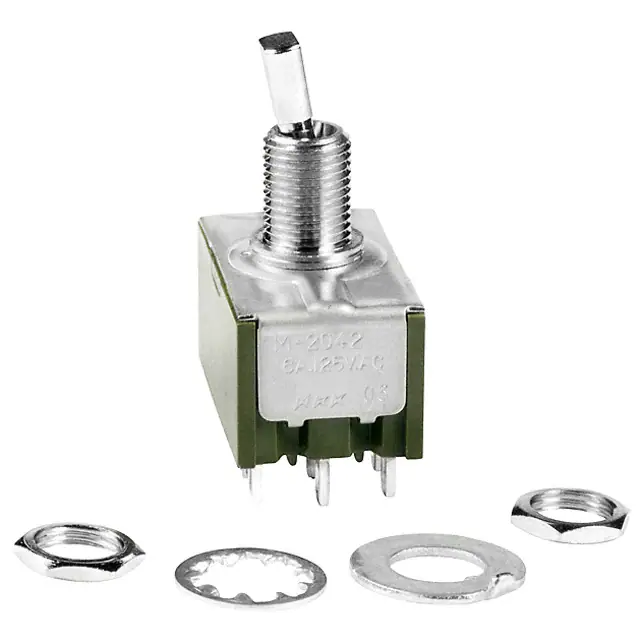

M2042E2S1W01SWITCH TOGGLE 4PDT 6A 125V |
26 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | 4PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Flatted | 6.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

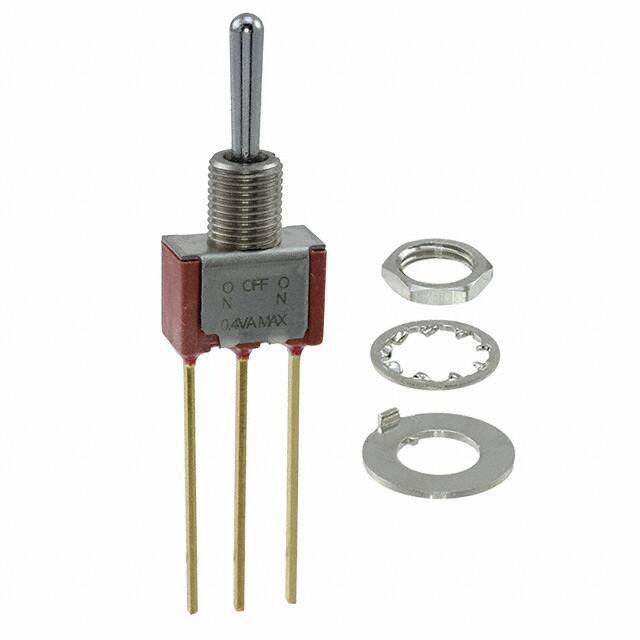

7107SDW1BESWITCH TOGGLE SPDT 0.4VA 20V |
0 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.45mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2019BB1W01-RE-AT402SSWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round with Cap | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2018BB1G01-AT402SSWITCH TOGGLE SPDT 0.4VA 28V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
M2025LL3G01SWITCH TOGGLE DPDT 0.4VA 28V |
10 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | DPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
M2011B2B1W03-AT401ASWITCH TOGGLE SPST 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|

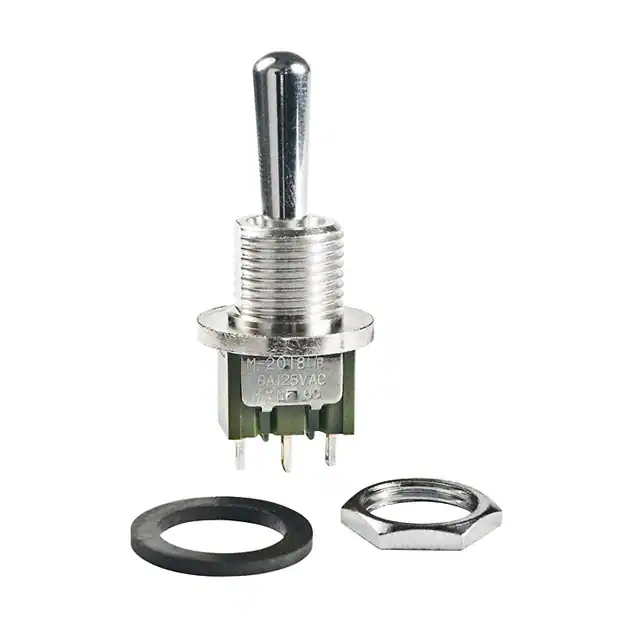

M2018B2B3W01SWITCH TOGGLE SPDT 6A 125V |
0 |
|
Таблицы данных |
M | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
