Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
55016-06-BPSWITCH TOGGLE SPDT 15A 24V |
18 |
|
- |
- | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (DC) | - | 24 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | - | 15/32-32 | - | - | - |
|
|
ETW115D12SWITCH TOGGLE SPDT 15A 127VAC |
50 |
|
Таблицы данных |
ETW | Box | Active | Panel Mount | SPDT | On-On | 15A (AC) | 127 V | - | Standard Round | 16.40mm | Non-Illuminated | - | - | Solder Lug | - | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 70°C |
|
|
A223S1YZQSWITCH TOGGLE DPDT 6A 125V |
16 |
|
Таблицы данных |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
ET225P12-ZSWITCH TOGGLE DPDT 25A 125V |
55 |
|
Таблицы данных |
ET | Bulk | Active | Panel Mount | DPDT | On-Off-On | 25A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
55088SWITCH TOGGLE SPDT 15A 24V |
74 |
|
Таблицы данных |
- | Bulk | Active | Panel Mount | SPDT | Mom-Off-On | 15A (DC) | - | 24 V | Standard Round | 17.46mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
MN32BB1W01SWITCH TOGGLE |
15 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | 3PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
MN22LL3W01-CSWITCH TOGGLE |
27 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
MN32SS4W03SWITCH TOGGLE |
6 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | 3PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
|
|
2GK721-D-3B-B/272-06747SWITCH TOGGLE DPST 20A 125V |
10 |
|
- |
G | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

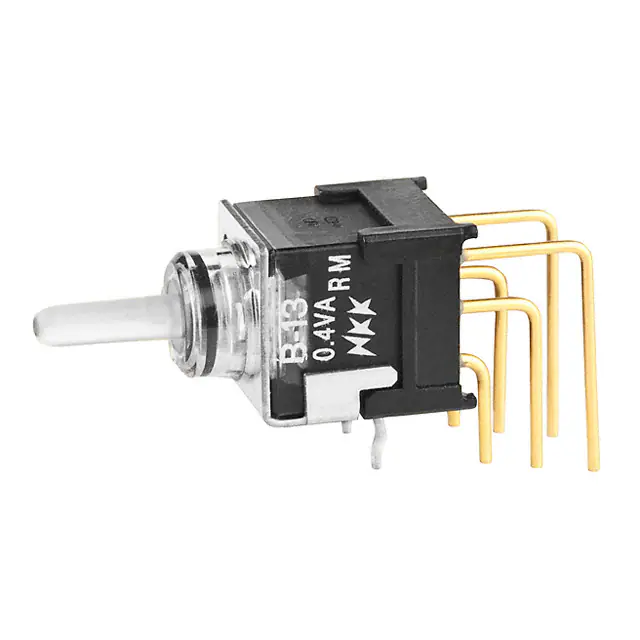

B13JJVCFSWITCH TOGGLE SPDT 0.4VA 28V |
30 |
|
Таблицы данных |
B | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Illuminated | LED, Green/Red | 1.95, 3.3 VDC | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -25°C ~ 55°C |
|
|
MN28B2B1W03SWITCH TOGGLE |
83 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | PC Pin | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
ETW115E12SWITCH TOGGLE SPDT 15A 127VAC |
50 |
|
Таблицы данных |
ETW | Box | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 127 V | - | Standard Round | 16.40mm | Non-Illuminated | - | - | Solder Lug | - | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 70°C |
|
|
MN24SS1G03SWITCH TOGGLE |
66 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN12LL2G30SWITCH TOGGLE |
26 |
|
Таблицы данных |
M | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN32SS2W30SWITCH TOGGLE |
73 |
|
Таблицы данных |
M | Bulk | Active | Through Hole, Right Angle | 3PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
55055-01SWITCH TOGGLE SPST 15A 24V |
68 |
|
Таблицы данных |
- | Bulk | Active | Panel Mount | SPST | On-Off | 15A (DC) | - | 24 V | Standard Round | 38.48mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
|
MN42SS1W03SWITCH TOGGLE |
65 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | 4PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
ETW115G12SWITCH TOGGLE SPDT 15A 127VAC |
50 |
|
Таблицы данных |
ETW | Box | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC) | 127 V | - | Standard Round | 16.40mm | Non-Illuminated | - | - | Solder Lug | - | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 70°C |
|
ATLE44D-6M3-ZSWITCH TOGGLE 4PDT 50MA 48V |
38 |
|
Таблицы данных |
ATLE4 | Tray | Active | Through Hole, Right Angle | 4PDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Locking Lever | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
|
MTA206RSWITCH TOGGLE DPDT 6A 125V |
100 |
|
Таблицы данных |
MTA Green | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
