БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MN22S2A2W40SWITCH TOGGLE |
16 |
|
Таблицы данных |
M | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.86mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|

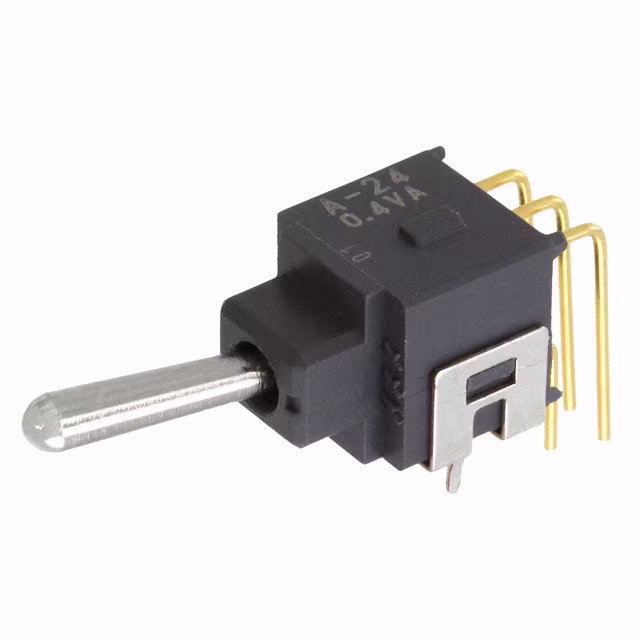

A24AHSWITCH TOGGLE SP3T 0.4VA 28V |
22 |
|
Таблицы данных |
A | Bulk | Active | Through Hole, Right Angle | SP3T | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
54103SWITCH TOGGLE SPDT 25A 12V |
78 |
|
- |
54100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 25A (DC) | - | 12 V | Flatted | 17.46mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|

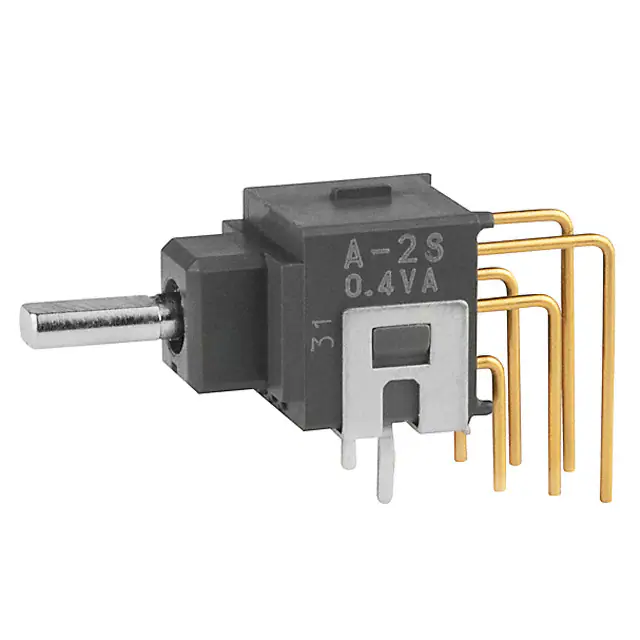

A2SHVSWITCH TOGGLE DPDT 0.4VA 28V |
8 |
|
Таблицы данных |
A | Tray | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Process Sealed | -30°C ~ 85°C |
|

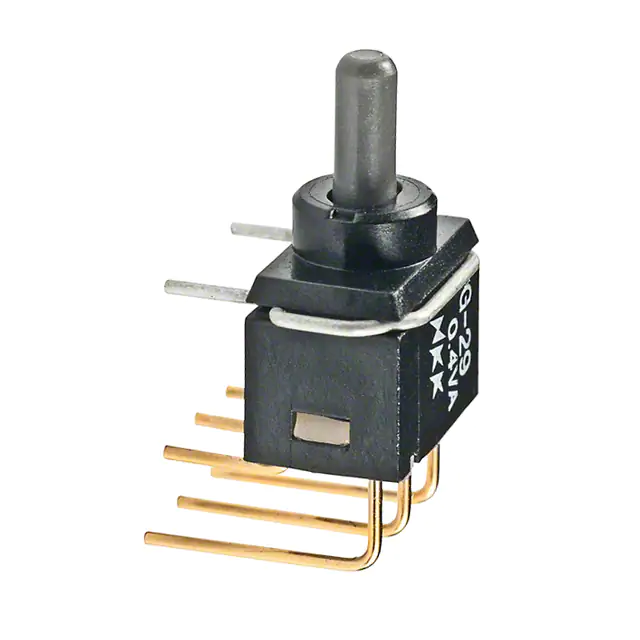

G29AHSWITCH TOGGLE DPDT 0.4VA 28V |
81 |
|
Таблицы данных |
G | Tray | Active | Through Hole, Right Angle | DPDT | On-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|

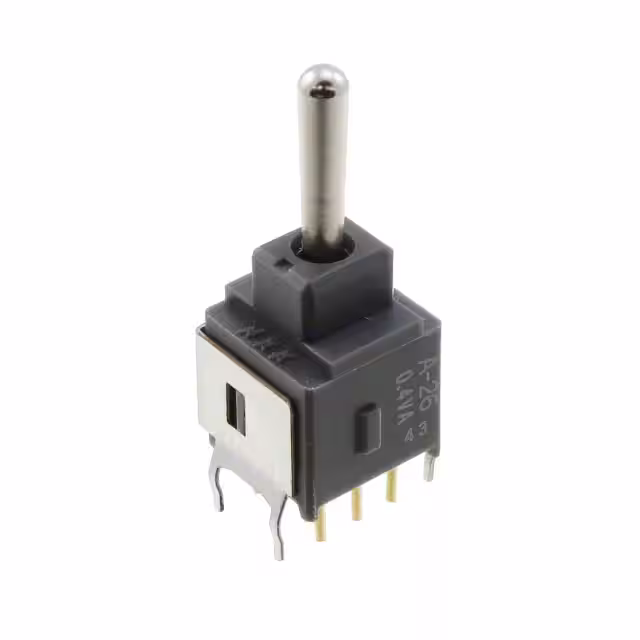

A26ABSWITCH TOGGLE SP3T 0.4VA 28V |
15 |
|
Таблицы данных |
A | Bulk | Active | Through Hole | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
D22023PSWITCH TOGGLE DPDT 0.4VA 48V |
10 |
|
Таблицы данных |
D2 | Bulk | Active | Panel Mount | DPDT | On-Off-On | 0.4VA (AC/DC) | 48 V | 48 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -10°C ~ 70°C |
|
|
MN18EA1G01SWITCH TOGGLE |
30 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 13.21mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN11B2B1W01SWITCH TOGGLE |
32 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
B18A1PSWITCH TOGGLE SPDT 0.4VA 28V |
21 |
|
Таблицы данных |
B | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 8.00mm | Non-Illuminated | - | - | PC Pin | Circular - 6.00mm Dia | M6 x 0.75 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN22BB1W01SWITCH TOGGLE |
51 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 11.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
MN12B2B3W01SWITCH TOGGLE |
33 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
MN18ES2G13SWITCH TOGGLE |
10 |
|
Таблицы данных |
M | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 11.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -30°C ~ 85°C |
|
|
MN28SS1W01SWITCH TOGGLE |
49 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 4A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
ET215S12-ZSWITCH TOGGLE DPDT 15A 125V |
53 |
|
Таблицы данных |
ET | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
|
472133020311SWITCH TOGGLE DPDT 1A 30V |
26 |
|
Таблицы данных |
WS-TOTV | Tray | Active | Panel Mount | DPDT | On-Off-On | 1A (DC) | - | 30 V | Standard Round | 7.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|

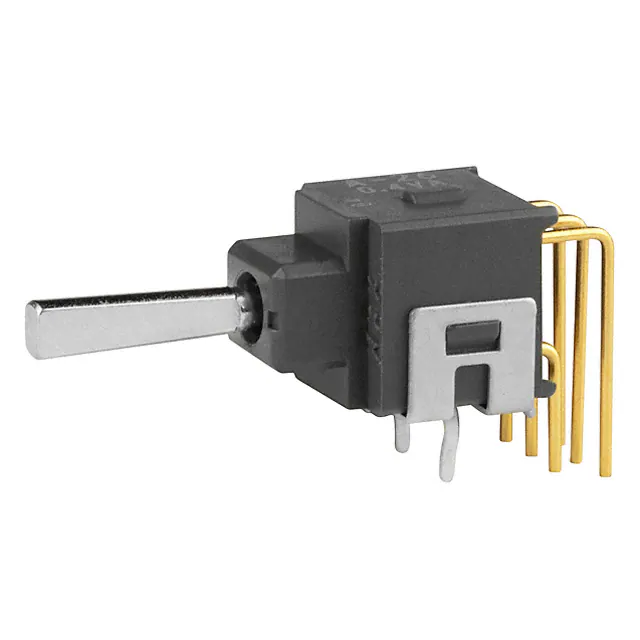

A26EHSWITCH TOGGLE SP3T 0.4VA 28V |
38 |
|
Таблицы данных |
A | Tray | Active | Through Hole, Right Angle | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Flatted | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
MN13B2B1W01SWITCH TOGGLE |
26 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | -30°C ~ 85°C |
|
|
MN29ES1W01SWITCH TOGGLE |
24 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 4A (AC), 3A (DC) | 125 V | 30 V | Flatted | 11.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN28SS4G03SWITCH TOGGLE |
14 |
|
Таблицы данных |
M | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | M6 x 0.75 | - | - | -30°C ~ 85°C |
