БОМ
Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
657HSWITCH TOGGLE 3PDT 10A 250V |
38 |
|
Таблицы данных |
600H | Bulk | Active | Panel Mount | 3PDT | Mom-Off-Mom | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
2NT1-10SWITCH TOGGLE SP3T 15A 125V |
35 |
|
Таблицы данных |
NT | Bulk | Active | Panel Mount | SP3T | On-On-On | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -40°C ~ 71°C |
|
3647NF/2SWITCH TOGGLE DPDT 6A 125V |
17 |
|
Таблицы данных |
3600NF | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
|

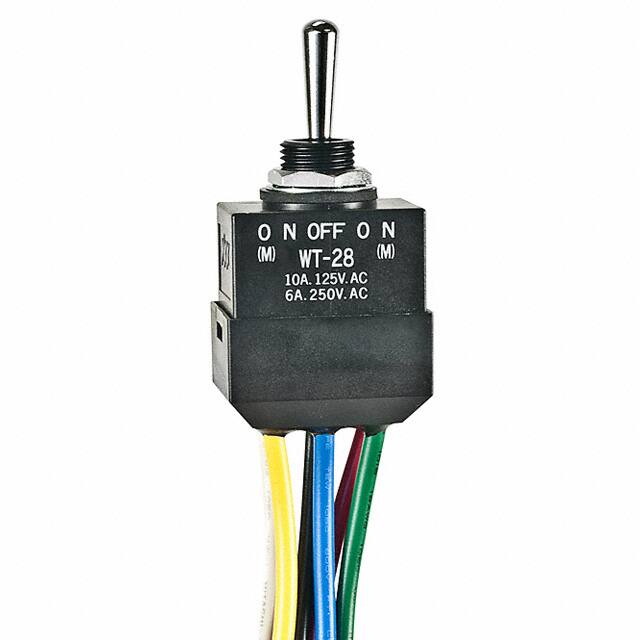

WT28LSWITCH TOGGLE DPDT 10A 125V |
43 |
|
Таблицы данных |
WT | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
MTG62AD4SWITCH TOGGLE SPDT 6A 30V |
81 |
|
Таблицы данных |
MT | Box | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | - | 30 V | Paddle | 16.32mm | Non-Illuminated | - | - | Solder Lug | Circular - 17.65mm Dia | 11/16-28 | IP68 - Dust Tight, Waterproof | Black Actuator | -40°C ~ 85°C |
|
641H/21VSWITCH TOGGLE DPST 15A 250V |
15 |
|
Таблицы данных |
600H | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 250 V | - | Locking Lever | 19.40mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | - | - | -20°C ~ 55°C |
|
|
MTG72AD6SWITCH TOGGLE SPDT 6A 30V |
84 |
|
Таблицы данных |
MT | Box | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | - | 30 V | Paddle | 16.32mm | Non-Illuminated | - | - | Solder Lug | Circular - 17.65mm Dia | 11/16-28 | IP68 - Dust Tight, Waterproof | Black Actuator | -40°C ~ 85°C |
|
61NT1-3SWITCH TOGGLE SPDT 15A 125V |
25 |
|
Таблицы данных |
NT | Bulk | Active | Panel Mount | SPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
07-1-2-12SWITCH TOGGLE SPST 15A 115V |
17 |
|
Таблицы данных |
07 | Box | Active | Panel Mount | SPST | Off-Mom | 15A (AC/DC) | 115 V | 28 V | Standard Round | - | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | M12 x 0.75 | IP65 - Dust Tight, Water Resistant | - | -35°C ~ 60°C |
|
|
07-1-1-10SWITCH TOGGLE SPST 15A 115V |
24 |
|
Таблицы данных |
07 | Box | Active | Panel Mount | SPST | On-Off | 15A (AC/DC) | 115 V | 28 V | Standard Round | - | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | M12 x 0.75 | IP65 - Dust Tight, Water Resistant | - | -35°C ~ 60°C |
|
101TL1-2SWITCH TOGGLE SPST 15A 125V |
18 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | SPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
3531021N000SWITCH TOGGLE SPST 20A 28V |
16 |
|
Таблицы данных |
3500 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC), 15A (DC) | - | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
4TL1-7SWITCH TOGGLE 4PDT 10A 125V |
20 |
|
Таблицы данных |
TL | Bulk | Active | Panel Mount | 4PDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

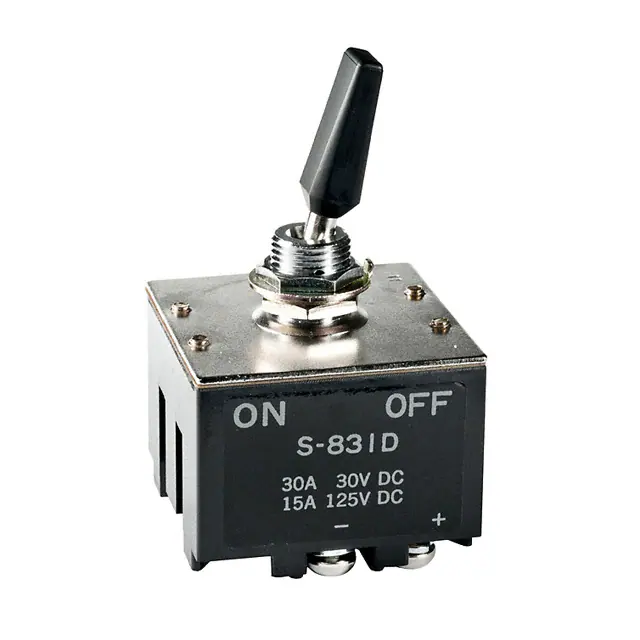

S831DSWITCH TOGGLE 3PST 30A 30V |
15 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | 3PST | On-Off | 30A (DC) | - | 30 V | Flatted | 27.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
|
3531001ND02SWITCH TOGGLE SPST 20A 28V |
17 |
|
Таблицы данных |
3500 | Bulk | Active | Panel Mount | SPST | On-Off | 20A (AC), 15A (DC) | - | 28 V | Locking Lever | 20.00mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
|
61NT887-7SWITCH TOGGLE SPDT 10A 125V |
13 |
|
Таблицы данных |
NT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
|
12244AG3VX408SWITCH TOGGLE SP3T 4A 125V |
23 |
|
Таблицы данных |
12000 | Bulk | Active | Panel Mount | SP3T | On-On-On | 4A (AC/DC) | 125 V | 30 V | Locking Lever | 20.60mm | Non-Illuminated | - | - | PC Pin | Circular - 12.00mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|

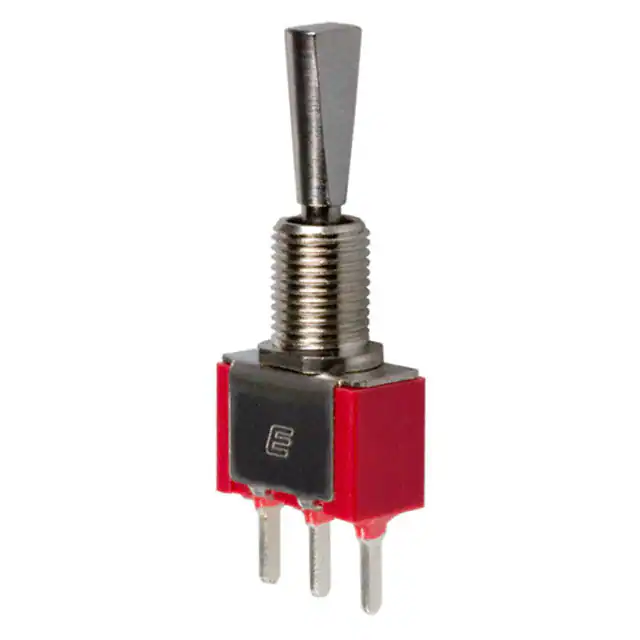

100SP1T6B11M2QESWITCH TOGGLE SPDT 5A 120V |
85 |
|
Таблицы данных |
100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

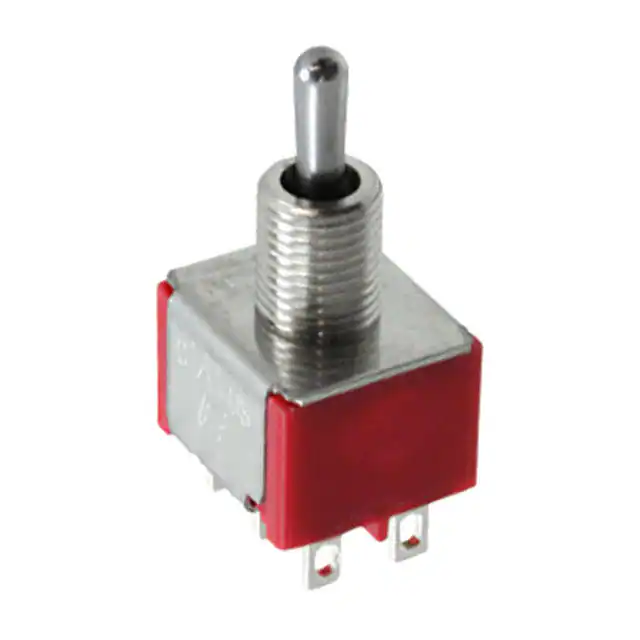

100DP4T2B3M1QESWITCH TOGGLE DPDT 5A 120V |
76 |
|
Таблицы данных |
100 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
2M1-SP1-T1-B3-M2QESWITCH TOGGLE SPDT 5A 125V |
99 |
|
Таблицы данных |
2M | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
