Переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип крепления | Схема | Функция переключения | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Освещение | Тип освещения, цвет | Напряжение освещения (номинальное) | Тип вывода | Размеры выреза панели | Резьба втулки | Защита от проникновения | Особенности | Рабочая температура |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WT23SSWITCH TOGGLE DPDT 10A 125V |
9 |
|
Таблицы данных |
WT | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
CT31021N020SWITCH TOGGLE SPST 10A 125V |
78 |
|
Таблицы данных |
CT | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|

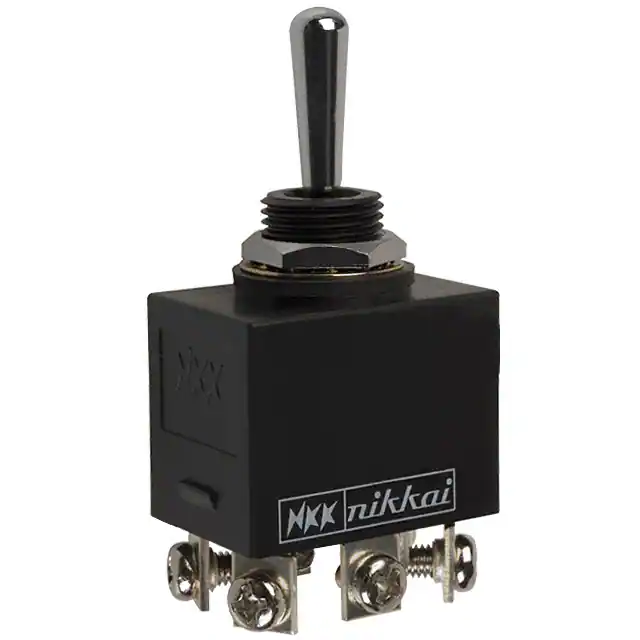

WT22TSWITCH TOGGLE DPDT 10A 125V |
23 |
|
Таблицы данных |
WT | Bulk | Active | Panel Mount | DPDT | On-On | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
S6AW-WLSWITCH TOGGLE DPDT 20A 125V |
10 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Wire Leads | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
S28AW45SWITCH TOGGLE DPDT 15A 125V |
9 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 45.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 70°C |
|
CT31001N020SWITCH TOGGLE SPST 10A 125V |
28 |
|
Таблицы данных |
CT | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|

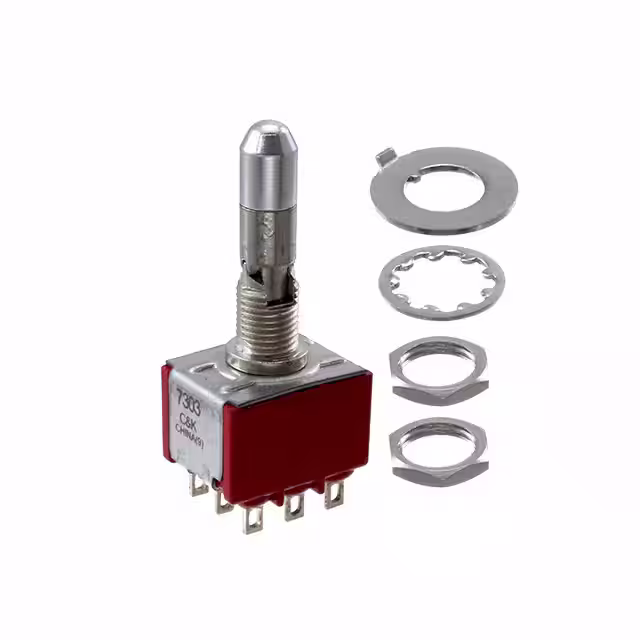

7303K2ZQESWITCH TOGGLE 3PDT 5A 120V |
21 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 17.88mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

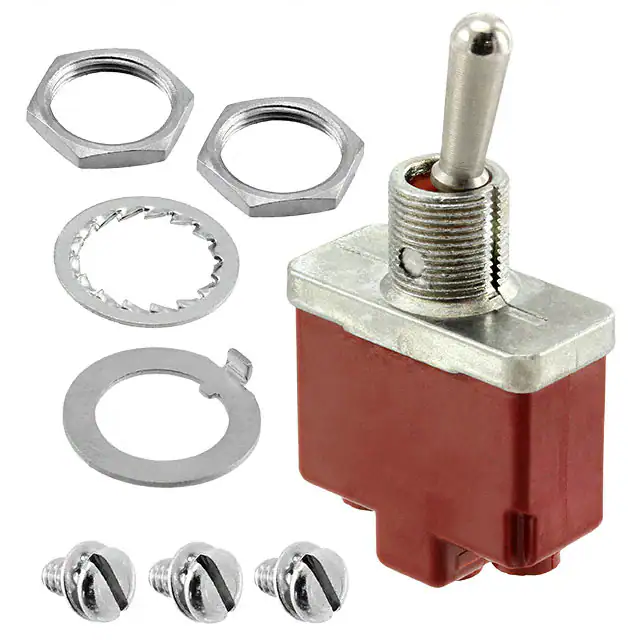

CT36001N020SWITCH TOGGLE SPDT 10A 125V |
50 |
|
Таблицы данных |
CT | Bulk | Active | Panel Mount | SPDT | On-On | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|
55054-04SWITCH TOGGLE DPDT 15A 24V |
44 |
|
Таблицы данных |
- | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 15A (DC) | - | 24 V | Standard Round | 38.10mm | Non-Illuminated | - | - | Screw Terminal | Circular - 11.90mm Dia | 15/32-32 | - | - | - |
|
S8AWBSWITCH TOGGLE SPDT 15A 125V |
18 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP68 - Dust Tight, Waterproof | Waterproof Boot | -30°C ~ 70°C |
|

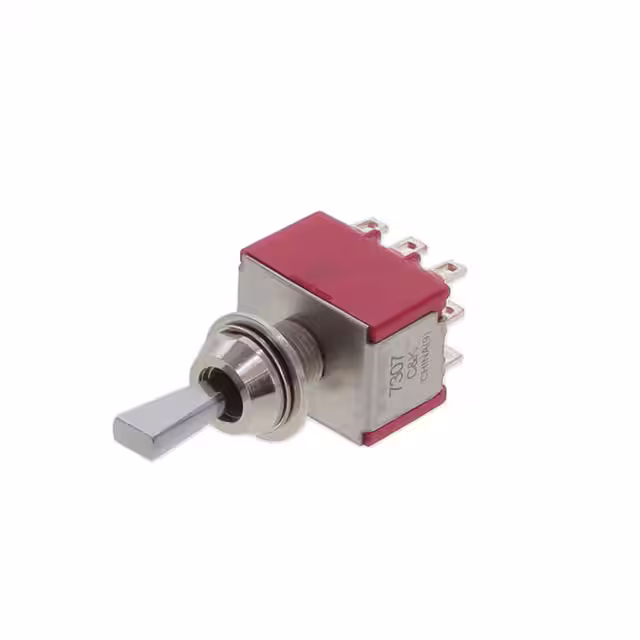

7307P3YZQESWITCH TOGGLE 3PDT 5A 120V |
33 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | 3PDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
3637NF/2SWITCH TOGGLE SPDT 6A 125V |
22 |
|
Таблицы данных |
3600NF | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
|

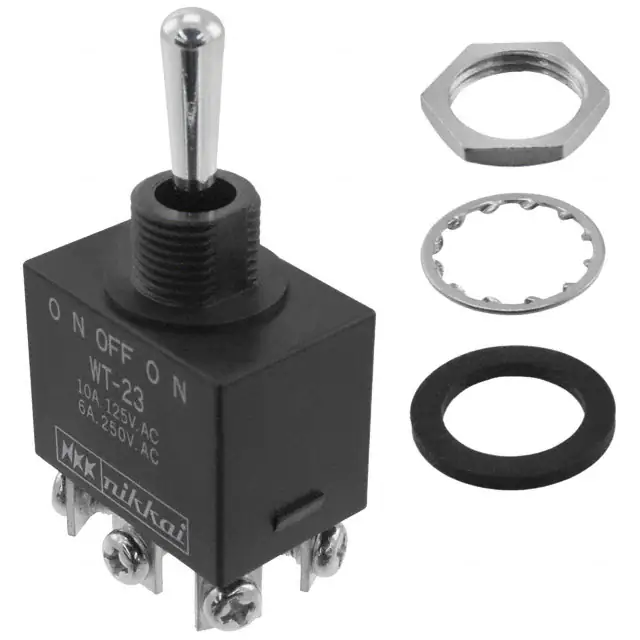

WT23TSWITCH TOGGLE DPDT 10A 125V |
24 |
|
Таблицы данных |
WT | Bulk | Active | Panel Mount | DPDT | On-Off-On | 10A (AC/DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 70°C |
|
3639NFSWITCH TOGGLE SPDT 6A 125V |
47 |
|
Таблицы данных |
3600NF | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
|
12010XSWITCH TOGGLE 3POS STR 1B/1B |
70 |
|
Таблицы данных |
12000 | Bulk | Active | Panel Mount | - | - | - | - | - | Standard Round | 22.22mm | Non-Illuminated | - | - | Solder Lug | - | 15/32-32 | - | - | - |
|

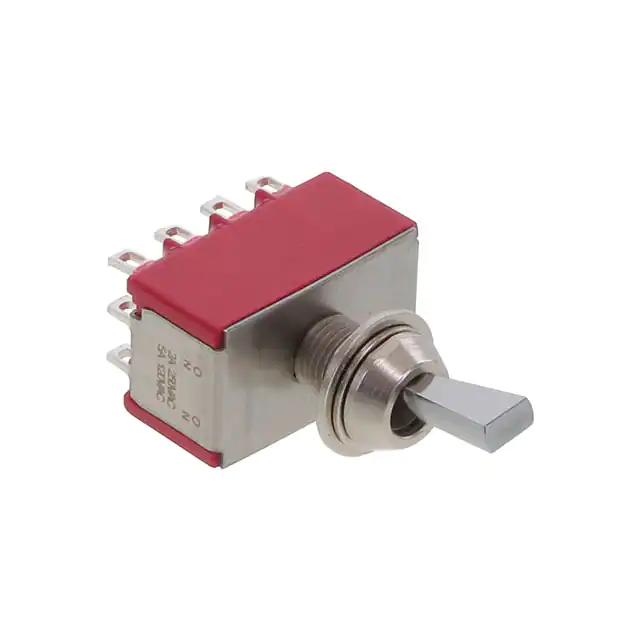

7401P3YZQESWITCH TOGGLE 4PDT 5A 120V |
100 |
|
Таблицы данных |
7000 | Bulk | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
32NT91-12SWITCH TOGGLE DPDT 15A 125V |
85 |
|
Таблицы данных |
NT | Bulk | Active | Panel Mount | DPDT | On-On-On | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|
106361175SWITCH TOGGLE SPDT 3A 110V |
27 |
|
Таблицы данных |
10600 | Bulk | Active | Panel Mount | SPDT | On-On | 3A (AC/DC) | 110 V | 24 V | Standard Round | 11.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 10.20mm Dia | M10 x 0.75 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
651H/2SWITCH TOGGLE 3PST 15A 250V |
90 |
|
Таблицы данных |
600H | Bulk | Active | Panel Mount | 3PST | On-Off | 15A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
S3AWBSWITCH TOGGLE SPDT 15A 125V |
9 |
|
Таблицы данных |
S | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC), 20A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP68 - Dust Tight, Waterproof | Waterproof Boot | -30°C ~ 70°C |
