Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A10515RSZQSWITCH ROTARY 5POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 5 | Fixed | 1 | 1 | SP5T | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|

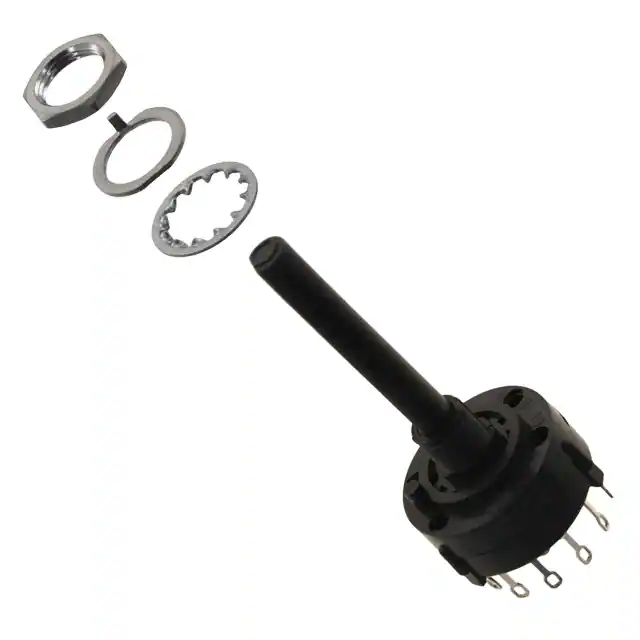

A30415RSZQESWITCH ROTARY 4POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 20.83mm |
|
|
A10615RSZQSWITCH ROTARY 6POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 6 | Fixed | 1 | 1 | SP6T | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|

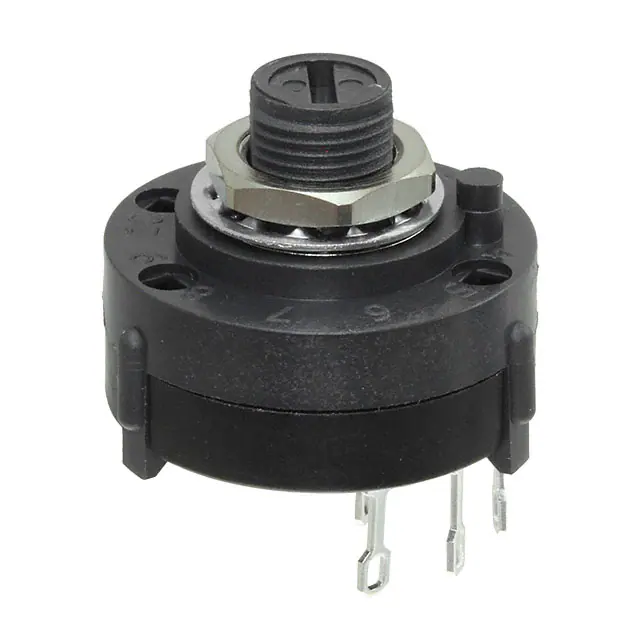

A103S1RNZQSWITCH ROTARY 3POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
|
A12415RNZQSWITCH ROTARY 4POS 2.5A 125V |
19 |
|
Таблицы данных |
A | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 38.10mm | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | - | 20.83mm |
|
|
A10403RNCBKSWITCH ROTARY 4POS 0.4VA 20V |
0 |
|
Таблицы данных |
A | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
|
A12503RNCBKSWITCH ROTARY 8POS 0.4VA 20V |
0 |
|
Таблицы данных |
A | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Flatted (6.35mm Dia) | 9.53mm | 45° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals, Splashproof Bushing Seal | 14.48mm |
|
|
A106S1MNZGKSWITCH ROTARY 6POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Screwdriver Slot | Flush | 30° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Epoxy Sealed Terminals, Splashproof Bushing Seal | 20.83mm |
|
A11203RNCQESWITCH ROTARY 12POS 2.5A 125V |
4 |
|
Таблицы данных |
A | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|

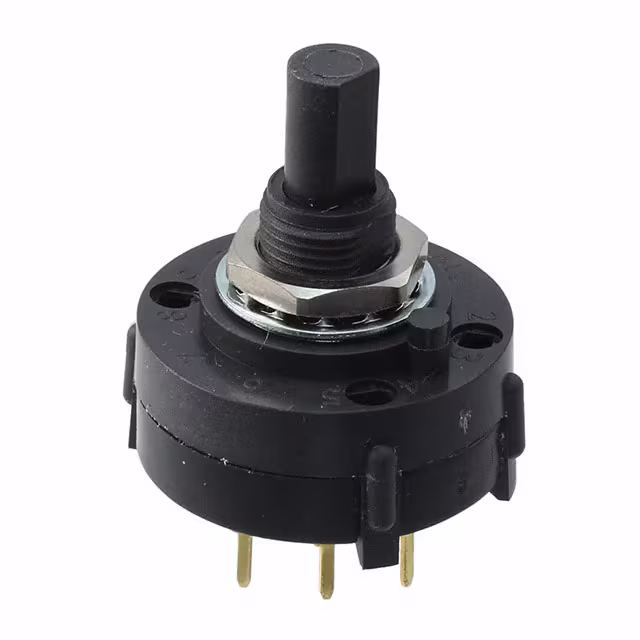

A20303RNCGSWITCH ROTARY 3POS 2.5A 125V |
0 |
|
Таблицы данных |
A | Tray | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Gold | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
|
|
A402S1RNCBESWITCH ROTARY 2POS 0.4VA 20V |
0 |
|
Таблицы данных |
A | Tray | Active | 2 | Fixed | 1 | 4 | 4PDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | Epoxy Sealed Terminals | 14.48mm |
|

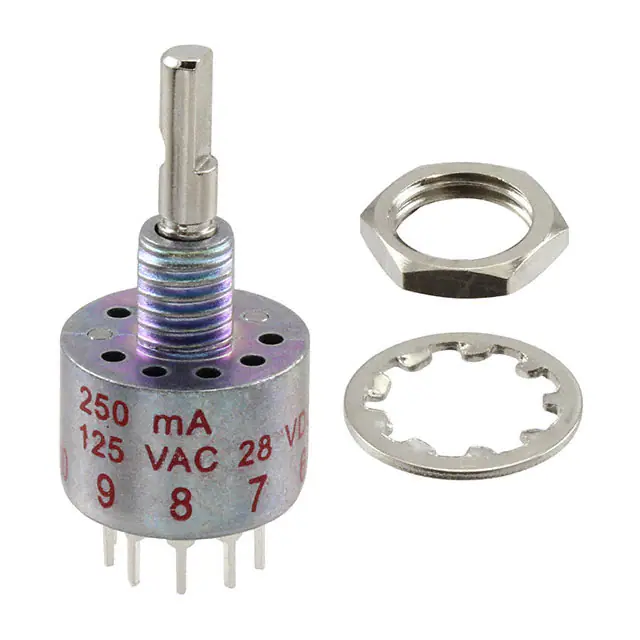

MA04L1NCQDSWITCH ROTARY 4POS 250MA 125V |
0 |
|
Таблицы данных |
M | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|
MB05L1NCQDSWITCH ROTARY 5POS 250MA 125V |
0 |
|
Таблицы данных |
M | Tray | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|

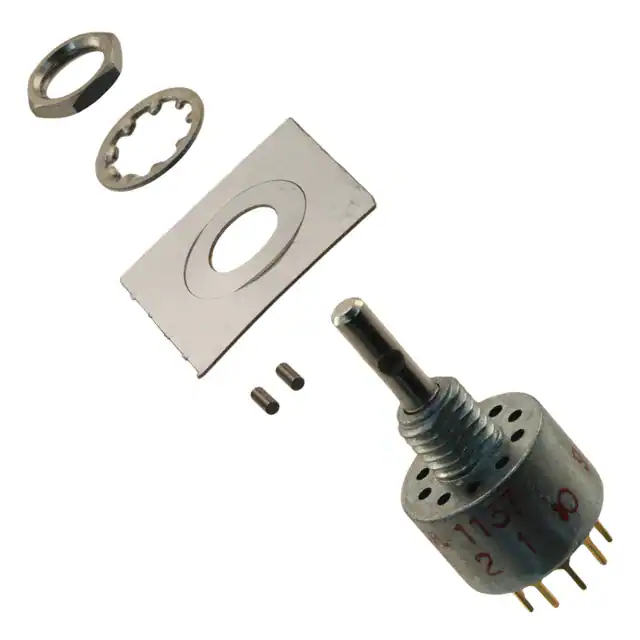

MA00L3NCGDSWITCH ROTARY 10POS 250MA 125V |
0 |
|
Таблицы данных |
M | Tray | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Round (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|

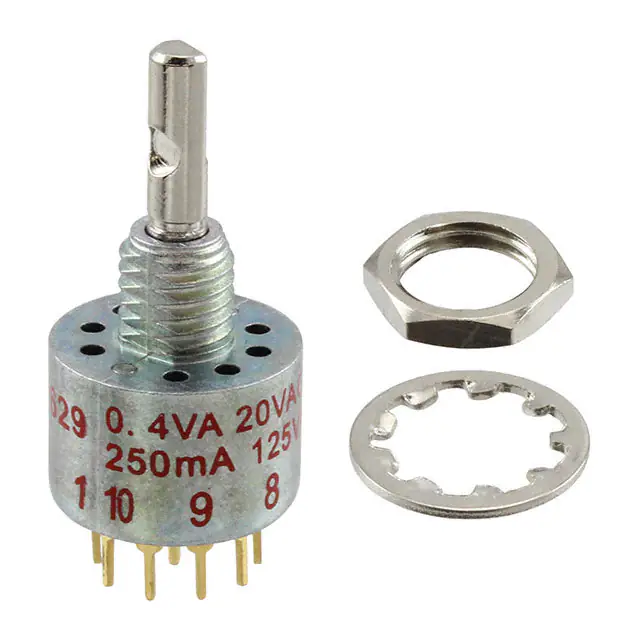

MA05L1NCGDSWITCH ROTARY 5POS 250MA 125V |
0 |
|
Таблицы данных |
M | Tray | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|
50DP60-01-2-AJNSWITCH ROTARY 2-3POS 150MA 115V |
1 |
|
Таблицы данных |
50 | Bulk | Active | 2 ~ 3 | Adjustable | 1 | 2 | DP3T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 60° | - | Gold | Panel Mount, Through Hole | PC Pin | - | 13.64mm |
|
50C36-01-2-04SSWITCH ROTARY 4POS 150MA 115V |
5 |
|
Таблицы данных |
50 | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Shorting (MBB) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|

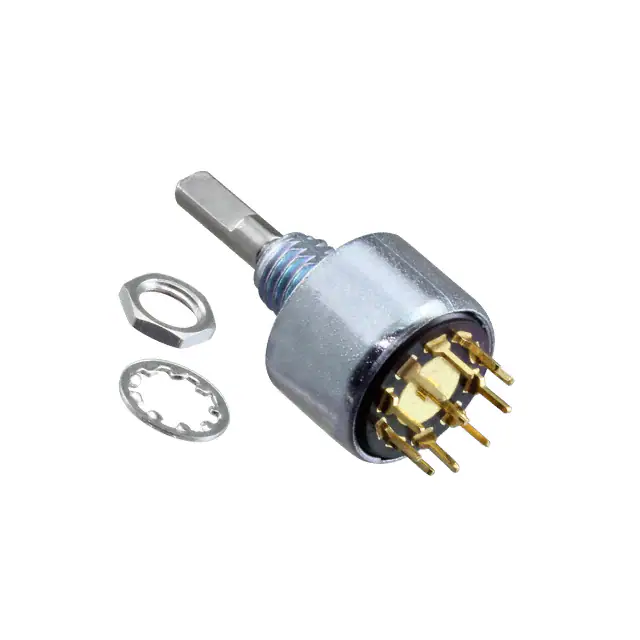

MB04L1NCGDSWITCH ROTARY 4POS 250MA 125V |
0 |
|
Таблицы данных |
M | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|
MD06S1NZQDSWITCH ROTARY 6POS 250MA 125V |
5 |
|
Таблицы данных |
M | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 14.86mm |
|
|
50KM90-01-1-04NSWITCH ROTARY 4POS 150MA 115V |
1 |
|
Таблицы данных |
50 | Bulk | Active | 4 | Continuous | 1 | 1 | SP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 9.53mm | 90° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
