Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
57M22-06-4-03NSWITCH ROTARY 3POS 250MA 115V |
0 |
|
Таблицы данных |
57 | Bulk | Active | 3 | Fixed | 6 | 4 | 4P3T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 22.5° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 71.91mm |
|
|
44D30-12-1-AJSSWITCH ROTARY 2-12POS 1A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 2 ~ 12 | Adjustable | 12 | 1 | SP12T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 129.06mm |
|
|
212-6T2ESWITCH ROTARY 6POS 20A 150V |
0 |
|
Таблицы данных |
212 | Bulk | Active | 6 | Fixed | 2 | 1 | SP6T | Non-Shorting (BBM) | 20A (AC/DC) | 150 V | 20 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 106.40mm |
|
|
24004-10NSWITCH ROTARY 10POS 1A 115V |
1 |
|
Таблицы данных |
24 | Bulk | Discontinued at Digi-Key | 10 | Continuous | 4 | 1 | SP10T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 7.92mm | 36° | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - | - |
|
|
59HS18-05-1-19NSWITCH ROTARY 19POS 250MA 115V |
0 |
|
Таблицы данных |
59 | Bulk | Active | 19 | Fixed | 5 | 1 | SP19T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 18° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 57.10mm |
|
|
42M36-12-1-10NSWITCH ROTARY 10POS 1A 115V |
0 |
|
- |
42 | Bulk | Active | 10 | Continuous | 12 | 1 | SP10T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 129.06mm |
|
|
59M18-04B20NSWITCH ROTARY 20POS 250MA 115V |
0 |
|
Таблицы данных |
59 | Bulk | Active | 20 | Fixed | 4 | 1 | SP20T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 18° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 48.64mm |
|
|
05004-02NSWITCH ROTARY 2POS 1A 115V |
0 |
|
Таблицы данных |
5000 | Bulk | Active | 2 | Fixed | 4 | 1 | SPDT | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 7.92mm | 36° | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - | - |
|
|
447615-1SWITCH ROTARY 20/36POS |
0 |
|
Таблицы данных |
3510 | Bulk | Discontinued at Digi-Key | 20, 36 | Fixed | 6 | - | - | Not Specified | - | - | - | Concentric (3.17mm Dia, 6.35mm Dia) | 84.10mm | 18° | - | - | Panel Mount, Through Hole | PC Pin | - | - |
|
H20407RR05QSWITCH ROTARY 4POS 12A 125V |
46 |
|
Таблицы данных |
H | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Not Specified | 12A (AC), 1A (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 7.29mm | 45° | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | - | 15.25mm |
|
A10703RNMCQSWITCH ROTARY 7POS 2.5A 125V |
62 |
|
Таблицы данных |
A | Bulk | Active | 7 | Fixed | 1 | 1 | SP7T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Modular Base | 14.48mm |
|
|
A12503RNMCQSWITCH ROTARY 8POS 2.5A 125V |
30 |
|
Таблицы данных |
A | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 45° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | Modular Base | 14.48mm |
|
MC00L1NZQDROTARY |
19 |
|
Таблицы данных |
M | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 14.86mm |
|
MA05L1NCGDROTARY |
10 |
|
Таблицы данных |
M | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 10.42mm |
|
|
A10503RNZGESWITCH ROTARY 5POS 2.5A 125V |
62 |
|
Таблицы данных |
A | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Gold | Panel Mount | Solder Lug | Epoxy Sealed Terminals | 20.83mm |
|
M10H Z A3+003+G2SWITCH ROTARY 2POS 20A |
6 |
|
Таблицы данных |
M10H | Retail Package | Active | 2 | - | - | - | - | - | 20A | - | - | - | - | - | - | - | Panel Mount | Screw Terminal | - | - |
|
|
N20 PF WU3+G2ENCLOSED REVERSING SWITCH 3P 25A |
2 |
|
Таблицы данных |
- | Retail Package | Active | 3 | Fixed | 1 | 3 | 3P3T | Not Specified | 35A (AC) | 600 V | - | Knob | - | 60° | - | - | Panel Mount | Screw Terminal | - | - |
|
N33F E WU3+G2SWITCH ROTARY 3POS 40A |
3 |
|
Таблицы данных |
N33F | Retail Package | Active | 3 | - | - | - | - | - | 40A | - | - | - | - | - | - | - | Panel Mount | Screw Terminal | - | - |
|
KC26A30.001NPSSWITCH ROTARY 6POS 350MA 125V |
0 |
|
Таблицы данных |
KC | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|

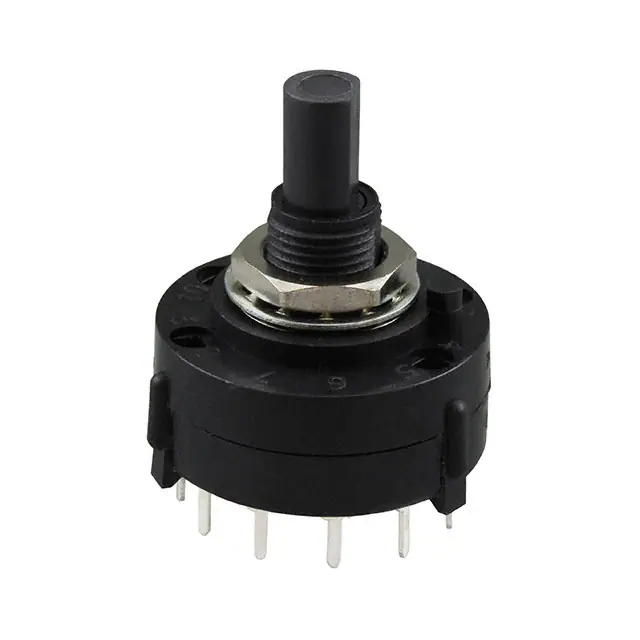

A10603RNCQSWITCH ROTARY 6POS 2.5A 125V |
22 |
|
Таблицы данных |
A | Tray | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flatted (6.35mm Dia) | 9.53mm | 30° | Silver (Ag) | Silver | Panel Mount, Through Hole | PC Pin | - | 14.48mm |
