Поворотные переключатели
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Количество положений | Упоры указателя | Количество настилов | Количество полюсов на настил | Цепь на настил | Время контакта | Номинальный ток (Ампер) | Номинальное напряжение - переменный ток | Номинальное напряжение - постоянный ток | Тип привода | Длина привода | Угол броска | Материал контакта | Покрытие контакта | Тип крепления | Тип вывода | Особенности | Глубина за панелью |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
57M22-02-1-15NSWITCH ROTARY 15POS 250MA 115V |
0 |
|
Таблицы данных |
57 | Bulk | Active | 15 | Fixed | 2 | 1 | SP15T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 22.5° | Silver Alloy | Gold | Panel Mount | Solder Lug | - | 31.72mm |
|
|
57HS22-01-7-02NSWITCH ROTARY 2POS 250MA 115V |
0 |
|
Таблицы данных |
57 | Bulk | Active | 2 | Fixed | 1 | 7 | 7PDT | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 22.5° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 23.27mm |
|
|
59MS18-01-1-06SSWITCH ROTARY 6POS 250MA 115V |
0 |
|
Таблицы данных |
59 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Shorting (MBB) | 250mA (AC/DC) | 115 V | 30 V | Flatted (6.35mm Dia) | 11.10mm | 18° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 23.27mm |
|
|
44HS45-02-2-03SSWITCH ROTARY 3POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 3 | Fixed | 2 | 2 | DP3T | Shorting (MBB) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 34.82mm |
|
|
44HGS45-03C03SSWITCH ROTARY 3POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 3 | Fixed | - | 2 | DP3T | Shorting (MBB) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | - |
|
|
44HS30-04-6-02SSWITCH ROTARY 2POS 1A 115V |
0 |
|
- |
44 | Bulk | Active | 2 | Fixed | 4 | 6 | 6PDT | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 52.40mm |
|
|
44A30-03-6-02NSWITCH ROTARY 2POS 1A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 2 | Fixed | 3 | 6 | 6PDT | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|
|
08MS36-06-1-07NSWITCH ROTARY 7POS 250MA 115V |
0 |
|
- |
08 | Bulk | Active | 7 | Fixed | 6 | 1 | SP7T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 64.77mm |
|
|
HS16-6SNSWITCH ROTARY 2-11POS 12A 125V |
0 |
|
Таблицы данных |
HS | Box | Obsolete | 2 ~ 11 | Adjustable | 6 | 1 | SP11T | Shorting (MBB) | 12A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Phosphor Bronze | - | Panel Mount | Solder Lug | - | 81.50mm |
|
|
42HS36-03-2-03NSWITCH ROTARY 3POS 1A 115V |
0 |
|
- |
42 | Bulk | Active | 3 | Fixed | 3 | 2 | DP3T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 43.61mm |
|
|
44HS45-03-1-04NSWITCH ROTARY 4POS 5A 115V |
0 |
|
- |
44 | Bulk | Active | 4 | Fixed | 3 | 1 | SP4T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|
|
09MS30-01-6-02NSWITCH ROTARY 2POS 250MA 115V |
0 |
|
Таблицы данных |
09 | Bulk | Active | 2 | Fixed | 1 | 6 | 6PDT | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 24.38mm |
|
|
44HS30-05-4-03SSWITCH ROTARY 3POS 1A 115V |
0 |
|
- |
44 | Bulk | Active | 3 | Fixed | 5 | 4 | 4P3T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 61.19mm |
|
|
44M30-03-3-04SSWITCH ROTARY 4POS 1A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 4 | Fixed | 3 | 3 | 3P4T | Shorting (MBB) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 43.61mm |
|
|
44UA45-08-1-04NSWITCH ROTARY 4POS 1A 125V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 4 | Fixed | 8 | 1 | SP4T | Non-Shorting (BBM) | 1A (AC) | 125 V | - | Flatted (6.35mm Dia) | 11.10mm | 45° | Silver Alloy | - | Panel Mount | Solder Lug | - | 93.90mm |
|
|
09MS30-04-4-03NSWITCH ROTARY 3POS 250MA 115V |
0 |
|
Таблицы данных |
09 | Bulk | Active | 3 | Fixed | 4 | 4 | 4P3T | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Silver Alloy | Gold | Panel Mount | Solder Lug | Shaft and Panel Sealed | 44.81mm |
|
M10H E M32+270+503+G2SWITCH ROTARY 4POS 20A 600V |
2 |
|
Таблицы данных |
M10H | Box | Active | 4 | - | - | - | - | - | 20A (AC/DC) | 600 V | - | Knob | - | - | - | - | Panel Mount | Screw Terminal | - | - |
|

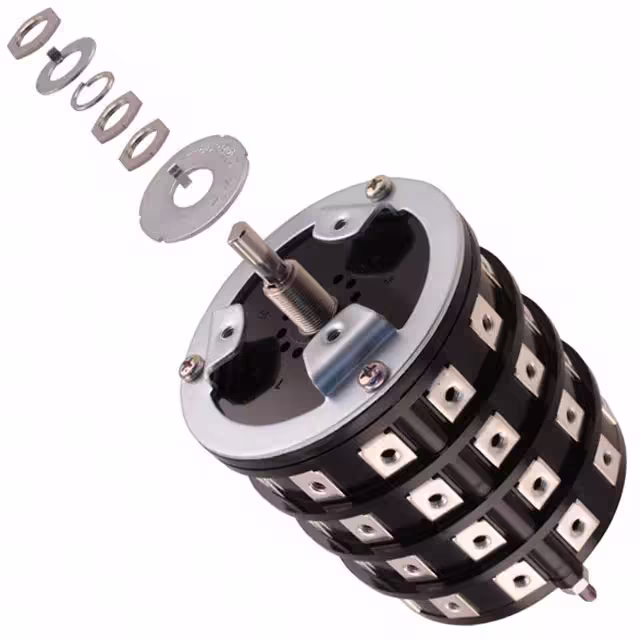

PS4NSWITCH ROTARY 2-11POS 30A 125V |
0 |
|
Таблицы данных |
PS | Box | Obsolete | 2 ~ 11 | Adjustable | 4 | 1 | SP11T | Non-Shorting (BBM) | 30A (AC) | 125 V | - | Flatted (6mm Dia) | 15.00mm | 30° | Silver Alloy | - | Panel Mount | Screw Terminal | - | 99.00mm |
|
|
PS4SWITCH ROTARY 2-11POS 30A 125V |
0 |
|
Таблицы данных |
PS | Bulk | Obsolete | 2 ~ 11 | Adjustable | 4 | 1 | SP11T | Non-Shorting (BBM) | 30A (AC) | 125 V | - | Knurled (6mm Dia) | 15.00mm | 30° | Silver Alloy | - | Panel Mount | Screw Terminal | - | 99.00mm |
|
|
44M60-10-1-06NSWITCH ROTARY 6POS 5A 115V |
0 |
|
Таблицы данных |
44 | Bulk | Active | 6 | Continuous | 10 | 1 | SP6T | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 60° | Silver Alloy | - | Panel Mount | Solder Lug | - | 111.48mm |
