БОМ
Триак, выходные оптоизоляторы SCR
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип выхода | Цепь пересечения нуля | Количество каналов | Напряжение - Изоляция | Напряжение - Выкл. | Статическое dV/dt (мин.) | Ток - светодиодный триггер (Ift) (макс.) | Ток - Вкл. состояние (It (RMS)) (макс.) | Ток - Удержание (Ih) | Время включения | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Рабочая температура | Тип крепления | Устройство поставщика Упаковка | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC4SD21YXPDFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Таблицы данных |
- | 6-SMD | Tape & Reel (TR) | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
FODM3062OPTOISOLATOR 3.75KV TRIAC 4MFP |
0 |
|
Таблицы данных |
- | 4-SMD, Gull Wing | Box | Obsolete | Triac | Yes | 1 | 3750Vrms | 600 V | 600V/µs | 10mA | 70 mA | 300µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUL, UL |
|
|
FODM3082OPTOISOLATOR 3.75KV TRIAC 4MFP |
0 |
|
Таблицы данных |
- | 4-SMD, Gull Wing | Box | Obsolete | Triac | Yes | 1 | 3750Vrms | 800 V | 600V/µs | 10mA | 70 mA | 300µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUL, UL |
.jpg)
|
VO4157HOPTOISOLATOR 5.3KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | Yes | 1 | 5300Vrms | 700 V | 5kV/µs | 2mA | 300 mA | 500µA | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, FIMKO, UR |
|
|
VO4157MOPTOISOLATOR 5.3KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | Yes | 1 | 5300Vrms | 700 V | 5kV/µs | 3mA | 300 mA | 500µA | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, FIMKO, UR |
|
|
VO4256HOPTOISOLATOR 5.3KV TRIAC 6DIP |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | No | 1 | 5300Vrms | 600 V | 5kV/µs | 2mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | cUR, FIMKO, UR |
|
|
VO4257DOPTOISOLATOR 5.3KV TRIAC 6DIP |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | No | 1 | 5300Vrms | 700 V | 5kV/µs | 1.6mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | BSI, cUR, FIMKO, UR |
|
|
VO4257HOPTOISOLATOR 5.3KV TRIAC 6DIP |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | Triac | No | 1 | 5300Vrms | 700 V | 5kV/µs | 2mA | 300 mA | - | - | 1.2V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | BSI, cUR, FIMKO, UR |
|
TLP361J(F)OPTOISOLATOR 5KV TRIAC 4DIP |
0 |
|
Таблицы данных |
- | 4-DIP (0.300", 7.62mm) | Tube | Last Time Buy | Triac | Yes | 1 | 5000Vrms | 600 V | 200V/µs | 10mA | 100 mA | 600µA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 4-DIP | UR |
|
FODM3062R2OPTOISOLATOR 3.75KV TRIAC 4SMD |
0 |
|
Таблицы данных |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 3750Vrms | 600 V | 600V/µs | 10mA | 70 mA | 300µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUL, UL |
|
|
FODM3082R2OPTOISOLATOR 3.75KV TRIAC 4SMD |
0 |
|
Таблицы данных |
- | 4-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 3750Vrms | 800 V | 600V/µs | 10mA | 70 mA | 300µA (Typ) | - | 1.5V (Max) | 60 mA | -40°C ~ 100°C | Surface Mount | 4-SMD | cUL, UL |
.jpg)
|

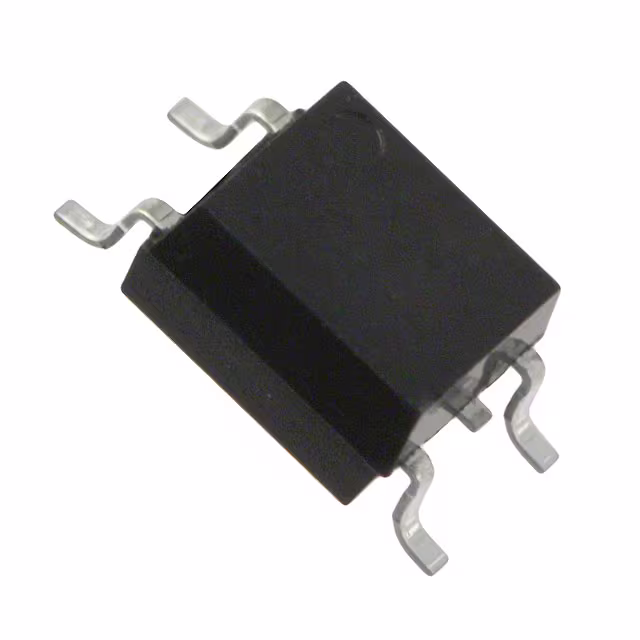

TLP166J(V4,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP |
0 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Active | Triac | Yes | 1 | 2500Vrms | 600 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR, VDE |
|
TLP160G(U,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP |
0 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Obsolete | Triac | No | 1 | 2500Vrms | 400 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|
TLP161G(TPR,U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP |
0 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 2500Vrms | 400 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
.JPG)
|
EL3010S1(TA)OPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 250 V | 100V/µs (Typ) | 15mA | 100 mA | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
EL3010S1(TB)OPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 250 V | 100V/µs (Typ) | 15mA | 100 mA | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
EL3012S(TB)OPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 250 V | 100V/µs (Typ) | 5mA | 100 mA | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
EL3021MOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | Triac | No | 1 | 5000Vrms | 400 V | 100V/µs (Typ) | 15mA | 100 mA | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Through Hole | 6-DIP | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL |
|
|
EL3021S1(TA)-VOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 400 V | 100V/µs (Typ) | 15mA | 100 mA | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
|
|
EL3021S(TA)-VOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Таблицы данных |
- | 6-SMD, Gull Wing | Tape & Reel (TR) | Active | Triac | No | 1 | 5000Vrms | 400 V | 100V/µs (Typ) | 15mA | 100 mA | 250µA (Typ) | - | 1.18V | 60 mA | -55°C ~ 100°C | Surface Mount | 6-SMD | CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL, VDE |
