0Триак, выходные оптоизоляторы SCR
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип выхода | Цепь пересечения нуля | Количество каналов | Напряжение - Изоляция | Напряжение - Выкл. | Статическое dV/dt (мин.) | Ток - светодиодный триггер (Ift) (макс.) | Ток - Вкл. состояние (It (RMS)) (макс.) | Ток - Удержание (Ih) | Время включения | Напряжение - прямое (Vf) (тип.) | Ток - постоянный ток вперед (If) (макс.) | Рабочая температура | Тип крепления | Устройство поставщика Упаковка | Сертифицирующее агентство |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S2S3LY0FOPTOISOLATOR 3.75KV TRIAC 4SMD |
0 |
|
Таблицы данных |
- | 4-SMD | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 5mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR, VDE |
|
|
S2S3Y00FOPTOISOLATOR 3.75KV TRIAC 4SMD |
0 |
|
Таблицы данных |
- | 4-SMD | Tube | Obsolete | Triac | No | 1 | 3750Vrms | 600 V | 100V/µs | 10mA | 50 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR, VDE |
|
|
S2S4LY0FOPTOISOLATOR 3.75KV TRIAC 4SMD |
0 |
|
Таблицы данных |
- | 4-SMD | Tube | Obsolete | Triac | Yes | 1 | 3750Vrms | 600 V | 100V/µs | 5mA | 50 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 4-SMD | CSA, UR, VDE |
|
PC3SD21YXZCFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Таблицы данных |
- | 6-SMD | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR, VDE |
|
PC3SD21YTZDFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR, VDE |
|
|
PC3SD21NXZCFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Таблицы данных |
- | 6-SMD | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR |
|
|
PC3SD21NTZCFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC3SD21NTZBFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC3SD12NXZAFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Таблицы данных |
- | 6-SMD | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR |
|
|
PC4SD21NTZDFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 3mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC4SD21NTZCFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 800 V | 500V/µs | 5mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC4SD11NTZBFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | No | 1 | 5000Vrms | 800 V | 50V/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC3SD11NTZCFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|
|
PC3SD11NTZBFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | CSA, UR |
|

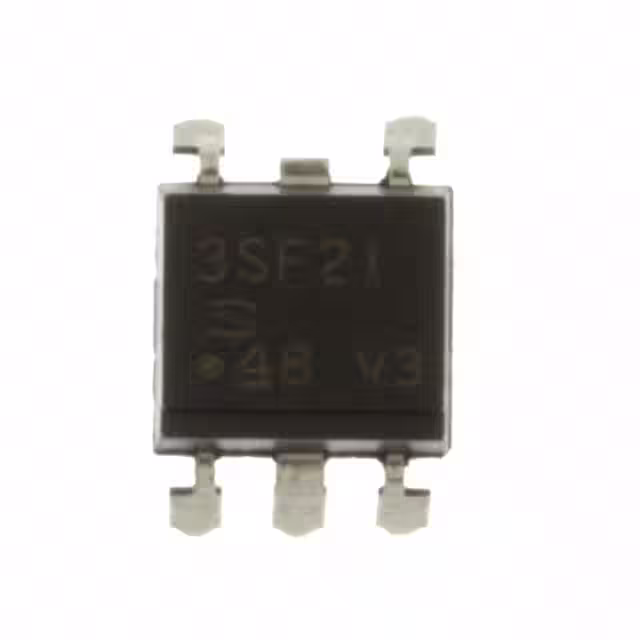

PC3SF21YVZBFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|

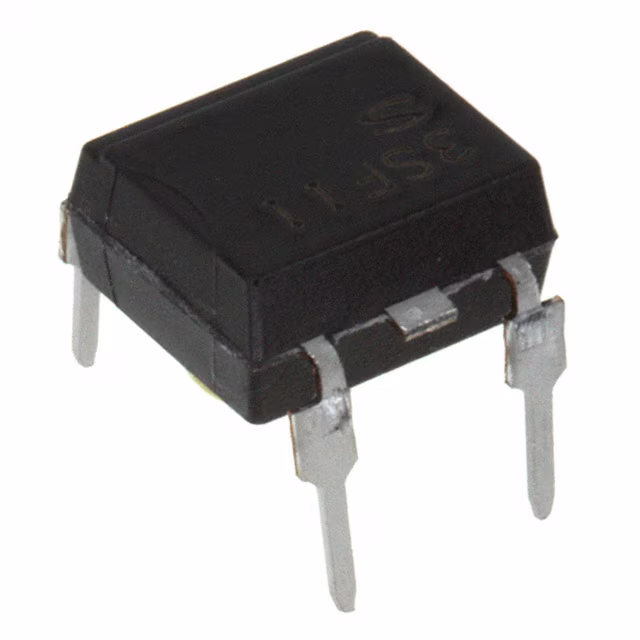

PC3SF11YTZBFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|

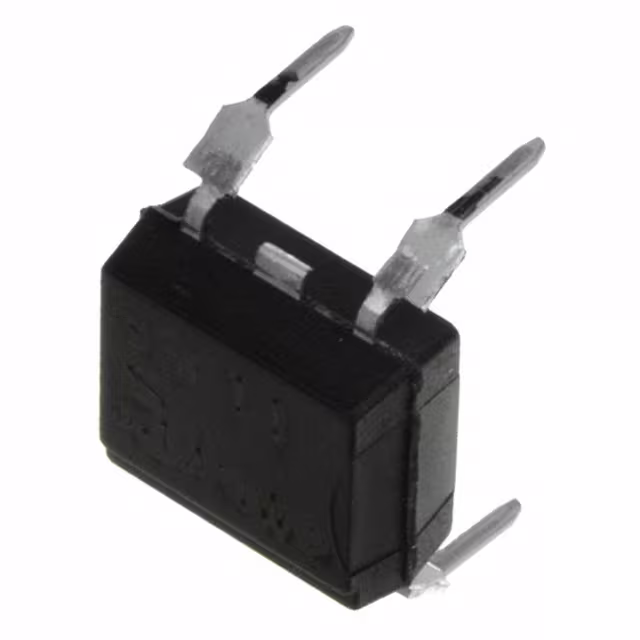

PC3SF11YVZAFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|

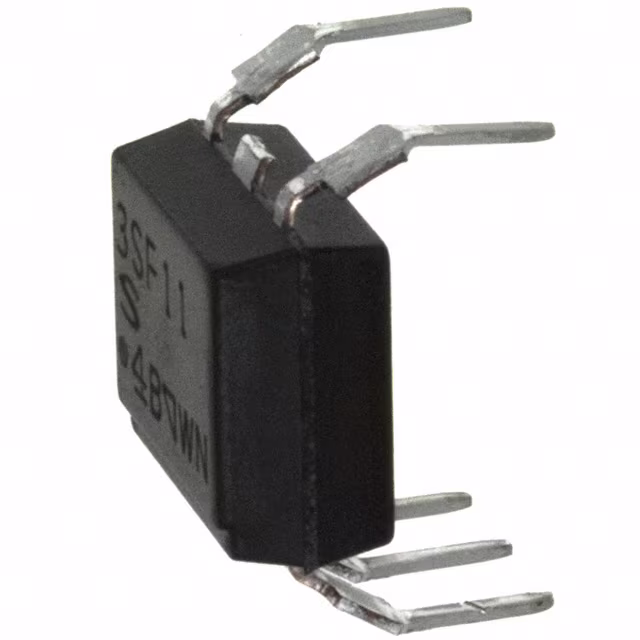

PC3SF11YVZBFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Discontinued at Digi-Key | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 7mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
PC3SF21YTZAFOPTOISOLATOR 5KV TRIAC 6DIP |
0 |
|
Таблицы данных |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 1kV/µs | 10mA | 100 mA | 3.5mA | 50µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Through Hole | 6-DIP | BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE |
|
|
PC3SD11NXPCFOPTOISOLATOR 5KV TRIAC 6SMD |
0 |
|
Таблицы данных |
- | 6-SMD | Tape & Reel (TR) | Obsolete | Triac | No | 1 | 5000Vrms | 600 V | 1kV/µs | 5mA | 100 mA | 3.5mA | 100µs (Max) | 1.2V | 50 mA | -30°C ~ 100°C | Surface Mount | 6-SMD | CSA, UR |
