| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Высота | Длина - от центра до центра | Размер резьбы/винта/отверстия | Материал | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RHM1-30.R400.11RH-M1, BRIDGE HANDLES, BRIDGE HA |
4 |
|
Таблицы данных |
RH-M1 | Bag | Active | Instrumentation | 3.937" (100.00mm) | 15.748" (400.00mm) | M10 | Aluminum | Screw Holes, Back |
|
RHA4-35.300.S04RH-A4, TUBULAR HANDLES, TUBULAR |
15 |
|
Таблицы данных |
RH-A4 | Bag | Active | Instrumentation | 2.047" (52.00mm) | 11.811" (300.00mm) | M8 | Aluminum | Screw Holes, Back |
|
RHW3-33.310.11RH-W3, LEDGE HANDLES, LEDGE HAND |
6 |
|
Таблицы данных |
RH-W3 | Bag | Active | Instrumentation | 2.421" (61.50mm) | 12.205" (310.00mm) | M8 | Aluminum | Screw Holes, Back |
|
|
RHM1-30.R400.14RH-M1, BRIDGE HANDLES, BRIDGE HA |
5 |
|
Таблицы данных |
RH-M1 | Bag | Active | Instrumentation | 3.937" (100.00mm) | 15.748" (400.00mm) | M10 | Aluminum | Screw Holes, Back |
|
260542-C1EBR-SWM-B-F5, HANDLE WITH MONOST |
8 |
|
Таблицы данных |
EBR-SWM | Bag | Active | Rotating | 1.850" (47.00mm) | 5.197" (132.00mm) | - | Polyamide | Screw Holes, Back |
|
RHBG-30.350.11RH-BG, BENT HANDLES, BENT HANDLE |
8 |
|
Таблицы данных |
RH-BG | Bag | Active | Instrumentation | 2.362" (60.00mm) | 13.780" (350.00mm) | M8 | Aluminum | Screw Holes, Back |
|
RHTL.A3-25.200.37RH-TL.A3, TUBULAR HANDLES, TUBUL |
8 |
|
Таблицы данных |
RH-TL.A3 | Bag | Active | Instrumentation | 1.890" (48.00mm) | 7.874" (200.00mm) | M8 | Aluminum, Stainless Steel | Screw Holes, Back |
|
RHEK-10.100.31RH-EK, FOLDING HANDLES, FOLDING |
11 |
|
Таблицы данных |
RH-EK | Bag | Active | Folds Flat | 1.732" (44.00mm) | 3.937" (100.00mm) | M10x1 | Stainless Steel | Screw, Bolt |
|
|
RHA4-35.400.S04RH-A4, TUBULAR HANDLES, TUBULAR |
23 |
|
Таблицы данных |
RH-A4 | Bag | Active | Instrumentation | 2.047" (52.00mm) | 15.748" (400.00mm) | M8 | Aluminum | Screw Holes, Back |
|
RHAR-36.500.N01RH-AR, TUBULAR HANDLES, TUBULAR |
9 |
|
Таблицы данных |
RH-AR | Bag | Active | Instrumentation | 2.165" (55.00mm) | 19.685" (500.00mm) | M8 | Aluminum | Screw Holes, Back |
|

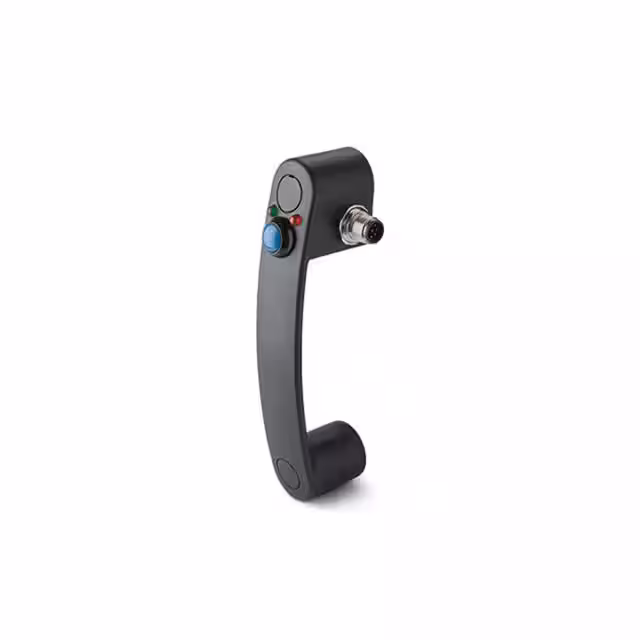

260561-C1EBR-SWM-R-C, HANDLE WITH MONOSTA |
9 |
|
Таблицы данных |
EBR-SWM | Bag | Active | Rotating | 2.480" (63.00mm) | 5.197" (132.00mm) | M12x1 | Polyamide | Screw Holes, Back |
|

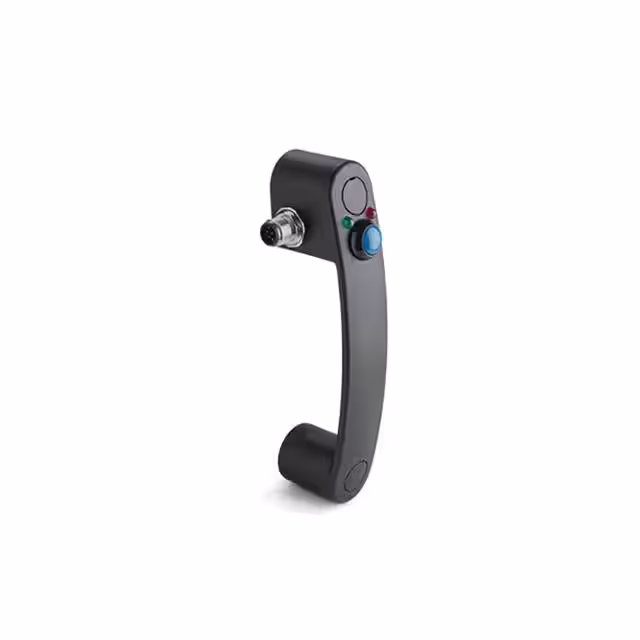

260551-C1EBR-SWM-L-C, HANDLE WITH MONOSTA |
9 |
|
Таблицы данных |
EBR-SWM | Bag | Active | Rotating | 2.480" (63.00mm) | 5.197" (132.00mm) | M12x1 | Polyamide | Screw Holes, Back |
|
|
RHBG-30.350.14RH-BG, BENT HANDLES, BENT HANDLE |
3 |
|
Таблицы данных |
RH-BG | Bag | Active | Instrumentation | 2.362" (60.00mm) | 13.780" (350.00mm) | M8 | Aluminum | Screw Holes, Back |
|
|
RHTL.A3-25.300.37RH-TL.A3, TUBULAR HANDLES, TUBUL |
8 |
|
Таблицы данных |
RH-TL.A3 | Bag | Active | Instrumentation | 1.890" (48.00mm) | 11.811" (300.00mm) | M8 | Aluminum, Stainless Steel | Screw Holes, Back |
|
RHU4-35.700.04RH-U4, TUBULAR EDGE-HANDLES, TUB |
4 |
|
Таблицы данных |
RH-U4 | Bag | Active | Instrumentation | 2.126" (54.00mm) | 27.559" (700.00mm) | M5x10 | Aluminum | Screw Holes, Back |
|
RHWR-30.300.01RH-WR, OFFSET TUBULAR HANDLES, A |
8 |
|
Таблицы данных |
RH-WR | Bag | Active | Instrumentation | 2.165" (55.00mm) | 11.811" (300.00mm) | M8 | Aluminum | Screw Holes, Back |
|
|
RHBG-35.400.14RH-BG, BENT HANDLES, BENT HANDLE |
6 |
|
Таблицы данных |
RH-BG | Bag | Active | Instrumentation | 2.441" (62.00mm) | 15.748" (400.00mm) | M8 | Aluminum | Screw Holes, Back |
|
|
RHBG-30.400.14RH-BG, BENT HANDLES, BENT HANDLE |
3 |
|
Таблицы данных |
RH-BG | Bag | Active | Instrumentation | 2.362" (60.00mm) | 15.748" (400.00mm) | M8 | Aluminum | Screw Holes, Back |
|
RHM4-30.350.11RH-M4, DOUBLE-CURVED TUBULAR HAN |
5 |
|
Таблицы данных |
RH-M4 | Bag | Active | Instrumentation | 6.890" (175.00mm) | 13.780" (350.00mm) | M10 | Aluminum | Screw Holes, Back |
|
|
RHWR-30.500.01RH-WR, OFFSET TUBULAR HANDLES, A |
6 |
|
Таблицы данных |
RH-WR | Bag | Active | Instrumentation | 2.165" (55.00mm) | 19.685" (500.00mm) | M8 | Aluminum | Screw Holes, Back |
