Ручки
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Упаковка | Состояние продукта | Тип | Высота | Длина - от центра до центра | Размер резьбы/винта/отверстия | Материал | Тип крепления |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RHA2-32.S300.N01RH-A2, TUBULAR HANDLES, TUBULAR |
8 |
|
Таблицы данных |
RH-A2 | Bag | Active | Instrumentation | 1.654" (42.00mm) | 11.811" (300.00mm) | M8 | Aluminum | Screw Holes, Back |
|
|
RHA2-32.A300.N01RH-A2, TUBULAR HANDLES, TUBULAR |
8 |
|
Таблицы данных |
RH-A2 | Bag | Active | Instrumentation | 2.362" (60.00mm) | 11.811" (300.00mm) | M8 | Aluminum | Screw Holes, Back |
|
RHVA-20.R200.33RH-VA, BRIDGE HANDLES, BRIDGE HA |
4 |
|
Таблицы данных |
RH-VA | Bag | Active | Instrumentation | 2.756" (70.00mm) | 7.874" (200.00mm) | M8x16 | Stainless Steel | Screw, Bolt |
|
27811IR.302, FOLD-AWAY HANDLES, FOLD- |
6 |
|
Таблицы данных |
IR.302 | Bag | Active | Rotating | 3.543" (90.00mm) | - | M6 | Phenolic | Screw Holes, Back |
|
RHHS-30.TSA.54RH-HS-30, MODULAR TUBULAR HANDLE |
4 |
|
Таблицы данных |
RH-HS-30 | Bag | Active | Instrumentation | 1.181" (30.00mm) | - | M12x80 | Aluminum | Screw Holes, Back |
|
RHM1-25.R300.14RH-M1, BRIDGE HANDLES, BRIDGE HA |
8 |
|
Таблицы данных |
RH-M1 | Bag | Active | Instrumentation | 3.346" (85.00mm) | 11.811" (300.00mm) | M8 | Aluminum | Screw Holes, Back |
|
RHM1-30.R300.9002RH-M1-CLEAN, BRIDGE HANDLES, BRI |
6 |
|
Таблицы данных |
RH-M1-CLEAN | Bag | Active | Instrumentation | 3.937" (100.00mm) | 11.811" (300.00mm) | M10 | Aluminum | Screw Holes, Back |
|
RHKG-18.500.14RH-KG, DOUBLE-CURVED TUBULAR HAN |
5 |
|
Таблицы данных |
RH-KG | Bag | Active | Instrumentation | 3.543" (90.00mm) | 19.685" (500.00mm) | M8 | Aluminum | Screw Holes, Back |
|
RHVM-30.200.S11RH-VM, BRIDGE HANDLES, BRIDGE HA |
5 |
|
Таблицы данных |
RH-VM | Bag | Active | Instrumentation | 2.343" (59.50mm) | 7.874" (200.00mm) | M6 | Polyamide | Screw Holes, Back |
|
RHW3-33.210.9002RH-W3-CLEAN, LEDGE HANDLES, LEDG |
11 |
|
Таблицы данных |
RH-W3-CLEAN | Bag | Active | Instrumentation | 2.421" (61.50mm) | 8.268" (210.00mm) | M8 | Aluminum | Screw Holes, Back |
|
|
RHVA-20.R250.33RH-VA, BRIDGE HANDLES, BRIDGE HA |
4 |
|
Таблицы данных |
RH-VA | Bag | Active | Instrumentation | 2.756" (70.00mm) | 9.843" (250.00mm) | M8x16 | Stainless Steel | Screw, Bolt |
|
|
RHM1-25.R400.11RH-M1, BRIDGE HANDLES, BRIDGE HA |
5 |
|
Таблицы данных |
RH-M1 | Bag | Active | Instrumentation | 3.346" (85.00mm) | 15.748" (400.00mm) | M8 | Aluminum | Screw Holes, Back |
|

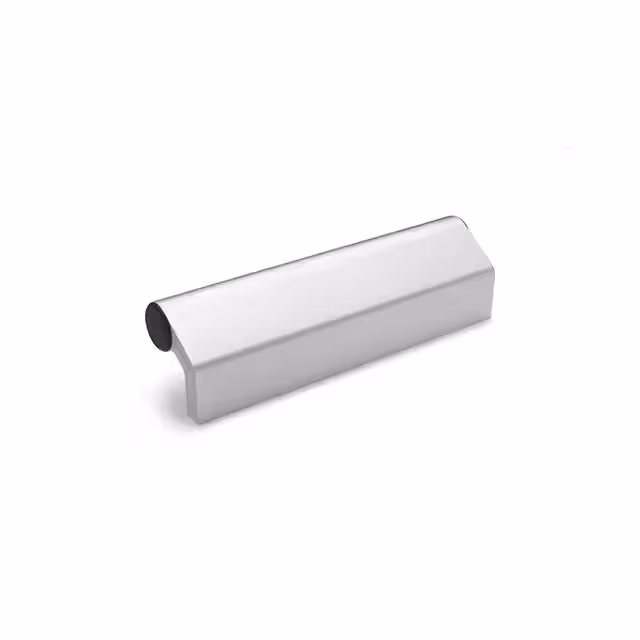

RHW3-33.210.11RH-W3, LEDGE HANDLES, LEDGE HAND |
8 |
|
Таблицы данных |
RH-W3 | Bag | Active | Instrumentation | 2.421" (61.50mm) | 8.268" (210.00mm) | M8 | Aluminum | Screw Holes, Back |
|
RHEL-35.100.36RH-EL, LEDGE HANDLES, LEDGE HAND |
4 |
|
Таблицы данных |
RH-EL | Bag | Active | Instrumentation | 1.181" (30.00mm) | 3.937" (100.00mm) | M6 | Stainless Steel | Screw Holes, Back |
|
RHA3-25.200.S04RH-A3, TUBULAR HANDLES, TUBULAR |
4 |
|
Таблицы данных |
RH-A3 | Bag | Active | Instrumentation | 1.890" (48.00mm) | 7.874" (200.00mm) | M8 | Aluminum | Screw Holes, Back |
|
|
RHVM-30.200.S14RH-VM, BRIDGE HANDLES, BRIDGE HA |
5 |
|
Таблицы данных |
RH-VM | Bag | Active | Instrumentation | 2.343" (59.50mm) | 7.874" (200.00mm) | M6 | Polyamide | Screw Holes, Back |
|
|
RHVM-30.250.S11RH-VM, BRIDGE HANDLES, BRIDGE HA |
5 |
|
Таблицы данных |
RH-VM | Bag | Active | Instrumentation | 2.343" (59.50mm) | 9.843" (250.00mm) | M6 | Polyamide | Screw Holes, Back |
|
|
RHM1-25.R400.14RH-M1, BRIDGE HANDLES, BRIDGE HA |
6 |
|
Таблицы данных |
RH-M1 | Bag | Active | Instrumentation | 3.346" (85.00mm) | 15.748" (400.00mm) | M8 | Aluminum | Screw Holes, Back |
|
|
RHM1-30.R400.9002RH-M1-CLEAN, BRIDGE HANDLES, BRI |
3 |
|
Таблицы данных |
RH-M1-CLEAN | Bag | Active | Instrumentation | 3.937" (100.00mm) | 15.748" (400.00mm) | M10 | Aluminum | Screw Holes, Back |
|
|
RHA2-32.G500.N01RH-A2, TUBULAR HANDLES, TUBULAR |
10 |
|
Таблицы данных |
RH-A2 | Bag | Active | Instrumentation | 2.165" (55.00mm) | 19.685" (500.00mm) | M8 | Aluminum | Screw Holes, Back |
