Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX03-12357-2FIXED IND 1.8UH Eaton - Electronics Division |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | 1.8 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CTX47-5-RFIXED IND 47UH SMD Eaton - Electronics Division |
0 |
|
- |
CTX | - | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 47 µH | ±20% | - | - | Unshielded | - | - | - | - | -40°C ~ 75°C | 100 kHz | - | Surface Mount | - | - | - |
|
|
CLB1108-3-50TR-RFIXED IND 200NH 0.00028OHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
CLB | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 200 nH | ±20% | - | 25A | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 3 Phase | Surface Mount | - | 1.063" L x 0.433" W (27.00mm x 11.00mm) | 0.315" (8.00mm) |
|
CL1108-5-50TR-RFIXED IND 50NH 80A 0.00028OHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 5 Phase | Surface Mount | - | 1.772" L x 0.433" W (45.00mm x 11.00mm) | 0.315" (8.00mm) |
|
|
CLB1108-5-50TR-RFIXED IND 200NH 0.00028OHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
CLB | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 200 nH | ±20% | - | 25A | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 5 Phase | Surface Mount | - | 1.772" L x 0.433" W (45.00mm x 11.00mm) | 0.315" (8.00mm) |
|
|
CTX20-7-52LP-RFIXED IND 20UH 11.4A 11 MOHM TH Eaton - Electronics Division |
0 |
|
Таблицы данных |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 11.4 A | 14.5A | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.276" Dia (32.40mm) | 0.780" (19.80mm) |
|
|
CLH1110R1-6-R050-RFIXED IND 300NH 0.00023OHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
CLH | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 300 nH | ±20% | - | 25A | - | 0.23mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | 6 Phase | Surface Mount | - | 1.772" L x 0.433" W (45.00mm x 11.00mm) | 0.394" (10.00mm) |
|

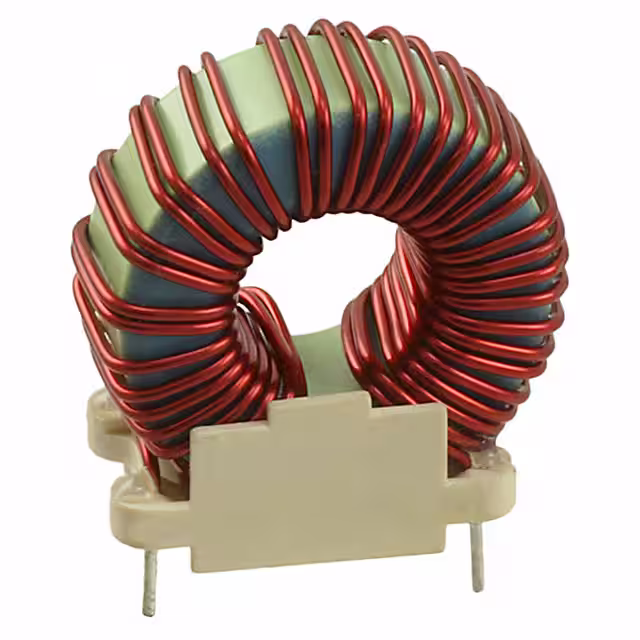

CTX08-14729FIXED IND 35UH 8.3A SMD Eaton - Electronics Division |
0 |
|
- |
CTX | - | Bulk | Obsolete | - | - | 35 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CL1108-3-50TR-RFIXED IND 50NH 80A 0.00028OHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 3 Phase | Surface Mount | - | 1.063" L x 0.433" W (27.00mm x 11.00mm) | 0.315" (8.00mm) |
|
|
HCM2213V2-3R3-RIND MP 3.3UH 41A 2 PADS SMT Eaton - Electronics Division |
0 |
|
- |
HCMV2 | Nonstandard | Tape & Reel (TR) | Active | - | Alloy Powder | 3.3 µH | ±20% | 34 A | 41A | Shielded | 1.77mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
