Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

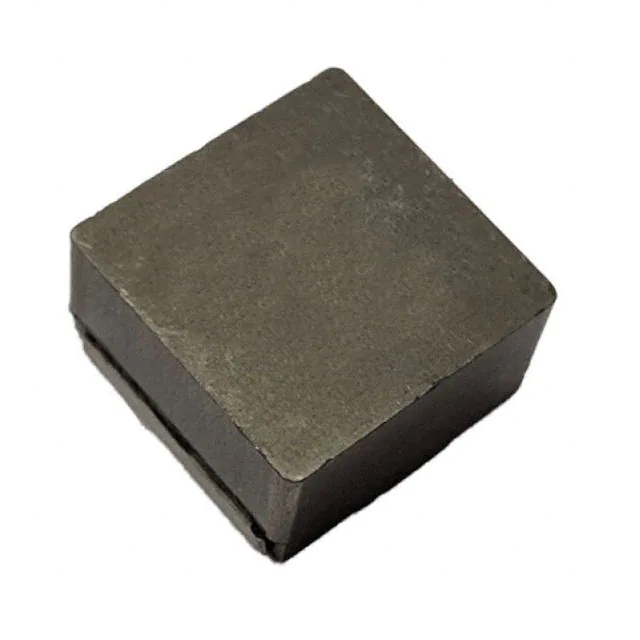

HCM1A2213V2-750-RFIXED IND 75UH 7.5A 32.5MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 75 µH | ±20% | 7.5 A | 10A | Shielded | 32.5mOhm Max | - | 2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
CLA1108-4-50TR-RFIXED IND 50NH 80A 0.00028OHM SM Eaton - Electronics Division |
0 |
|
Таблицы данных |
CLA | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | - | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | 4 Phase | Surface Mount | - | 1.772" L x 0.433" W (45.00mm x 11.00mm) | 0.315" (8.00mm) |
|
|
CLH1110R1-5-R050-RFIXED IND 300NH 0.00023OHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
CLH | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 300 nH | ±20% | - | 25A | - | 0.23mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | 5 Phase | Surface Mount | - | 1.476" L x 0.433" W (37.50mm x 11.00mm) | 0.394" (10.00mm) |
|
HCM1707-150-RFIXED IND 15UH 12A 15.5 MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 15 µH | ±20% | 12 A | 13A | Shielded | 15.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCM1707-330-RFIXED IND 33UH 9A 37 MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±20% | 9 A | 10A | Shielded | 37mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCM1707-470-RFIXED IND 47UH 6.8A 47 MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 47 µH | ±20% | 6.8 A | 7.5A | Shielded | 47mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCM1707-4R7-RFIXED IND 4.7UH 27A 4.72MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 27 A | 24A | Shielded | 4.72mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCM1707-6R8-RFIXED IND 6.8UH 20A 7.55MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
HCM1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 20 A | 22A | Shielded | 7.55mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
CPL2-5-50TR-RFIXED IND 50NH 80A 0.28 MOHM SMD Eaton - Electronics Division |
0 |
|
Таблицы данных |
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 1.772" L x 0.335" W (45.00mm x 8.50mm) | 0.189" (4.80mm) |
|
|
CTX16-17298FIXED IND 232UH Eaton - Electronics Division |
0 |
|
- |
- | - | Bulk | Obsolete | - | - | 232 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
