Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

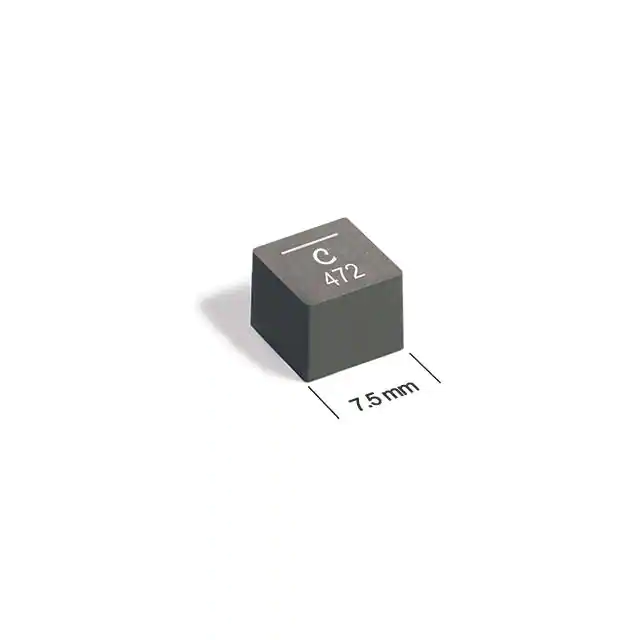

XAL7070-562MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
6,294 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 5.6 µH | ±20% | 11.4 A | 13A | Shielded | 15.03mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-222MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
5,247 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 2.2 µH | ±20% | 17.8 A | 19.6A | Shielded | 6.33mOhm Max | - | 35MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-551MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
4,966 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 550 nH | ±20% | 29 A | 43A | Shielded | 1.56mOhm Max | - | 89MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-682MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
4,491 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 6.8 µH | ±20% | 9.2 A | 12.8A | Shielded | 19.62mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-122MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
2,330 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.2 µH | ±20% | 21.6 A | 31.2A | Shielded | 3.41mOhm Max | - | 43MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-301MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
2,243 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 300 nH | ±20% | 33.4 A | 55.6A | Shielded | 1.17mOhm Max | - | 135MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-182MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
1,353 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 1.8 µH | ±20% | 21 A | 25A | Shielded | 4.46mOhm Max | - | 43MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-651MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
530 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 650 nH | ±20% | 26.5 A | 40A | Shielded | 1.93mOhm Max | - | 74MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-223MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
488 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 22 µH | ±20% | 5 A | 5.3A | Shielded | 48.6mOhm Max | - | 8.6MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-473MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
397 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 47 µH | ±20% | 4.1 A | 4.2A | Shielded | 97.07mOhm Max | - | 5.7MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
