Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SER2915L-223KLFIXED IND 22UH 30A 1.65MOHM SM Coilcraft |
390 |
|
Таблицы данных |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 30 A | 4.5A | Shielded | 1.65mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
SER2915L-472KLFIXED IND 4.7UH 39A 1.65MOHM SM Coilcraft |
318 |
|
Таблицы данных |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±10% | 39 A | 36A | Shielded | 1.65mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 85°C | - | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
SER2915L-332KLFIXED IND 3.3UH 30A 1.65MOHM SM Coilcraft |
310 |
|
Таблицы данных |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±10% | 30 A | 48A | Shielded | 1.65mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
SER2915L-222KLFIXED IND 2.2UH 30A 1.65MOHM SM Coilcraft |
194 |
|
Таблицы данных |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±10% | 30 A | 82A | Shielded | 1.65mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
SER2915L-153KLFIXED IND 15UH 30A 1.65MOHM SM Coilcraft |
170 |
|
Таблицы данных |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±10% | 30 A | 7.5A | Shielded | 1.65mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|

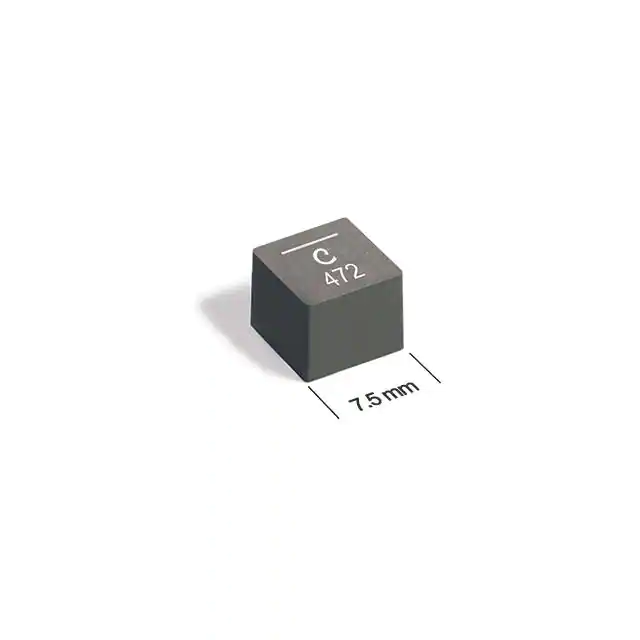

XAL7070-332MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
20,977 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 3.3 µH | ±20% | 15.1 A | 19.4A | Shielded | 9.42mOhm Max | - | 32MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-472MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
15,320 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 4.7 µH | ±20% | 13.6 A | 15.2A | Shielded | 14.26mOhm Max | - | 26MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-102MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
9,022 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 1 µH | ±20% | 25 A | 34.8A | Shielded | 2.81mOhm Max | - | 64MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-161MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
7,811 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 160 nH | ±20% | 36.1 A | 78A | Shielded | 0.83mOhm Max | - | 207MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-801MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
6,539 |
|
Таблицы данных |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 800 nH | ±20% | 25.8 A | 37.8A | Shielded | 2.29mOhm Max | - | 67MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
