Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMMP1805F-1R0MSMD Shielded Power Inductor Central Technologies |
30 |
|
- |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 5.2 A | - | Shielded | 47mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.047" (1.20mm) |
|
|
CTMMP1805F-R22MSMD Shielded Power Inductor Central Technologies |
30 |
|
- |
- | - | Bulk | Active | - | - | 0.22 µH | ±20% | 11.5 A | - | Shielded | 12mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.047" (1.20mm) |
|
|
CTMMP1805F-R47MSMD Shielded Power Inductor Central Technologies |
30 |
|
- |
- | - | Bulk | Active | - | - | 0.47 µH | ±20% | 7 A | - | Shielded | 25mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.047" (1.20mm) |
|
CTSLF1275TF-100MSMD SHIELDED POWER INDUCTOR Central Technologies |
30 |
|
- |
CTSLF1275TF | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 5.5 A | 5.4A | Shielded | 15.6mOhm | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
CTDS1608CF-33333UH SMD SHIELDED POWER INDUCTOR Central Technologies |
55 |
|
Таблицы данных |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 600 mA | - | Shielded | 190mOhm Max | 40 @ 100kHz | 20MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
CTDS1608CF-22322UH SMD SHIELDED POWER INDUCTOR Central Technologies |
33 |
|
Таблицы данных |
CTDS1608CF | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 700 mA | - | Shielded | 110mOhm Max | 40 @ 100kHz | 25MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
CTMSS1278F-680M68UH SMD SHLDED POWER INDUCTOR Central Technologies |
30 |
|
Таблицы данных |
CTMSS1278F | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 2.6 A | 3.2A | Shielded | 120mOhm Max | - | 6.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
CT181LYF-102JRAD LEADED FIXED SHLDED INDUCTOR Central Technologies |
35 |
|
Таблицы данных |
ct181lyf | - | Bulk | Active | - | - | 1 mH | ±5% | - | - | - | 3.4Ohm | - | 770kHz | - | -20°C ~ 125°C | - | - | Through Hole | - | - | - |
|

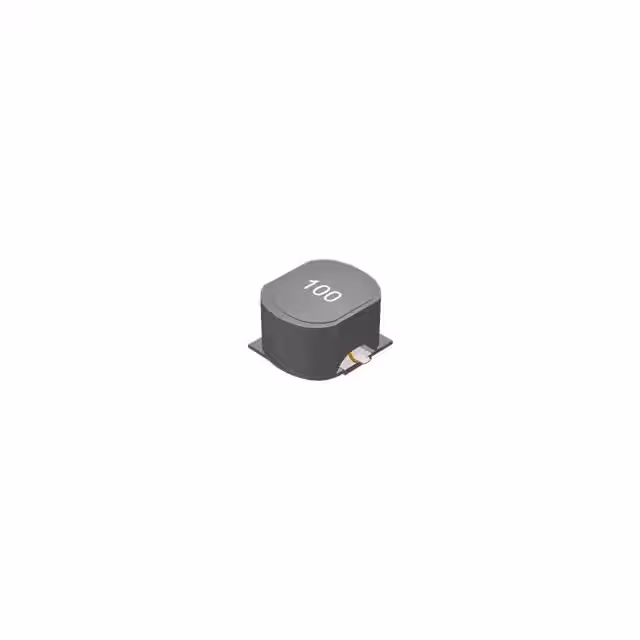

CTSDB1105F-220M22UH SMD SHLDED POWER INDUCTOR Central Technologies |
60 |
|
Таблицы данных |
CTSDB1105F | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | - | 2.1A | Shielded | 80mOhm Max | - | - | - | -25°C ~ 75°C | 1 kHz | - | Surface Mount | - | 0.591" L x 0.500" W (15.00mm x 12.70mm) | 0.236" (6.00mm) |
|

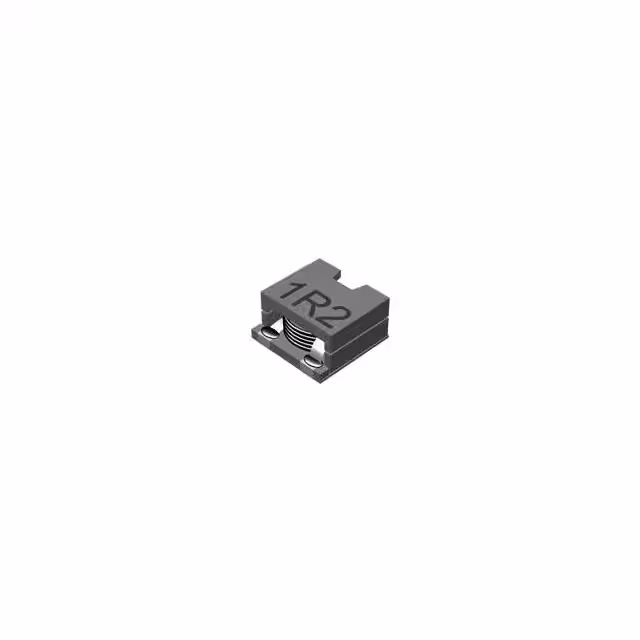

CTEP125SF-1R5M1.5UH SMD SHLDED POWER INDUCTOR Central Technologies |
55 |
|
Таблицы данных |
CTEP125SF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | - | 14A | Shielded | 2.5mOhm Max | - | - | - | -30°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.508" W (12.90mm x 12.90mm) | 0.228" (5.80mm) |
