Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMMP1808F-100MSMD Shielded Power Inductor Central Technologies |
30 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 10 µH | ±20% | 2 A | - | Shielded | 258mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
|
CTMMP1808F-8R2MSMD Shielded Power Inductor Central Technologies |
30 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 8.2 µH | ±20% | 2.5 A | - | Shielded | 216mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
|
CTMMP1808F-R10MSMD Shielded Power Inductor Central Technologies |
30 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 0.1 µH | ±20% | 25 A | - | Shielded | 4mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
|
CTMMP1808F-1R0MSMD Shielded Power Inductor Central Technologies |
30 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 7 A | - | Shielded | 27mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
|
CTMMP1808F-6R8MSMD Shielded Power Inductor Central Technologies |
30 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 6.8 µH | ±20% | 2.5 A | - | Shielded | 135mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
|
CTMMP1808F-R22MSMD Shielded Power Inductor Central Technologies |
29 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 0.22 µH | ±20% | 12.5 A | - | Shielded | 6.6mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.161" L x 0.181" W (4.10mm x 4.60mm) | 0.079" (2.00mm) |
|
CTMPH060303F-R24M0.24UH SMD MOLDED SHLD INDUCTOR Central Technologies |
75 |
|
Таблицы данных |
CTMPH060303F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Molded | - | 240 nH | ±20% | 2.6 mA | 3.2A | Shielded | 54Ohm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|

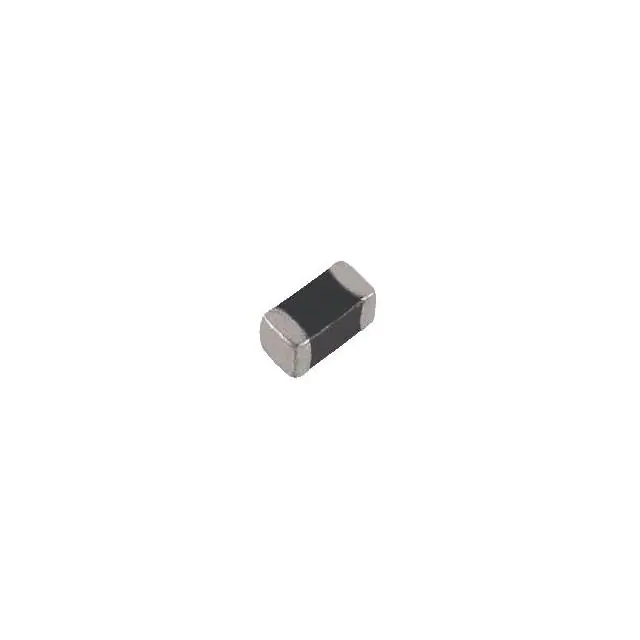

CTMPH060303F-R33M0.33UH SMD MOLDED SHLD INDUCTOR Central Technologies |
75 |
|
Таблицы данных |
CTMPH060303F | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Molded | - | 330 nH | ±20% | 2.2 mA | 3A | Shielded | 75Ohm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
CTMMP2707F-4R7MSMD Shielded Power Inductor Central Technologies |
36 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 5.5 A | - | Shielded | 78mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.071" (1.80mm) |
|
|
CTMMP2707F-2R2MSMD Shielded Power Inductor Central Technologies |
32 |
|
Таблицы данных |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 8.5 A | - | Shielded | 46mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.071" (1.80mm) |
