Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

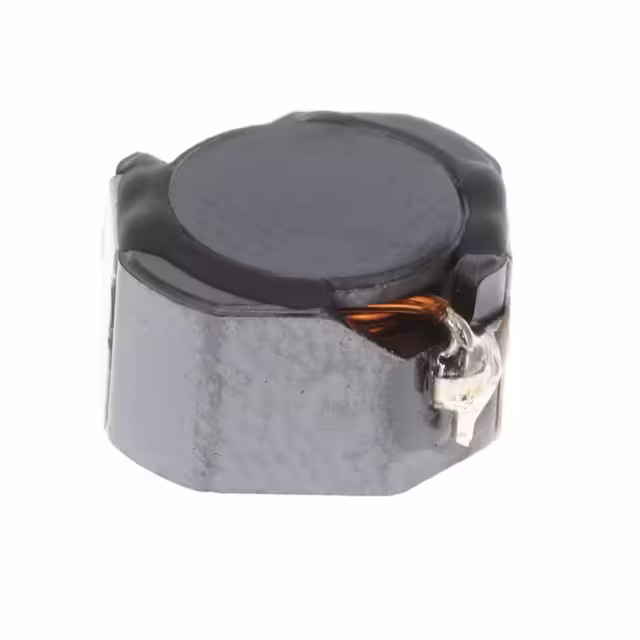

CDRH10D60BT150NP-100MCFIXED IND 10UH 6.9A 17 MOHM SMD Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRH10D60B/T150 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 6.9 A | 6.2A | Shielded | 17mOhm | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.394" W (10.30mm x 10.00mm) | 0.250" (6.35mm) |
|
CDEP105MENP-1R2PCFIXED IND 1.2UH 13.5A 4.76 MOHM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP105ME | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal Composite | 1.2 µH | ±25% | 13.5 A | 21.2A | Shielded | 4.76mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.217" (5.50mm) |
|
|
CDEP105MENP-1R8PCFIXED IND 1.8UH 10.5A 7.44 MOHM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP105ME | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal Composite | 1.8 µH | ±25% | 10.5 A | 19A | Shielded | 7.44mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.217" (5.50mm) |
|
|
CDEP105MENP-2R7PCFIXED IND 2.7UH 8.5A 10.2MOHM SM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP105ME | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal Composite | 2.7 µH | ±25% | 8.5 A | 14.4A | Shielded | 10.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.217" (5.50mm) |
|
|
CDEP105MENP-3R3PCFIXED IND 3.3UH 6.5A 15.1MOHM SM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP105ME | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal Composite | 3.3 µH | ±25% | 6.5 A | 12.8A | Shielded | 15.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.217" (5.50mm) |
|
|
CDEP105MENP-R20PCFIXED IND 200NH 25A 1.15MOHM SMD Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP105ME | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal Composite | 200 nH | ±25% | 25 A | 50A | Shielded | 1.15mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.217" (5.50mm) |
|
|
CDEP105MENP-R45PCFIXED IND 450NH 22A 1.75MOHM SMD Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP105ME | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal Composite | 450 nH | ±25% | 22 A | 35A | Shielded | 1.75mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.217" (5.50mm) |
|
|
CDEP105MENP-R80PCFIXED IND 800NH 16.5A 3.1MOHM SM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP105ME | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal Composite | 800 nH | ±25% | 16.5 A | 28A | Shielded | 3.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.217" (5.50mm) |
|

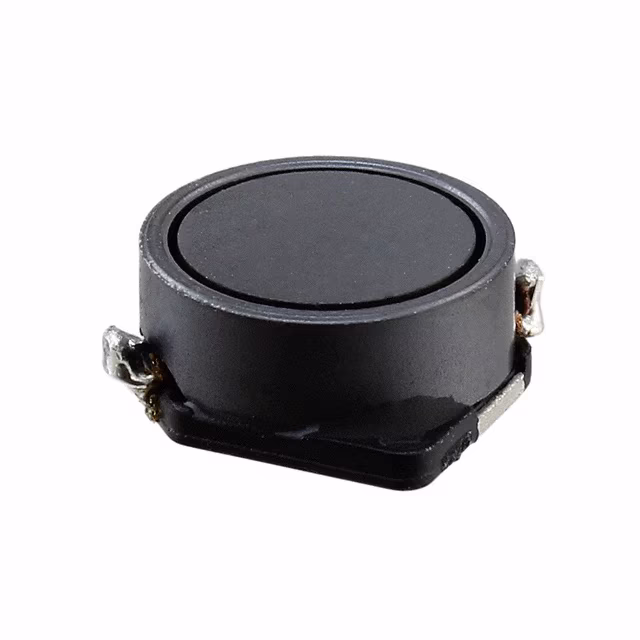

CDRR105NP-220MCFIXED IND 22UH 2.35A 77.5MOHM SM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRR105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 2.35 A | 1.66A | Shielded | 77.5mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
|
CDRR105NP-221MCFIXED IND 220UH 760MA 573MOHM SM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDRR105 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±20% | 760 mA | 510mA | Shielded | 573mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
