Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDEP1411NP-7R4MC-150INDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP1411 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 7.4 µH | ±20% | 13 A | 10.8A | Shielded | 4.44mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.472" (12.00mm) |
|
|
CDEP1411NP-4R7MC-95INDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP1411 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±20% | 13 A | 18.4A | Shielded | 4.44mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.472" (12.00mm) |
|
|
CDEP1411NP-120MC-95INDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP1411 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 12 µH | ±20% | 9 A | 11.8A | Shielded | 9.72mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.472" (12.00mm) |
|
|
CDEP1411NP-150MC-150INDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP1411 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±20% | 9.6 A | 8A | Shielded | 8.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.472" (12.00mm) |
|
|
CDEP1411NP-120MC-150INDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP1411 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 12 µH | ±20% | 10.3 A | 8.5A | Shielded | 7.56mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.472" (12.00mm) |
|
|
CDEP1411NP-100MC-95INDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDEP1411 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 9.6 A | 13.1A | Shielded | 8.4mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.571" L x 0.571" W (14.50mm x 14.50mm) | 0.472" (12.00mm) |
|

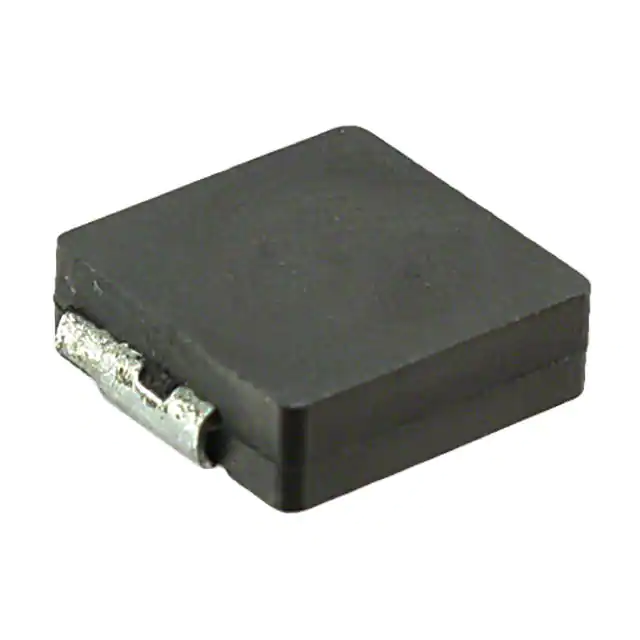

CDMC8D28NP-3R9MCFIXED IND 3.9UH 7.1A 24.1MOHM SM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDMC8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 3.9 µH | ±20% | 7.1 A | 6.4A | Shielded | 24.1mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.374" L x 0.335" W (9.50mm x 8.50mm) | 0.118" (3.00mm) |
|
|
CDMC8D28NP-R39MCFIXED IND 390NH 19.9A 2.8MOHM SM Sumida America Components Inc. |
0 |
|
Таблицы данных |
CDMC8D28 | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 390 nH | ±20% | 19.9 A | 19.8A | Shielded | 2.8mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.374" L x 0.335" W (9.50mm x 8.50mm) | 0.118" (3.00mm) |
|
|
DEP1016NP-5R0PBINDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
DEP1016 | Radial | Box | Active | Molded | Ferrite | 5 µH | ±25% | 14.1 A | 18.2A | Shielded | 5.1mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.571" L x 0.398" W (14.50mm x 10.10mm) | 0.630" (16.00mm) |
|
|
DEP1016NP-220PBINDUCTOR Sumida America Components Inc. |
0 |
|
Таблицы данных |
DEP1016 | Radial | Box | Active | Molded | Ferrite | 22 µH | ±25% | 8.5 A | 7.2A | Shielded | 11.4mOhm Max | - | - | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.571" L x 0.398" W (14.50mm x 10.10mm) | 0.630" (16.00mm) |
