Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

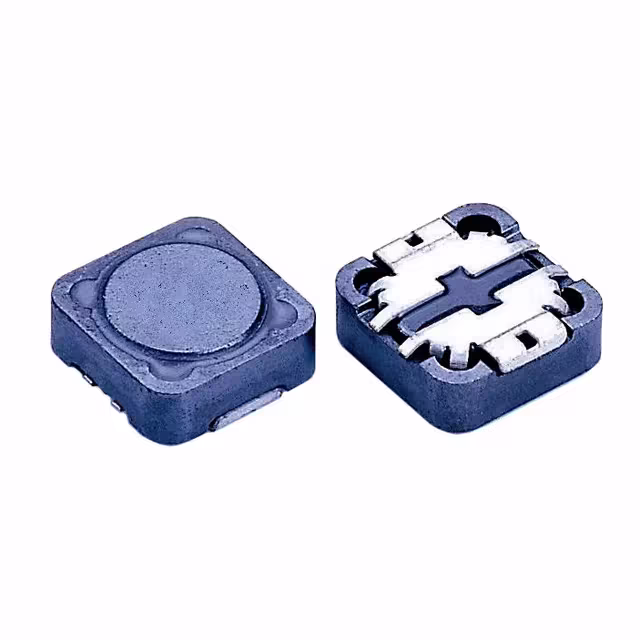

SCRH124-330FIXED IND 33UH 2.43A 97 MOHM SMD Signal Transformer |
3,003 |
|
Таблицы данных |
SCRH124 | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 2.43 A | 2.7A | Shielded | 97mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
SCRH104R-680FIXED IND 68UH 1.42A 265MOHM SMD Signal Transformer |
1,651 |
|
Таблицы данных |
SCRH104R | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±30% | 1.42 A | 1.5A | Shielded | 265mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.157" (4.00mm) |
|

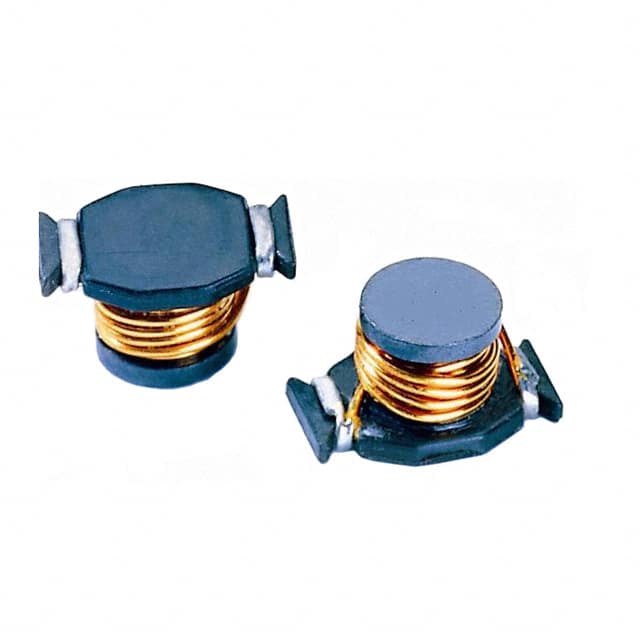

SC1813FH-R18FIXED IND 180NH 11.2A 4.5MOHM SM Signal Transformer |
525 |
|
Таблицы данных |
SC1813FH | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 180 nH | ±30% | 11.2 A | 14A | Unshielded | 4.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|

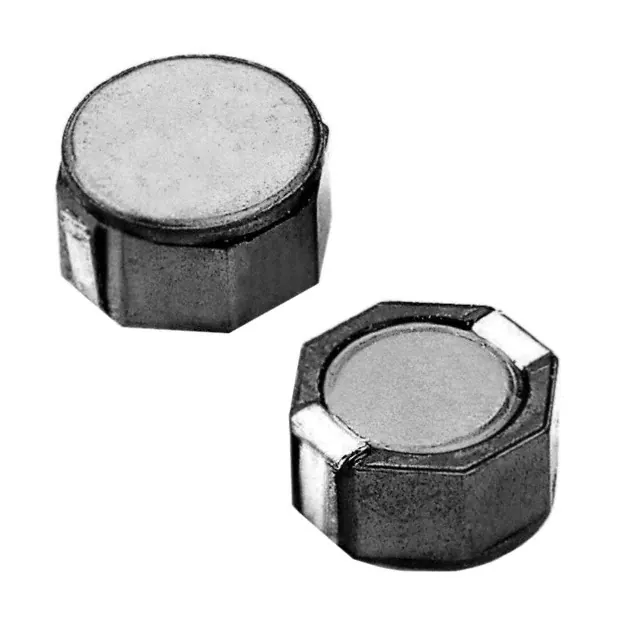

SCRH8D43-680FIXED IND 68UH 1.2A 240 MOHM SMD Signal Transformer |
3,447 |
|
Таблицы данных |
SCRH8D43 | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±30% | 1.2 A | 1.2A | Shielded | 240mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.327" W (8.30mm x 8.30mm) | 0.185" (4.70mm) |
|
SCIHP0530-3R3FIXED IND 3.3UH 5A SMD Signal Transformer |
3,425 |
|
Таблицы данных |
SCIHP0530 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 5 A | 7A | Shielded | - | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.205" L x 0.193" W (5.20mm x 4.90mm) | 0.118" (3.00mm) |
|
|
SCIHP0412-R047FIXED IND 47NH 13A SMD Signal Transformer |
1,058 |
|
Таблицы данных |
SCIHP0412 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 47 nH | ±20% | 13 A | 32A | Shielded | - | - | - | - | -40°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.189" L x 0.171" W (4.80mm x 4.35mm) | 0.047" (1.20mm) |
|
F1C1-201612-R47MFIXED IND 0.47UH 6.0A 17 MOHM Signal Transformer |
2,962 |
|
Таблицы данных |
F1C1-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 470 nH | ±20% | 6 A | 6A | Shielded | 17mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
F1C1-201612-R15MFIXED IND 0.15UH 9.0A 10.0 MOHM Signal Transformer |
2,845 |
|
Таблицы данных |
F1C1-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 150 nH | ±20% | 9 A | 10.5A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
F1C1-201612-1R5MFIXED IND 1.5UH 3.5A 50 MOHM Signal Transformer |
2,776 |
|
Таблицы данных |
F1C1-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 1.5 µH | ±20% | 3.5 A | 3.5A | Shielded | 50mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
F1C1-201612-R10MFIXED IND 0.10UH 10.0A 6.0 MOHM Signal Transformer |
2,890 |
|
Таблицы данных |
F1C1-2016 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 100 nH | ±20% | 10 A | 11.5A | Shielded | 6mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
