Фиксированные индукторы
| Фотографии | Производитель. Часть # | Доступность | Количество | Таблицы данных | Серия | Корпус/корпус | Упаковка | Состояние продукта | Тип | Материал - сердечник | Индуктивность | Допуск | Номинальный ток (Ампер) | Ток - Насыщение (Isat) | Экранирование | Сопротивление постоянному току (DCR) | Q @ Freq | Частота - саморезонансная | Номинальные значения | Рабочая температура | Частота индуктивности - Тест | Особенности | Тип крепления | Устройство поставщика Упаковка | Размер/измерение | Высота - в сидячем положении (макс.) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

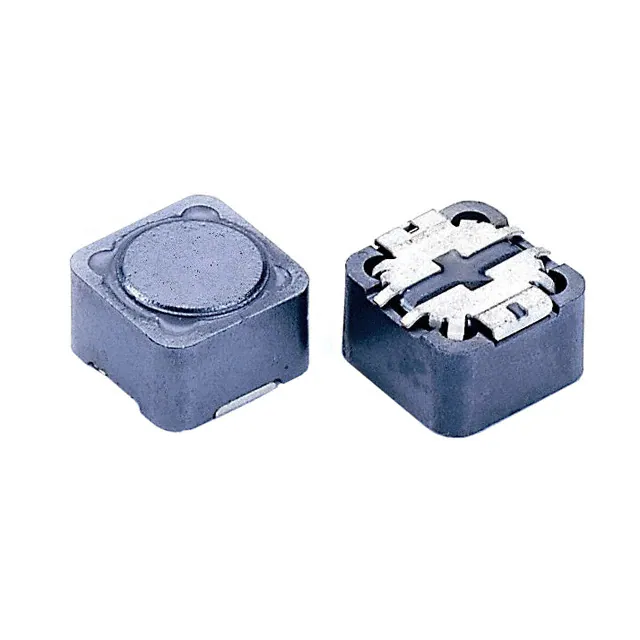

SCRH127-470FIXED IND 47UH 2.62A 100MOHM SMD Signal Transformer |
2,751 |
|
Таблицы данных |
SCRH127 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 2.62 A | 2.5A | Shielded | 100mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
SCIHP1367-3R3MFIXED IND 3.3UH 15A 6.8 MOHM SMD Signal Transformer |
5,949 |
|
Таблицы данных |
SCIHP1367 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 15 A | 29A | Shielded | 6.8mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.543" L x 0.508" W (13.80mm x 12.90mm) | 0.264" (6.70mm) |
|
HCTI-150-5.0FIXED IND 150UH 5A 71 MOHM TH Signal Transformer |
6,721 |
|
Таблицы данных |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 150 µH | ±15% | 5 A | - | Shielded | 71mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
HCTI-68-7.7FIXED IND 68UH 7.7A 30 MOHM TH Signal Transformer |
310 |
|
Таблицы данных |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 68 µH | ±15% | 7.7 A | - | Shielded | 30mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
HCTI-470-3.8FIXED IND 470UH 3.8A 130 MOHM TH Signal Transformer |
3,706 |
|
Таблицы данных |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 470 µH | ±15% | 3.8 A | - | Shielded | 130mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
HCTI-33-11.7FIXED IND 33UH 11.7A 13 MOHM TH Signal Transformer |
111 |
|
Таблицы данных |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 33 µH | ±15% | 11.7 A | - | Shielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
HCTI-270-5.5FIXED IND 270UH 5.5A 60 MOHM TH Signal Transformer |
838 |
|
Таблицы данных |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 270 µH | ±15% | 5.5 A | - | Shielded | 60mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
HCTI-22-16.4FIXED IND 22UH 16.4A 7 MOHM TH Signal Transformer |
6,686 |
|
Таблицы данных |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 22 µH | ±15% | 16.4 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
HCTI-56-10.2FIXED IND 56UH 10.2A 17 MOHM TH Signal Transformer |
1,089 |
|
Таблицы данных |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 56 µH | ±15% | 10.2 A | - | Shielded | 17mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
HCTI-390-5.0FIXED IND 390UH 5A 72 MOHM TH Signal Transformer |
1,538 |
|
Таблицы данных |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 390 µH | ±15% | 5 A | - | Shielded | 72mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
